This is on of the RoboBricks project panels. It is currently finished.

The RoboBricks Project Panel 5

The first panel contains the following modules:

The following files make up the panel:

panel5.gal
The RS274X (Gerber) artwork layer.
panel5.gbl
The RS274X (Gerber) back (solder) layer.
panel5.gtl
The RS274X (Gerber) top (component) layer.
panel5.gml
The RS274X (Gerber) solder mask layer.
panel5.drl
The drill (Excellon) file.
panel5.tol
The tool file.

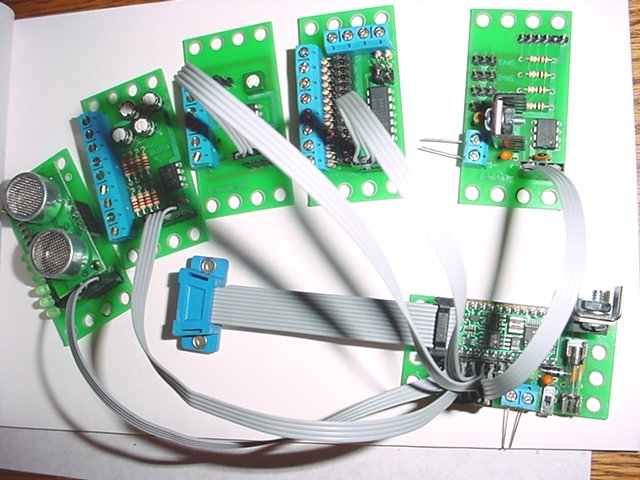

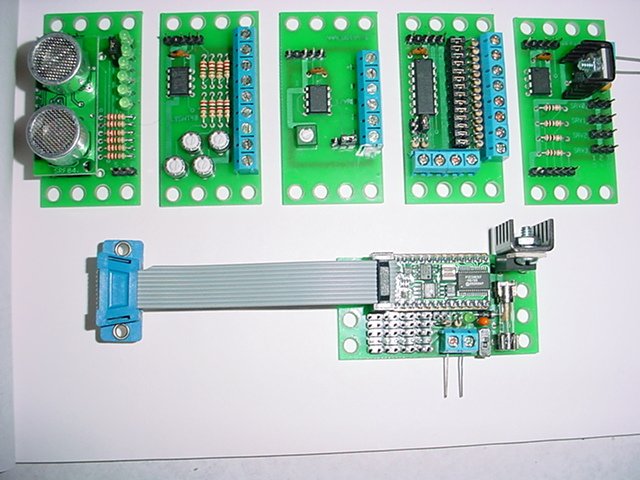

These are the RoboBrick built by William Hubbard from Panel 5:

Panel5 Bricks without Cables
Panel5 Bricks with Cables


Copyright (c) 2002 by Wayne C. Gramlich. All rights reserved.
