The InOut10 RoboBrick provides the ability to input and output 10 bits of data. The direction of each bit can be changed under program control.

2. Programming

The basic operation is to send a query to the In8 RoboBrick to read the 4 bits of data. The programmer can download a complement mask to cause any of the bits to be complemented prior to reading.

The In8 RoboBrick supports RoboBrick Interrupt Protocol. The interrupt pending bit is set whenever the the formula:

L&(~I) | H&I | R&(~P)&I | F&P&(~I)]
is non-zero, where: and Once the interrupt pending bit is set, it must be explicitly cleared by the user.

The In8 RoboBrick supports both the standard shared commands and the shared interrupt commands in addition to the following commands:

Command Send/
Receive
Byte Value Discussion
7 6 5 4 3 2 1 0
Read Inputs Low Send 0 0 0 0 0 0 0 0 Return low order 5-bits of input iiiii (after XOR'ing with complement mask)
Receive 0 0 0 i i i i i
Read Inputs High Send 0 0 0 0 0 0 0 1 Return high order 5-bits of input IIIII (after XOR'ing with complement mask)
Receive 0 0 0 I I I I I
Read Complement Mask Low Send 0 0 0 0 0 0 1 0 Return low order 5-bits of complement mask ccccc
Receive 0 0 0 c c c c c
Read Complement Mask High Send 0 0 0 0 0 0 1 1 Return high order 5 bits of complement mask CCCCC
Receive 0 0 0 C C C C C
Read Direction Mask Low Send 0 0 0 0 0 1 0 0 Return low order 5-bits of direction mask ddddd
Receive 0 0 0 d d d d d
Read Direction Mask High Send 0 0 0 0 0 1 0 1 Return high order 5 bits of direction mask DDDDD
Receive 0 0 0 D D D D D
Read Raw Low Send 0 0 0 0 0 1 1 0 Return low order 5-bits of raw input data rrrrr (without XOR'ing with complement mask)
Receive 0 0 0 r r r r r
Read Raw High Send 0 0 0 0 0 1 1 1 Return high order 5-bits of raw input data RRRRR (without XOR'ing with complement mask)
Receive 0 0 0 R R R R R
Read Low Mask Low Send 0 0 0 0 1 0 0 0 Return low order 5-bits of low mask lllll
Receive 0 0 0 l l l l l
Read Low Mask High Send 0 0 0 0 1 0 0 1 Return high order 5-bits of low mask LLLLL
Receive 0 0 0 L L L L L
Read High Mask Low Send 0 0 0 0 1 0 1 0 Return low order 5-bits of the high mask hhhhh
Receive 0 0 0 h h h h h
Read High Mask High Send 0 0 0 0 1 0 1 1 Return high order 5 bits of the high mask HHHHH
Receive 0 0 0 H H H H H
Read Raising Mask Low Send 0 0 0 0 1 1 0 0 Return low order 5-bits of the raising mask rrrrr
Receive 0 0 0 r r r r r
Read Raising Mask High Send 0 0 0 0 1 1 0 1 Return high order 5 bits of the raising mask RRRRR
Receive 0 0 0 R R R R R
Read Falling Mask Low Send 0 0 0 0 1 1 1 0 Return low order 5-bits of the falling mask fffff
Receive 0 0 0 f f f f f
Read Falling Mask High Send 0 0 0 0 1 1 1 1 Return high order 5-bits of the falling mask FFFFF
Receive 0 0 0 F F F F F
Read Outputs Low Send 0 0 0 1 0 0 0 0 Return low order 5-bits of the outputs ooooo
Receive 0 0 0 o o o o o
Read Outputs High Send 0 0 0 1 0 0 0 1 Return high order 5-bits of the outputs OOOOO
Receive 0 0 0 O O O O O
Set Complement Mask Low Send 0 0 0 1 0 0 1 0 Set low order 5-bits of complement mask to ccccc
Send 0 0 0 c c c c c
Set Complement Mask High Send 0 0 0 1 0 0 1 1 Set high order 5 bits of complement mask to CCCCC
Send 0 0 0 C C C C C
Set Direction Mask Low Send 0 0 0 1 0 1 0 0 Set low order 5-bits of direction mask to ddddd 1=input; 0=output
Send 0 0 0 d d d d d
Set Direction Mask High Send 0 0 0 1 0 1 0 1 Set high order 5 bits of direction mask of DDDDD 1=input; 0=output
Send 0 0 0 D D D D D
Reset Outputs Send 0 0 0 1 0 1 1 0 Set all 10 bits of outputs to 0
Reset Everything Send 0 0 0 1 0 1 1 1 Reset all registers to 0 and set direction bits to 1 (input)
Set Low Mask Low Send 0 0 0 1 1 0 0 0 Set low order 5-bits of low mask to lllll
Send 0 0 0 l l l l l
Set Low Mask High Send 0 0 0 1 1 0 0 1 Set high order 5-bits of low mask to LLLLL
Send 0 0 0 L L L L L
Set High Mask Low Send 0 0 0 1 1 0 1 0 Set low order 5-bits of the high mask to hhhhh
Send 0 0 0 h h h h h
Set High Mask High Send 0 0 0 1 1 0 1 1 Set high order 5 bits of the high mask to HHHHH
Send 0 0 0 H H H H H
Set Raising Mask Low Send 0 0 0 1 1 1 0 0 Set low order 5-bits of the raising mask to rrrrr
Send 0 0 0 r r r r r
Set Raising Mask High Send 0 0 0 1 1 1 0 1 Set high order 5 bits of the raising mask to RRRRR
Send 0 0 0 R R R R R
Set Falling Mask Low Send 0 0 0 1 1 1 1 0 Set low order 5-bits of the falling mask to fffff
Send 0 0 0 f f f f f
Set Falling Mask High Send 0 0 0 1 1 1 1 1 Set high order 5-bits of the falling mask to FFFFF
Send 0 0 0 F F F F F
Set Outputs Low Send 0 0 1 o o o o o Set low order 5-bits to ooooo
Set Outputs High Send 0 1 0 O O O O O Set high order 5-bits to OOOOO
Set Output Bit Send 0 1 1 v b b b b Set output bit bbbb to v
Read Interrupt Bits Send 1 1 1 0 1 1 1 1 Return the interrupt pending bit p and the interrupt enable bit e.
Receive 0 0 0 0 0 0 e p
Set Interrupt Commands Send 1 1 1 1 0 c c c Set Interrupt Command ccc.
Shared Commands Send 1 1 1 1 1 c c c Execute Shared Command ccc.

3. Hardware

The hardware consists of a circuit schematic and a printed circuit board.

3.1 Circuit Schematic

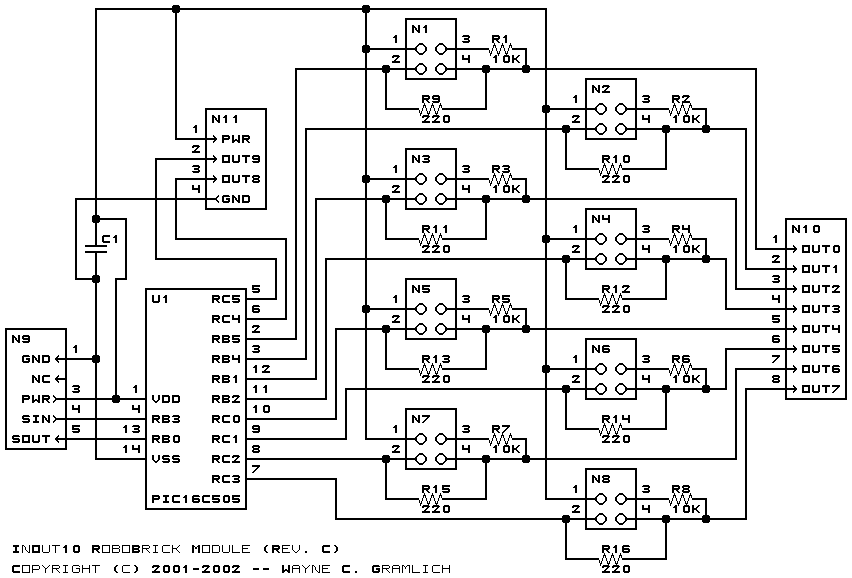

The schematic for the InOut10 RoboBrick is shown below:

InOut10 Schematic

The parts list kept in a separate file -- inout10.ptl.

3.2 Printed Circuit Board

The printed circuit files are listed below:

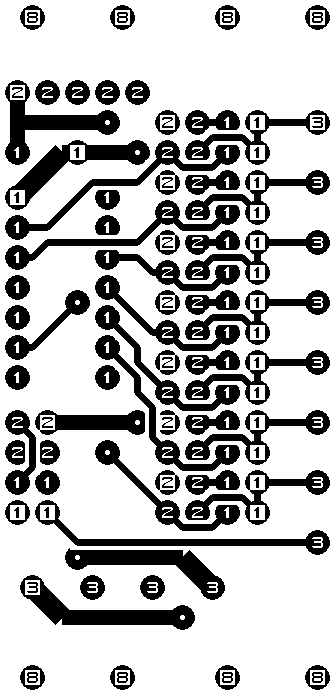

The solder side layer.

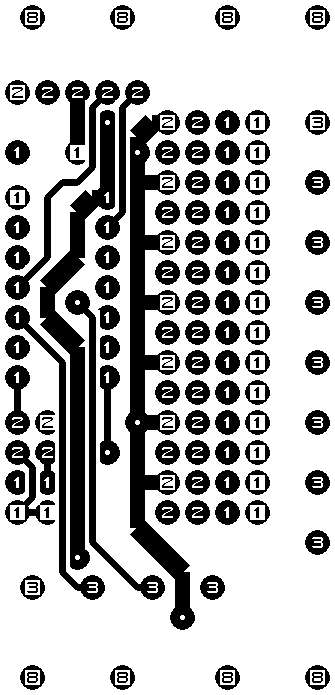

The component side layer.

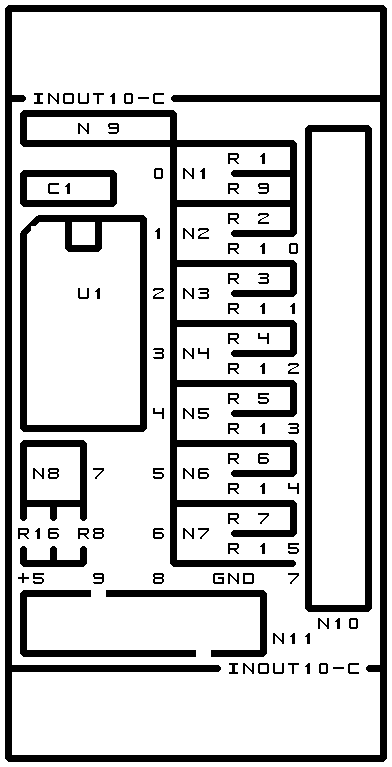

The artwork layer.
inout10.gbl
The RS-274X "Gerber" back (solder side) layer.
inout10.gtl
The RS-274X "Gerber" top (component side) layer.
inout10.gal
The RS-274X "Gerber" artwork layer.
inout10.drl
The "Excellon" NC drill file.
inout10.tol
The "Excellon" tool rack file.

3.3 Construction Instructions

The construction Instructions are located in a separate file to be a little more printer friendly.

4. Software

The InOut10 software is available as one of:

inout10.ucl
The µCL source file.
inout10.asm
The resulting human readable PIC assembly file.
inout10.lst
The resulting human readable PIC listing file.
inout10.hex
The resulting Intel® Hex file that can be fed into a PIC12C5xx programmer.

The InOut10 test suite is available as one of:

inout10_test.ucl
The µCL source file.
inout10_test.asm
The resulting human readable PIC assembly file.
inout10_test.lst
The resulting human readable PIC listing file.
inout10_test.hex
The resulting Intel® Hex file that can be fed into a PIC16F84 programmer.

5. Issues

The following fabrication issues came up:
