STIPPLE Overview

The STIPPLE Compiler and Linker

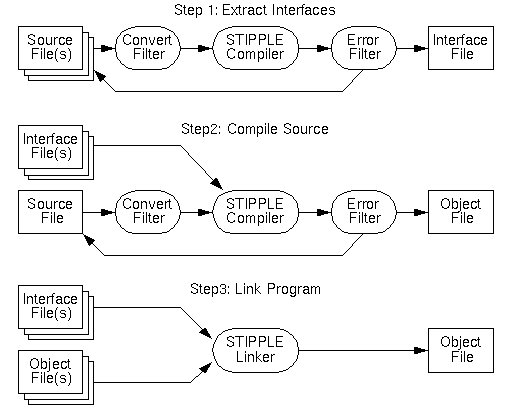

The steps involved in converting STIPPLE source code into an executable are shown below:

  Translating STIPPLE Source into an Executable


Interface Extractaction

Each source file is run through the compiler to produce a corresponding interface file. This step is repeated until all source files have corresponding interface files.

Object File Compilation

Each source file is run through the compiler along with any needed interface files to produce a single object file. This step is repeated until all source files have an associated object file.

Linking

All of the interface and object files are run through the STIPPLE linker to generate a single executable.

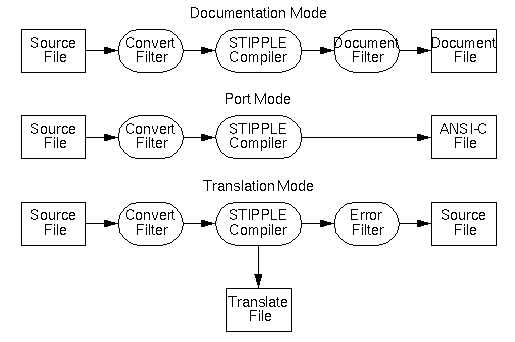

  Additional Compiler Modes


Documentation mode.

In documentation mode, the compiler takes a source file and produces interface documentation.

Porting mode.

In porting mode, the compiler takes a source file and emits an ANSI-C source file that corresponds to the source.

Translation mode.

In translate mode, the compiler takes a source file and a translation table file and produces a translated version of the source code and updates the translation table file. Thus, source code written in English can be translated into French and vice versa.

Basic Data Model

• base objects (i.e. integers, characters, etc.),
• composite objects i.e. arrays, structures, variants, etc.), or
• routine objects (i.e. procedures or iterators.)

There is a one-to-one correspondence between routine objects and the code that implements them. In STIPPLE, there are two kinds of routines -- procedures and iterators. Procedures implement the standard abstraction of subroutines and functions. Iterators implement an abstract looping capability (see Why have iterators.)

Routines have two kinds of variables - argument variables, which contain the values passed into the procedure by the caller, and local variables, which contain temporary values used by the procedure. Both kinds of variables only contain a pointers to objects. Each variable is strongly typed and is only permitted to point to objects of the same strong type. All routine variables are initialized when a procedure is called. The argument variables are initialized from values supplied by the caller. All local variables are initialized to point to an appropriate initial object (initial objects are described shortly.)

Composite objects consist of collections of pointers to other objects. Like variables, each of the pointers in a composite object has a strong type and is only permitted to point to objects of the same strong type. Also, like local variables, when a composite object is created, all of its pointers are initialized to point to the appropriate initial objects (initial objects are described in the next paragraph.)

For each distinct object type, there is exactly one instance of the object type that is called the initial object. Since all variables and fields inside of composite objects are initialized to point to the appropriate initial object, STIPPLE has no need for NULL pointers (see Why initial objects.)

While you might expect initial objects to be read-only (immutable), it turns out that they are object just like any other object. While modifying initial objects is considered poor practice, there is no way for STIPPLE to enforce read-only initial objects.

STIPPLE's variable and composite object initialization strategy, in conjunction with garbage collection and infinite recursion detection, ensures referential integrity for programs written entirely in STIPPLE. Thus, a pure STIPPLE program can not `dump core.'

A STIPPLE program is logically decomposed into a sequence routine invocations and simple assignments. A simple assignment assigns the result of an expression evaluation to a variable. For example,

	a := b + c


	a := add@signed32(b, c)


Similarly,

	d[e] := f + g


	store1@vector[signed32](d, e, add@signed32(f, g))

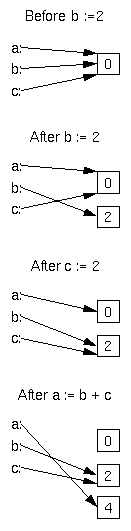

	b := 2
	c : = 2
	a := b + c


  Simple assignments example


It should be noted that there is an implementation technique that permits the STIPPLE compiler to store the actual integer values in the variables, rather than pointers to the values. Despite this implementation technique, it must be emphasized that conceptually the STIPPLE data model always stores pointers to objects in variables.

STIPPLE Types

Base Types

logical

logical value {true@logical, false@logical}

integer

32-bit signed integer {-2147483648 ... 2147483647}

unsgined

32-bit unsigned integer {0 ... 4294967295}

character

32-bit character

float

32-bit floating point number

string

Variable length string of characters. The string implementation is very efficient at storing strings of 8-bit and 16-bit charcters.

{64-bit types and complex numbers need to be added.}

With the exception of the string type, all STIPPLE base types are immutable. An immutable type is one where the internal object state can not be changed by any operation. Conversely, a mutable type is one where the internal state of an object can be changed via some operation. Thus, immutable objects are read-only and mutable ones are read-write. The only base type that is mutable is the string base type.

All of the floating point number type operations have overflow and underflow detection; whereas the integer base type operations do not have either.

Giving a Type a New Name

identical

The new type is indistinguishable from the old type (e.g. length and width.)

synonym

The new type has all the same operations as the old type, but is a distinct type that requires conversion to be used with the old type. (e.g. apples and oranges.)

Constrained Types

enumeration

An ordered sequence of named items. (e.g. {red, green, blue})

range

A constrained range of objects. (e.g. {-1 º 1})

{Range types have not been implemented yet.}

Range types can be constructed from any type that supports the less_than and greater_than ordering operators. This includes all base types and enumeration types. User defined types that define the ordering operators are also permitted in range constructors. All range types constructed from immutable types are themselves immutable; conversely, range types constructed from mutable types are themselves mutable.

Composite types

record

A named sequence of typed fields.

variant

A tagged variant.

Parameterized types

The notation for parameterization is to enclose type parameters in square brackets. For example,

vector[integer]

The type vector parameterized with the type integer.

vector[float]

The type vector parameterized with the type float.

vector[vector[integer]]

The type vector parameterized with the type vector[integer].

table[character, integer]

The type table parameterized with the types character and integer.

table[integer, vector[integer]]

The type table parameterized with types integer and vector[integer].

The reason for introducing parameterization here is so that type equality can be properly defined in the type equality section below.

Routine types

This section has some example declarations of STIPPLE declarations. It should be noted that STIPPLE uses indentation to indicate nesting as described in the lexical issues chapter. In STIPPLE, all procedure objects have a strong type called a signature. A procedure signature is derived from its definition by removing the procedure name and argument names, and alphabetizing both the signal and needs names. For example, the most complicated routine declaration is a parameterized iterator with exceptions as shown below:9

    procedure name iterator[parameter1, ..., parametern]
	takes
	    arg_name1 arg_type1
	    arg_namen arg_type2
	    ...
	yields yield_type1, yield_type2, ...
	returns return_type1, return_type2, ...
	signals
	    signal_name1 signal_type11, signal_type12, ...
	    signal_name2 signal_type21, signal_type22, ...
	    ...
	needs
	    needs_name1 needs_type1
	    needs_name2 needs_type2
	    ...


    iterator
	takes arg_type1, arg_type2, ...
	yields yield_type1, yield_type2, ...
	returns return_type1, return_type2,
	signals
		signal_name1 signal_type11, signal_type12, ...
		signal_name2 signal_type21, ..., signal_type22, ...
		...
	needs
		needs_name1 needs_type1
		needs_name2 needs_type2
		...


Type Equality and Conformance

Two routine types are equal if they have exactly the same signature. Two non-routine types are conformant if they are equal or there is a chain of identical declarations that make the types equal. A routine type A is conformant with a routine type B, if all of the types in A are conformant with B and every signal in A is also defined in B.

{Ends too abruptly}
