Led4 Robobrick (Revision B)

This document is also available in PDF format.

1. Introduction
2. Programming
3. Hardware
- 3.1 Circuit Schematic
- 3.2 Printed Circuit Board
4. Software
5. Issues

1. Introduction

The LED4 RoboBrick provides the ability to output 4 bits of data to 4 on board Light Emitting Diodes.

2. Programming

The LED4 RoboBrick supports the standard shared commands in addition to the following commands:

Command Send/
Receive Byte Value Discussion
7 6 5 4 3 2 1 0
Write All Send 0 0 0 0 a b c d Write abcd out to LED's.
Bit Clear Send 0 0 0 1 0 0 b b Turn LED bb off.
Bit Set Send 0 0 0 1 0 1 b b Turn LED bb on.
Bit Toggle Send 0 0 0 1 1 0 b b Toggle LED bb.
Bit Read Send 0 0 0 1 1 1 b b Read status of LED bb.
Receive 0 0 0 0 r r r b LED state is b. Blink rate is rrr
Blink Rate Set Send 0 0 1 r r r b b Set LED bb blink rate to rrr; On (rrr=000); Slow (rrr=001)
Mediaum (rrr=100) Fast=(rrr=11)
Read All Send 0 1 0 0 0 0 0 0 Read status of all LED's.
Receive 0 0 0 0 a b c d Current LED state is abcd
Increment LED's Send 0 1 0 0 0 1 b b Increment LED's starting at bit bb
Decrement LED's Send 0 1 0 0 1 0 b b Decrement LED's starting at bit bb
Shared Commands Send 1 1 1 1 1 a b c Send shared command abc to RoboBrick.

Command	Send/ Receive	Byte Value	Discussion
7	6	5	4	3	2	1	0
Write All	Send	0	0	0	0	a	b	c	d	Write abcd out to LED's.
Bit Clear	Send	0	0	0	1	0	0	b	b	Turn LED bb off.
Bit Set	Send	0	0	0	1	0	1	b	b	Turn LED bb on.
Bit Toggle	Send	0	0	0	1	1	0	b	b	Toggle LED bb.
Bit Read	Send	0	0	0	1	1	1	b	b	Read status of LED bb.
Receive	0	0	0	0	r	r	r	b	LED state is b. Blink rate is rrr
Blink Rate Set	Send	0	0	1	r	r	r	b	b	Set LED bb blink rate to rrr; On (rrr=000); Slow (rrr=001) Mediaum (rrr=100) Fast=(rrr=11)
Read All	Send	0	1	0	0	0	0	0	0	Read status of all LED's.
Receive	0	0	0	0	a	b	c	d	Current LED state is abcd
Increment LED's	Send	0	1	0	0	0	1	b	b	Increment LED's starting at bit bb
Decrement LED's	Send	0	1	0	0	1	0	b	b	Decrement LED's starting at bit bb
Shared Commands	Send	1	1	1	1	1	a	b	c	Send shared command abc to RoboBrick.

3. Hardware

The hardware consists of a circuit schematic and a printed circuit board.

3.1 Circuit Schematic

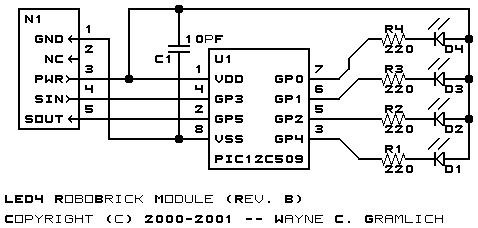

The schematic for the Led4 RoboBrick is shown below:

The parts list kept in a separate file -- led4.ptl.

3.2 Printed Circuit Board

The printed circuit board files are listed below:

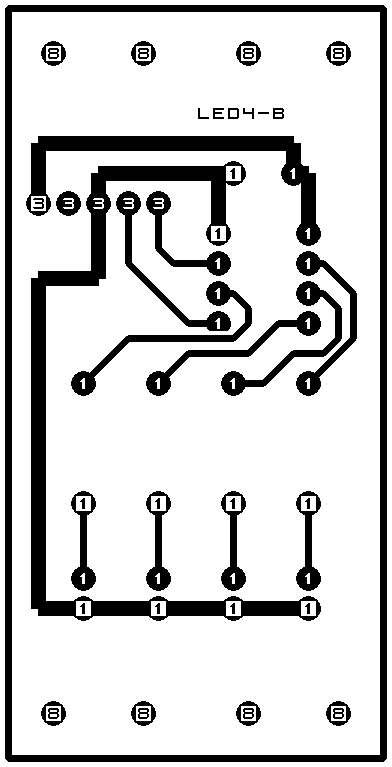

led4_back.png: The solder side layer.

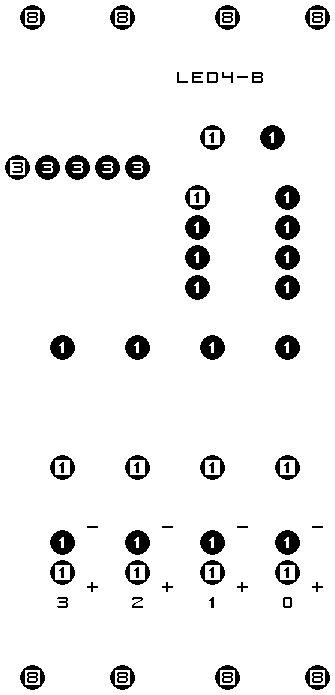

led4_front.png: The component side layer.

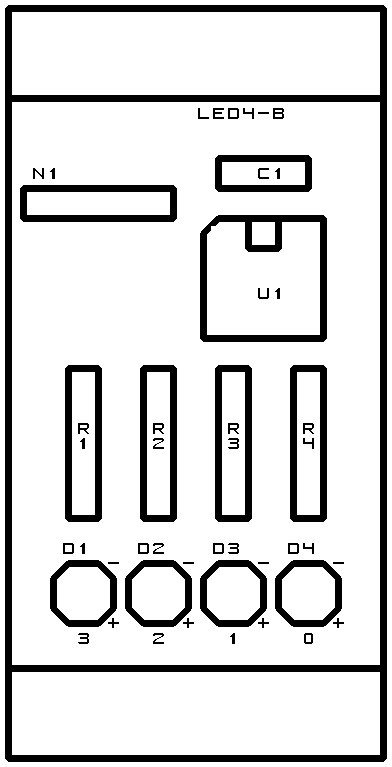

led4_artwork.png: The artwork layer.
led4.gbl: The RS-274X "Gerber" back (solder side) layer.
led4.gtl: The RS-274X "Gerber" top (component side) layer.
led4.gal: The RS-274X "Gerber" artwork layer.
led4.drl: The "Excellon" NC drill file.
led4.tol: The "Excellon" tool rack file.

4. Software

The Led4 software is available as one of:

led4.ucl: The µCL source file.
led4.asm: The resulting human readable PIC assembly file.
led4.lst: The resulting human readable PIC listing file.
led4.hex: The resulting Intel^® Hex file that can be fed into a PIC12C5xx programmer.

The Led4 test swuite is available as one of:

led4_test.ucl: The µCL source file.
led4_test.asm: The resulting human readable PIC assembly file.
led4_test.lst: The resulting human readable PIC listing file.
led4_test.hex: The resulting Intel^® Hex file that can be fed into a PIC16F84 programmer.

5. Issues

The fabrication issues that came up are:

The holes in N1 are too large (size 3) and should be made smaller (size 2.)
Think about putting lettering above the LED's.
Put the word "TOP" on the top of the board and "BOTTOM" on the bottom of the board.
Think about adding a switch to turn the LED's on or off to reduce power consumption.
