Led4 Robobrick (Revision A)

This document is also available in PDF format.

1. Introduction
2. Programming
3. Hardware
- 3.1 Circuit Schematic
- 3.2 Printed Circuit Board
4. Software
5. Issues

1. Introduction

The LED4 RoboBrick provides the ability to output 4 bits of data to 4 on board Light Emitting Diodes.

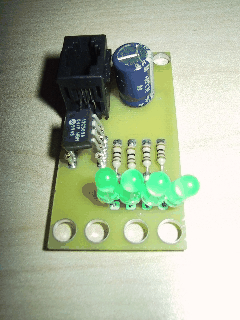

A picture of a LED4-A RoboBrick is shown below:

2. Programming

The LED4 RoboBrick supports the standard shared commands in addition to the following commands:

Command Send/
Receive Byte Value Discussion
7 6 5 4 3 2 1 0
Write All Send 0 0 0 0 a b c d Write abcd out to LED's.
Bit Clear Send 0 0 0 1 0 0 b b Turn LED bb off.
Bit Set Send 0 0 0 1 0 1 b b Turn LED bb on.
Bit Toggle Send 0 0 0 1 1 0 b b Toggle LED bb.
Bit Read Send 0 0 0 1 1 1 b b Read status of LED bb.
Receive 0 0 0 0 r r r b LED state is b. Blink rate is rrr
Blink Rate Set Send 0 0 1 r r r b b Set LED bb blink rate to rrr; On (rrr=000); Slow (rrr=001)
Mediaum (rrr=100) Fast=(rrr=11)
Read All Send 0 1 0 0 0 0 0 0 Read status of all LED's.
Receive 0 0 0 0 a b c d Current LED state is abcd
Increment LED's Send 0 1 0 0 0 1 b b Increment LED's starting at bit bb
Decrement LED's Send 0 1 0 0 1 0 b b Decrement LED's starting at bit bb
Shared Commands Send 1 1 1 1 1 a b c Send shared command abc to RoboBrick.

Command	Send/ Receive	Byte Value	Discussion
7	6	5	4	3	2	1	0
Write All	Send	0	0	0	0	a	b	c	d	Write abcd out to LED's.
Bit Clear	Send	0	0	0	1	0	0	b	b	Turn LED bb off.
Bit Set	Send	0	0	0	1	0	1	b	b	Turn LED bb on.
Bit Toggle	Send	0	0	0	1	1	0	b	b	Toggle LED bb.
Bit Read	Send	0	0	0	1	1	1	b	b	Read status of LED bb.
Receive	0	0	0	0	r	r	r	b	LED state is b. Blink rate is rrr
Blink Rate Set	Send	0	0	1	r	r	r	b	b	Set LED bb blink rate to rrr; On (rrr=000); Slow (rrr=001) Mediaum (rrr=100) Fast=(rrr=11)
Read All	Send	0	1	0	0	0	0	0	0	Read status of all LED's.
Receive	0	0	0	0	a	b	c	d	Current LED state is abcd
Increment LED's	Send	0	1	0	0	0	1	b	b	Increment LED's starting at bit bb
Decrement LED's	Send	0	1	0	0	1	0	b	b	Decrement LED's starting at bit bb
Shared Commands	Send	1	1	1	1	1	a	b	c	Send shared command abc to RoboBrick.

3. Hardware

The hardware consists of a circuit schematic and a printed circuit board.

3.1 Circuit Schematic

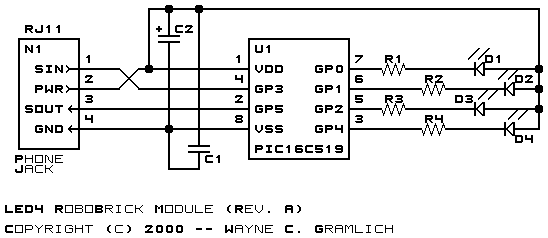

The schematic for the Led4 RoboBrick is shown below:

The parts list kept in a separate file -- led4.ptl.

3.2 Printed Circuit Board

The printed circuit board files are listed below:

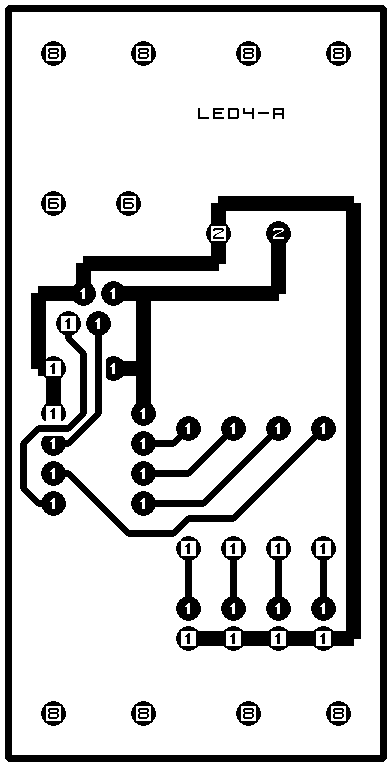

led4_back.png: The solder side layer.

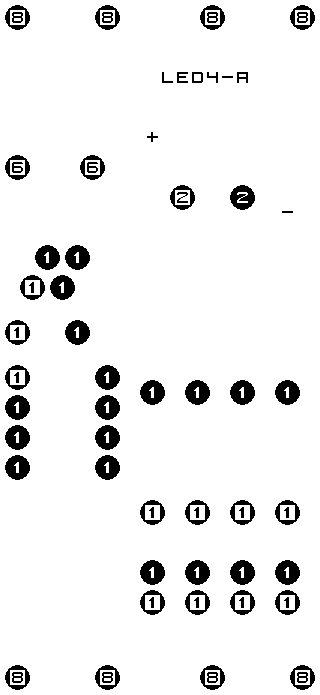

led4_front.png: The component side layer.

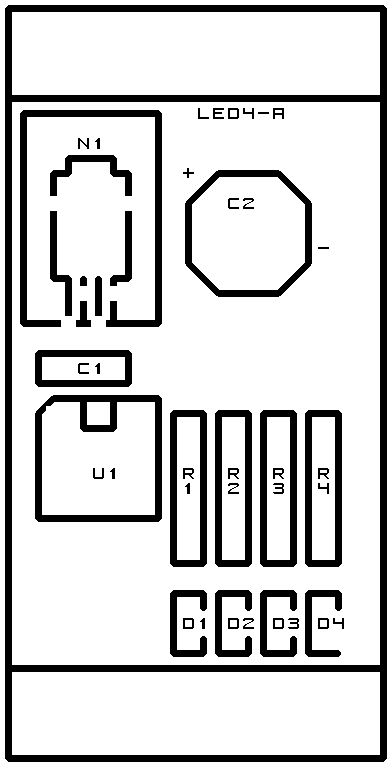

led4_artwork.png: The artwork layer.
led4.gbl: The RS-274X "Gerber" back (solder side) layer.
led4.gtl: The RS-274X "Gerber" top (component side) layer.
led4.gal: The RS-274X "Gerber" artwork layer.
led4.drl: The "Excellon" NC drill file.
led4.tol: The "Excellon" tool rack file.

4. Software

The Led4 software is available as one of:

led4.ucl: The µCL source file.
led4.asm: The resulting human readable PIC assembly file.
led4.lst: The resulting human readable PIC listing file.
led4.hex: The resulting Intel^® Hex file that can be fed into a PIC12C5xx programmer.

The Led4 test swuite is available as one of:

led4_test.ucl: The µCL source file.
led4_test.asm: The resulting human readable PIC assembly file.
led4_test.lst: The resulting human readable PIC listing file.
led4_test.hex: The resulting Intel^® Hex file that can be fed into a PIC16F84 programmer.

5. Issues

The following issues where encounterd with the revision A versions of the LED4 board:

The LED's are too close together. They need to be spread apart.
Switch over to a 6-wire bus.
Label the LED's in copper.
Place a plus sign next to the positive lead of the LED's.
Place a "1" next to pin 1 of the PIC.
Think about reversing the LED wires.
