This is the Revision F verion of the LED10 module. The status of this project is work in progress.
This document is also available in PDF format.
The LED10 module provides the ability to output 10 bits of data to 10 LED's on board.
The Led4 Module supports the standard shared commands in addition to the following commands:
Command Send/Receive Byte Value Discussion 7 6 5 4 3 2 1 0 Write Lower Send 0 0 0 f g h i j Write fghij out to the lower 5 LED's. Write Upper Send 0 0 1 a b c d e Write abcde out to the upper 5 LED's. Bit Clear Send 0 1 0 0 b b b b Turn LED bbbb off.
MSB (bbbb=1001) LSB (bbbb=0000)Bit Set Send 0 1 0 1 b b b b Turn LED bbbb on. Bit Toggle Send 0 1 1 0 b b b b Toggle LED bbbb. Bit Read Send 0 1 1 1 b b b b Read status of LED bb. Receive r r r 0 0 0 0 b LED state is b. Blink rate is rrr Read All Send 1 0 0 0 0 0 0 0 Read all ten LED's. Receive 0 0 0 a b c d e Upper five LED state is abcde Receive 0 0 0 f g h i j Lower five LED state is fghij Read Lower Send 1 0 0 0 0 0 0 1 Read lower five LED's. Receive 0 0 0 f g h i j Lower five LED state is fghij Read Upper Send 1 0 0 0 0 0 1 0 Read upper five LED's. Receive 0 0 0 a b c d e Upper five LED state is abcde Blink Rate Set Send 1 0 0 0 0 0 1 1 Set Blink Rate Send r r r 0 b b b b Set LED bbbb blink rate to rrr.
On (rrr=000) Slow (rrr=001)
Medium(rrr=100) Fast (rrr=111)Increment LED's Send 1 0 0 1 b b b b Increment LED's starting at bit bbbb Decrement LED's Send 1 0 1 0 b b b b Decrement LED's starting at bit bbbb Power Level Mode Send 1 0 1 1 l l l l Set LED's to power level llll;
All off (llll=000), All on (llll>=1010)Shared Commands Send 1 1 1 1 1 a b c Send shared command abc to Module.
The hardware consists of a circuit schematic and a printed circuit board.

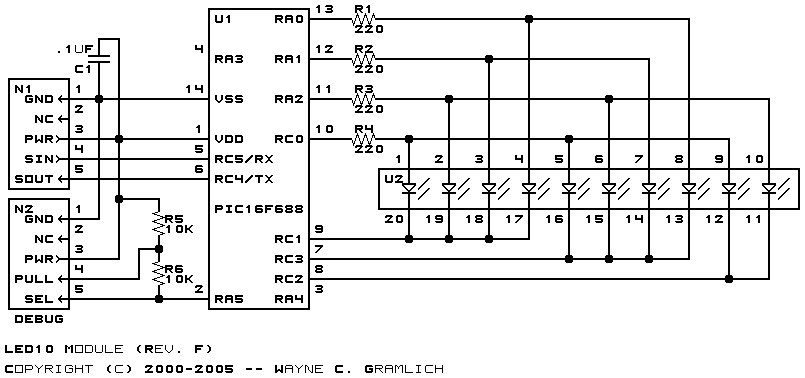

The schematic for the Led10 Module is shown below:
The parts list kept in a separate file -- led10.ptl.

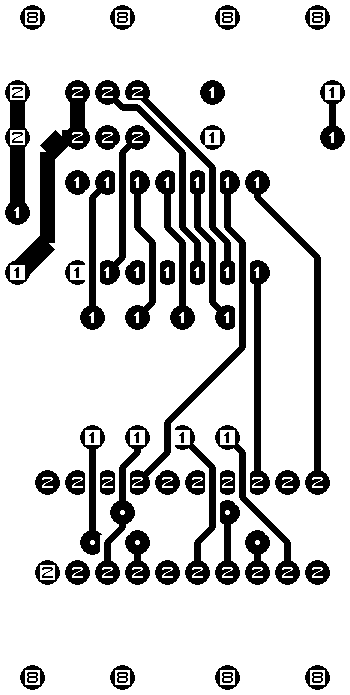

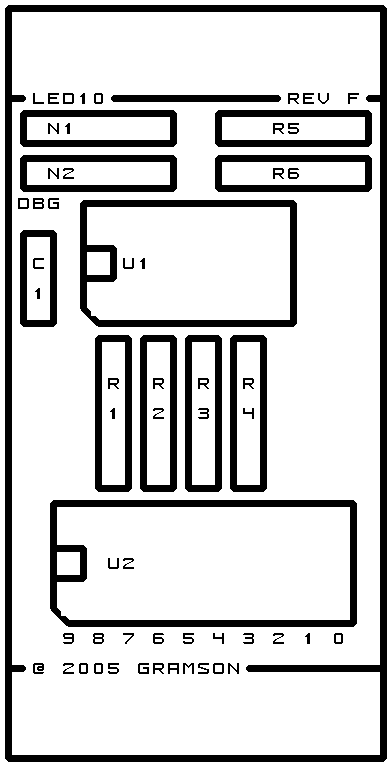

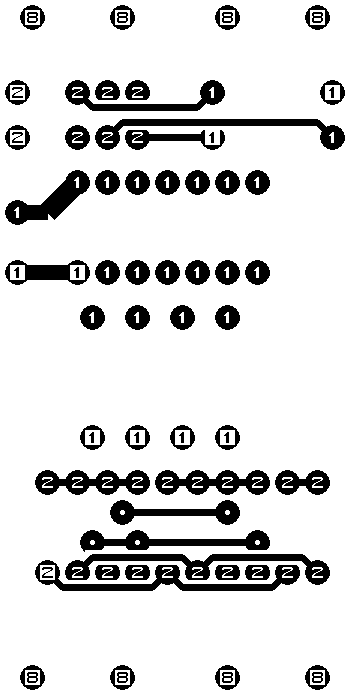

The printed circuit board files are listed below:
The Led10 software is available as one of:
Any fabrication issues are listed here.
