IRDistanceHolder Module (Revision A)

Table of Contents

This document is also available in PDF format.

• 1. Introduction
• 2. Hardware
  • 2.1 Circuit Schematic
  • 2.2 Printed Circuit Board
• 3. Issues

1. Introduction

The IRDistanceHolder Module is used to connect operate one Sharp^® GP2D12 IROD (InfraRed Optical Distance) measuring sensor to an IR Distance module.

2. Hardware

The hardware consists of a circuit schematic and a printed circuit board.

2.1 Circuit Schematic

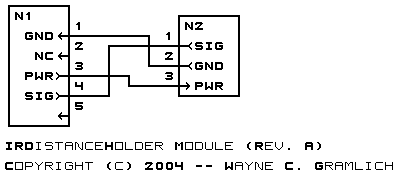

The schematic for the IRDistanceHolder Module is shown below:

The parts list kept in a separate file -- irdistanceholder.ptl.

2.2 Printed Circuit Board

The printed circuit board files are listed below:

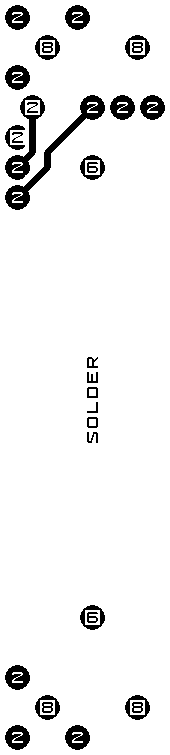

The solder side layer.

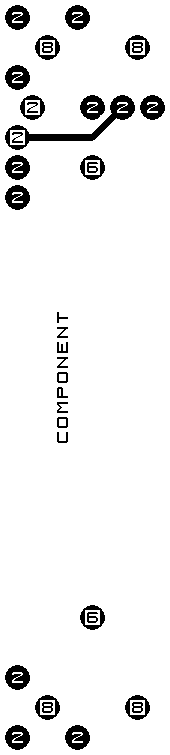

The component side layer.

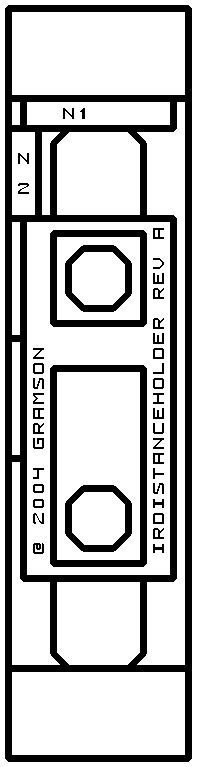

The artwork layer.

irdistanceholder.gbl

The RS-272X "Gerber" back (solder side) layer.

irdistanceholder.gtl

The RS-272X "Gerber" top (component side) layer.

irdistanceholder.gal

The RS-272X "Gerber" artwork layer.

irdistanceholder.drl

The "Excellon" NC drill file.

irdistanceholder.tol

The "Excellon" tool rack file.

3. Issues

Any fabrication issues will be listed here.
