This is the Revision A verion of the AnalogIn4 RoboBrick. The status of this project is finished. This revision has been replaced by the Revision B version of this RoboBrick.

AnalogIn4 Robobrick (Revision A)

Table of Contents

This document is also available in PDF format.

1. Introduction

The AnalogIn4 RoboBrick allows for the input of up to 4 analog voltages between 0 and 5 volts with a resolution of 8 bits.

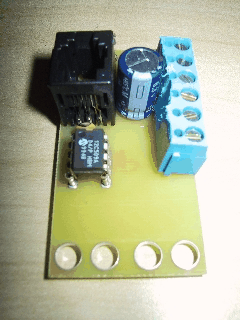

A picture of the AnalogIn4-A RoboBrick is shown below:

Picture of AnalogIn4-A

2. Programming

The AnalogIn4 RoboBrick is continuously reading the analog inputs from its four A/D pins. The controlling program can just read the results of the digital conversion, or it can have the result down converted into a single binary bit. Each pin has has a threshold high and threshold low register that is used for the down conversion. Whenever the digital conversion exceeds the high threshold register, the down coversion results in a 1. Whenever the digital conversion is lower than the low threshold register, the down conversion results in a 0. A hysterisis effect can be introduced by having some spread between the high and low threshold values.

After the down coversions to binary bits, the result is 4-bits of binary data. A complement mask can be used to selectively invert individual bits in the 4-bit data.

The AnalogIn4 RoboBrick supports RoboBrick Interrupt Protocol for those lines that are being used as inputs. The interrupt pending bit is set whenever the the formula:

L&(~I) | H&I | R&(~P)&I | F&P&(~I)
is non-zero, where: and Once the interrupt pending bit is set, it must be explicitly cleared by the user.

In addition to the common shared commands and the shared interrupt commands, the AnalogIn4 RoboBrick supports following commands:

Read Pin
Read the 8-bit value for a particular pin.
Read Binary Values
Read and return the down convert binary values (after XOR'ing with complement mask.)
Read Raw Binary
Read and return the raw binary values without applying the complement mask.
Read Complement Mask
Read and return the complement mask.
Read High Mask
Read and return the high mask.
Read Low Mask
Read and return the low mask.
Read Raising Mask
Read and return the raising mask.
Read Falling Mask
Read and return the falling mask.
Set High Threshold
Set high threshold for a specified pin.
Set Low Threshold
Set low threshold for a specified pin.
Read High Threshold
Read and return high threshold for a specified pin.
Read Low Threshold
Read and return low theshold for a specified pin.
Set Complement Mask
Set the complement mask.
Set High Mask
Set the high mask.
Set Low Mask
Set the low mask.
Set Raising Mask
Set the raising mask.
Set Falling Mask
Set the falling mask.
These commands are summarized in the table below:
Command Send/
Receive
Byte Value Discussion
7 6 5 4 3 2 1 0
Read Pin Send 0 0 0 0 0 0 b b Read pin bb and respond with 8-bit value vvvvvvvv
Send v v v v v v v v
Read Binary Values Send 0 0 0 0 0 1 0 0 Return the binary values abcd (after XOR'ing with complement mask)
Receive 0 0 0 0 a b c d
Read Raw Binary Send 0 0 0 0 0 1 0 1 Return the raw binary values abcd (no XOR with complement mask)
Receive 0 0 0 0 a b c d
Read Complement Mask Send 0 0 0 0 1 0 0 0 Return and return the complement mask cccc
Receive 0 0 0 0 c c c c
Read High Mask Send 0 0 0 0 1 0 0 1 Return and return the high mask hhhh
Receive 0 0 0 0 h h h h
Read Low Mask Send 0 0 0 0 1 0 1 0 Return and return the high mask llll
Receive 0 0 0 0 l l l l
Read Raising Mask Send 0 0 0 0 1 0 1 1 Return and return the raising mask rrrr
Receive 0 0 0 0 r r r r
Read Falling Mask Send 0 0 0 0 1 1 0 0 Return and return the falling mask ffff
Receive 0 0 0 0 f f f f
Read High Threshold Send 0 0 0 1 0 0 b b Read and return high threshold for pin bb of hhhhhhhh
Receive h h h h h h h h
Read Low Threshold Send 0 0 0 1 0 1 b b Read and return low threshold for pin bb of llllllll
Receive l l l l l l l l
Set High Threshold Send 0 0 0 1 1 0 b b Set high threshold for pin bb to hhhhhhhh
Send h h h h h h h h
Set Low Threshold Send 0 0 0 1 1 1 b b Set low threshold for pin bb to llllllll
Send l l l l l l l l
Set Complement Mask Send 0 0 1 0 c c c c Set complement mask to cccc
Set High Mask Send 0 1 0 0 h h h h Set high mask to hhhh
Set Low Mask Send 0 1 0 1 l l l l Set low mask to llll
Set Raising Mask Send 0 1 1 0 r r r r Set raising mask to rrrr
Set Falling Mask Send 0 1 1 1 f f f f Set falling mask to ffff
Read Interrupt Bits Send 1 1 1 0 1 1 1 1 Return the interrupt pending bit p and the interrupt enable bit e.
Receive 0 0 0 0 0 0 e p
Set Interrupt Commands Send 1 1 1 1 0 c c c Set Interrupt Command ccc.
Shared Commands Send 1 1 1 1 1 c c c Execute common shared command ccc

3. Hardware

The hardware consists of a circuit schematic and a printed circuit board.

3.1 Circuit Schematic

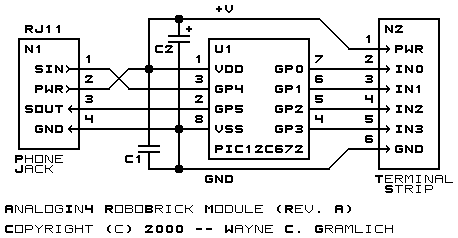

The schematic for the AnalogIn4 RoboBrick is shown below:

AnalogIn4 Schematic

The parts list kept in a separate file -- analogin4.ptl.

3.2 Printed Circuit Board

The printed circuit board files are listed below:

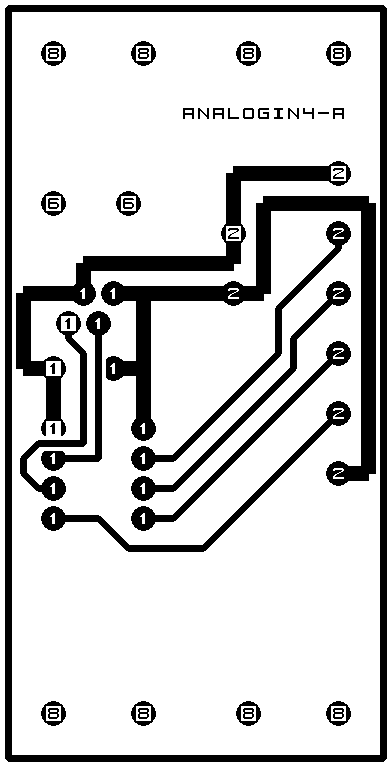

The solder side layer.

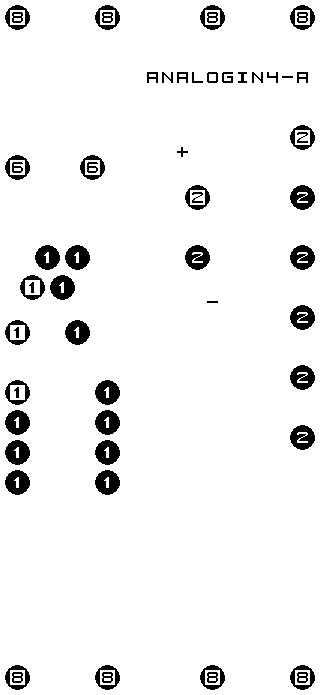

The component side layer.

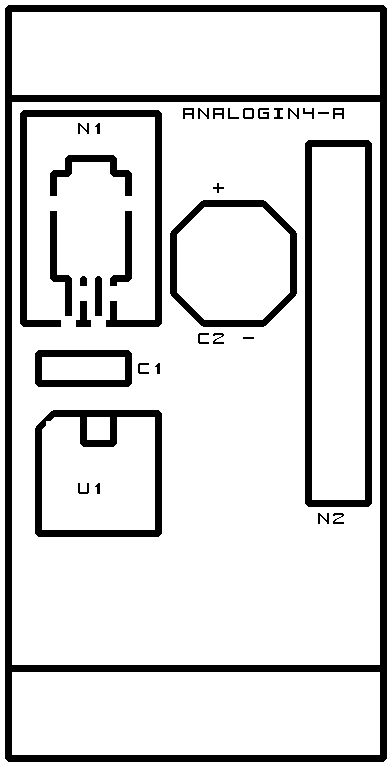

The artwork layer.
analogin4.gbl
The RS-274X "Gerber" back (solder side) layer.
analogin4.gtl
The RS-274X "Gerber" top (component side) layer.
analogin4.gal
The RS-274X "Gerber" artwork layer.
analogin4.drl
The "Excellon" NC drill file.
analogin4.tol
The "Excellon" tool rack file.

4. Software

The AnalogIn4 software is available as one of:

analogin4.ucl
The µCL source file.
analogin4.asm
The resulting human readable PIC assembly file.
analogin4.lst
The resulting human readable PIC listing file.
analogin4.hex
The resulting Intel® Hex file that can be fed into a PIC programmer.

5. Issues

The following issues have come up:
