This is revision B of the Controller40 module.
The Controller40 module is currently designed to work with some 40-pin 20MHz Atmel AVR microcontrollers. These microcontollers include:
Part Program RAM EEPROM ATmega164P-20PU 16K×8 1K×8 512×8 ATmega324P-20PU 32K×8 2K×8 1K×8 ATmega644P-20PU 64K×8 4K×8 2K×8
This module has the following features:
You are free to program the microcontroller using any technology that you want. Three techniques are described here:
The rest of this section discusses the first downloader option.
- Downloader
- A downloader executive can be programmed into the microcontroller, and programs can be loaded into the microcontroller via the RoboBricks2 bus. The WireHost module can be used to facilitate this.
- JTAG Header
- Atmel has a standard JTAG header that can be used for both programming and debugging.
- External Programmer
- An external programmer can be used to program the microcontroller.
Command
NameAction Bit Description 8 7 6 5 4 3 2 1 0 Address Set Send 0 0 0 0 0 0 0 0 0 Set the memory read/write address to hhhhhhhh:llllllll. Send 0 h h h h h h h h Send 0 l l l l l l l l Program Memory Get Send 0 0 0 0 0 0 0 0 1 Read cccccccc words of program memory starting at the address recorded by the Address Set command. The most significant byte comes first, followed by least significant byte. There are always cccccccc × 2 bytes returned. The address register is incremented by cccccccc. The 0x5c is always tacked onto the end. Send 0 c c c c c c c c Receive 0 a a a a a a a a Receive 0 b b b b b b b b Receive ... Receive 0 z z z z z z z z Recieve 0 0 1 0 1 1 1 0 0 Program Memory Set Send 0 0 0 0 0 0 0 1 0 Set the next word of program memory to hhhhhhhh:llllllll. Respond with rr equal to 3 for success, or 2, or 1 for failure. Address register is incremented by 1. Send 0 h h h h h h h h Send 0 l l l l l l l l Recieve 0 0 1 0 1 1 0 r r Execute Send 0 0 0 0 0 0 0 1 1 Start execution at the current address. Address Low Get Send 0 0 0 0 0 0 1 0 0 Return the low order byte of the memory address as llllllll. Send 0 l l l l l l l l Address High Get Send 0 0 0 0 0 0 1 0 1 Return the high order byte of the memory address as hhhh hhhh. Send 0 h h h h h h h h Processor Architecture Get Send 0 1 1 1 1 0 1 1 0 Return the processor architecture as vvvvvvvv (0=PIC16, 1=PIC18, 2=AVR8, 3=ARM7. Send 0 v v v v v v v v Processor Architecture Get Send 0 1 1 1 1 0 1 1 0 Return the processor architecture as vvvvvvvv (0=PIC16, 1=PIC18, 2=AVR8, 3=ARM7. Send 0 v v v v v v v v Boot Loader Version Get Send 0 1 1 1 1 0 1 1 0 Send 0 m m m m n n n n Common
CommandsSend 0 1 1 1 1 1 1 x x Standard common command. See specifications for details. Receive 0 a a a a a a a a Select Send 1 a a a a a a a a Select the module with an address of aaaa aaaa. A time-out indicates that the module is not selected. Receive 0 0 0 0 0 0 0 0 0
There is another aspect of the Controller40 that has to do with supporting debugging...

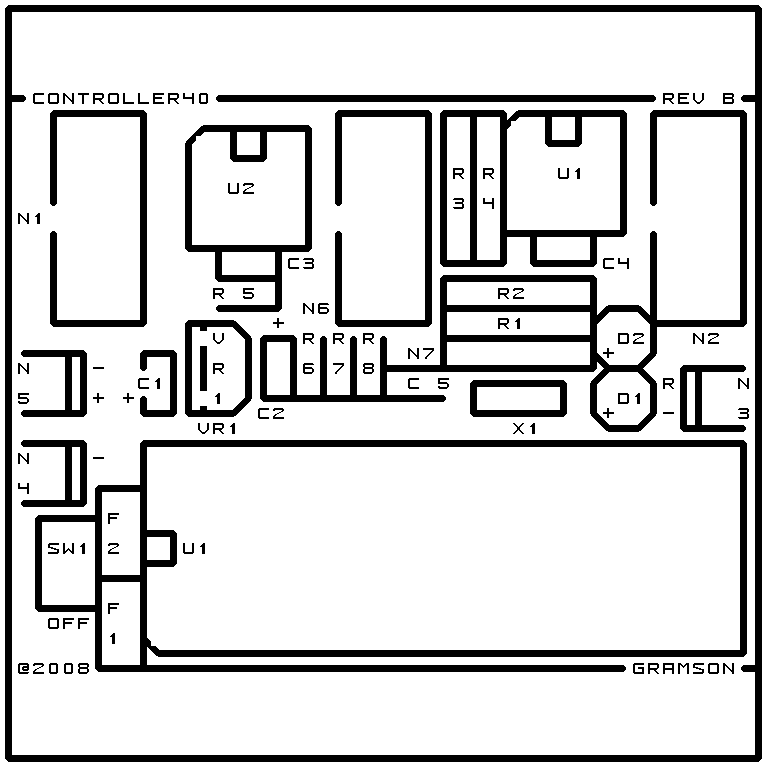

The hardware consists of a circuit schematic and a printed circuit board.

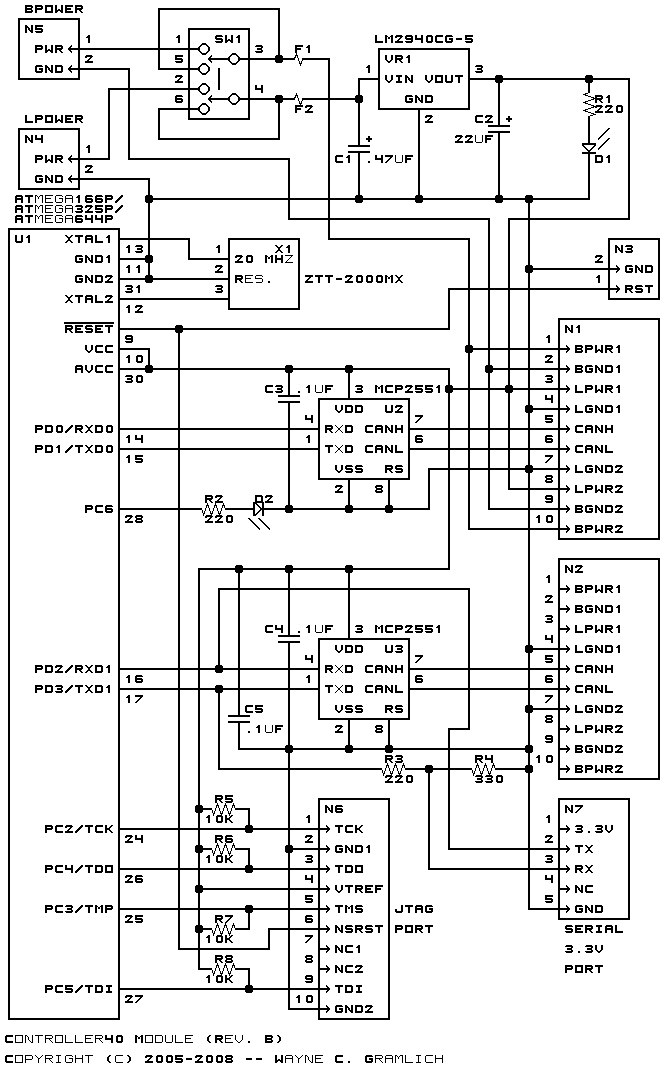

The schematic for the Controller40 module is shown below:
The parts list kept in a separate file -- controller40.ptl.

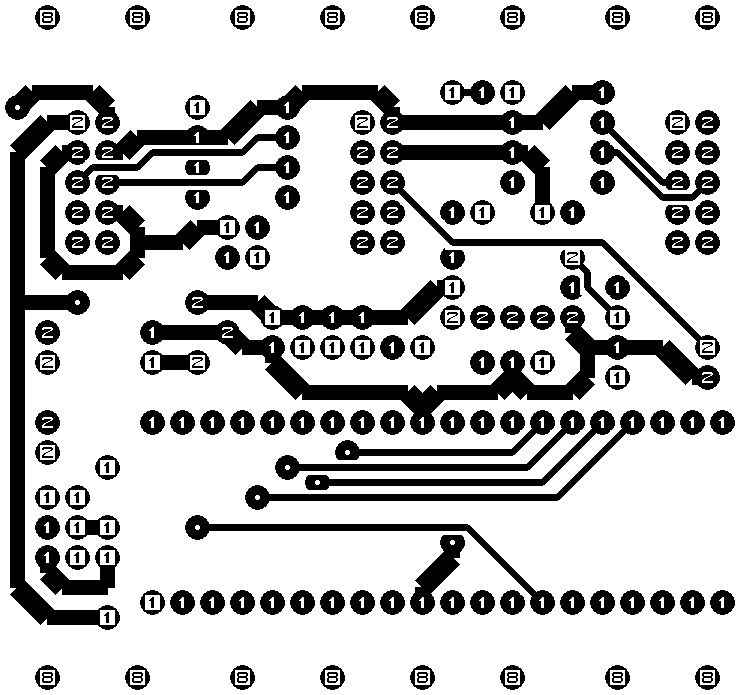

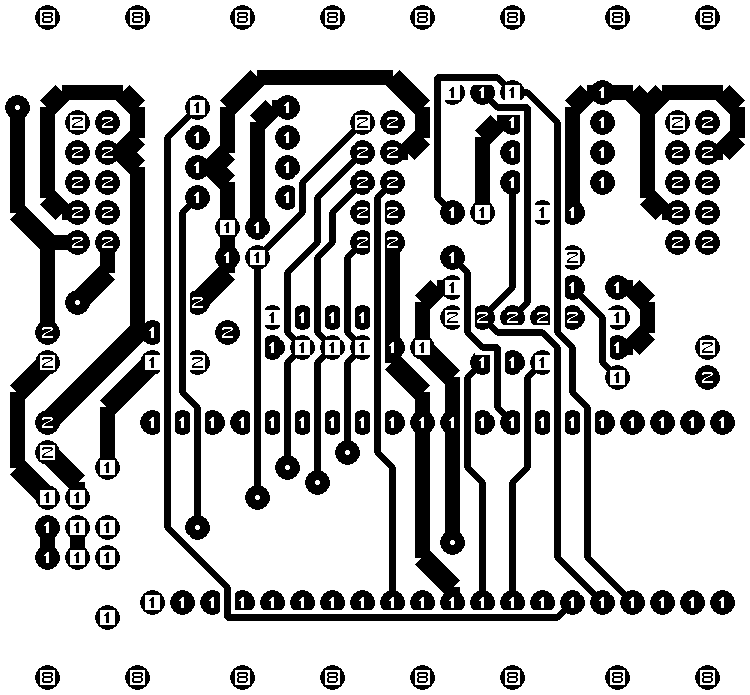

The printed circuit board files are listed below:
Unfortunately, there is not much standardization for In Circuit Serial Programming connectors. However most of the programmers that have ICSP support use some sort of 1×N male header with either .156" or .100" between the pins.
When it comes to in circuit debuggers for Microchip PIC microcontrollers there are few products to choose from. Indeed, as of October 2005, there are only three products I am aware of:
Microchip appears to have standardized on a 6-6 (6 position/6 wire) RJ11 connector and Olimex has standardized on a 1×6 .1" polarized connector. So even though there are only three products, there are already two connectors to choose from.
The Controller40 module uses the Olimex 1×6 header instead of the Microchip RJ11 connector. The reason for this is because there is simply insufficient room on the Controller40 board for the female RJ11 connector and everything else. Thus, the 1×6 is the only reasonable alternative.
The ICSP/ICD pins names, numbers, and descriptions are listed below:
A picture of the header is shown below:
- MCLR/Vpp (Pin 1)
- The is the pin used to reset the processor and to force the processor into programming mode.
- Vdd (Pin 2)
- The voltage that is being fed into the Vdd pin of the 40-pin processor (i.e. +5 volts.)
- GND (Pin 3)
- Ground.
- PGD (Pin 4)
- The program data pin on the 40-pin processor. This is sometimes called RB7.
- PGC (Pin 5)
- The program clock pin on the 40-pin processor. This is sometimes called RB6
- PGM (Pin 6)
- The low voltage program enter pin on the 40-pin processor. Microchip seems to have dropped this feature from their newer chips. The '16F87x chips seem to have it though.
The picture is a deep link into the Spark Fun PG2C Tutorial.
What if you have the Microchip ICD2 product and want to connect it to the Controller40 module? Well there are two options:
- Adaptor Cable
- The easiest solution is to find a 6-wire cable with a 6-6 RJ11 connector on it, snip one end off, and splice on a 1×6 female header onto the other end.
- RJ11 to 1×6 Adaptor
- Alternatively, a adaptor between a 6-6 RJ11 and 1×6 polarized male header can be fabricated. If I get sufficiently motivated, I may even cook one up for laughs.
One comment, since the Microchip MPLAB® product does not currently run on Linux, I have used neither the Olimex nor Microchip in circuit debugger products. This ICSP/ICD facility is provided as a feature for people other than myself.
No software is available at this time.
Any fabrication issues will be listed below:
