This is revision A of the PIC18 Plug and it is currently a work in progress.

EMDP1 PIC18 Plug (Rev. A)

Table of Contents

Introduction

There is a PDF version of this file.

The PIC18 plug is used to program PIC microcontrollers that are in an 18-pin package. This includes the PIC16F84 and the PIC16F628.

The plug identifier is 0000 0000 0001.

Proc. Pkg. Clk. Data Vpp Vdd (+5V) Vss (Gnd) LVP
16C6x/7x/9x, 16C715,
16C84, 16F8x, 16C55x
18 12 (34) 13 (35) 4 14 (36) 5 -
16F62x 18 12 (34) 13 (35) 4 14 (36) 5 10 (32)
Summary 40 34 35 4 36 5 32

Schematics

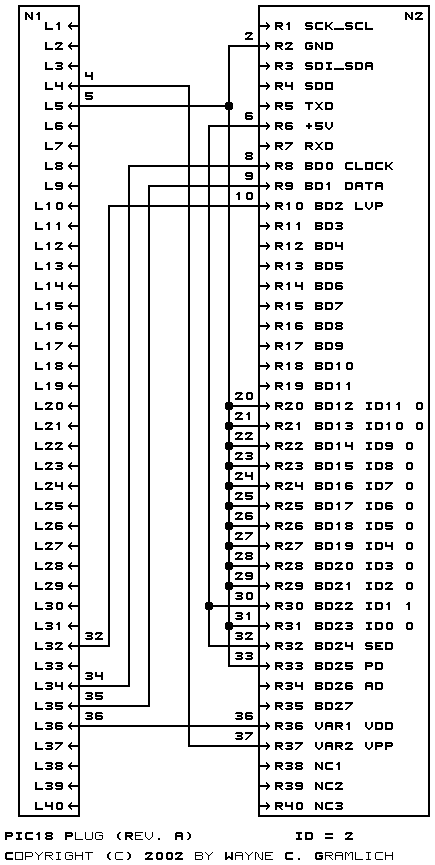

The schematic for the PIC Serial Adaptor is shown below:
PIC Serial Adaptor Pic18 Plug Schematic

The parts list is in a separate file.

Printed Circuit Board

The following files are available for the printed circuit board:

The PIC18 artwork (silk screen) layer.

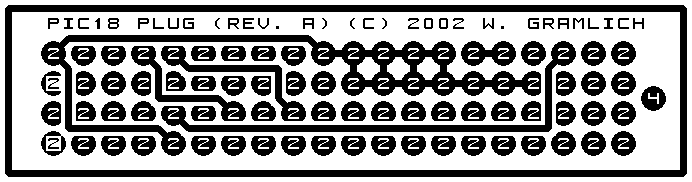

The PIC18 back (component) layer.

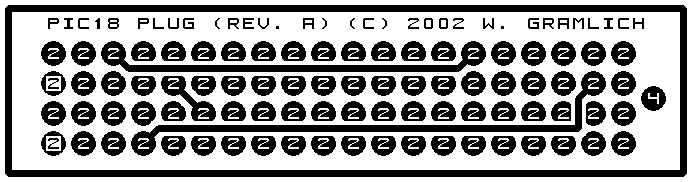

The PIC18 front (solder) layer.
pic18.gal
The PIC18 RS274X `Gerber' file for the pic18 plug artwork (silk screen) layer.
pic18.gbl
The PIC18 RS274X `Gerber' file for the pic18 plug back (component) layer.
pic18.gtl
The PIC18 RS274X `Gerber' file for the pic18 plug front (solder) layer.
pic18.gml
The PIC18 RS274X `Gerber' file for the pic18 plug solder mask layer.
pic18.drl
The PIC18 `Excellon' drill file for the pic18 plug board.
pic18.tol
The PIC18 drill file rack for the pic18 plug board.
pic18.ptl
The PIC18 parts list (bill of materials).
Please note that the two 2×20 headers are installed on the non-silk screen side of the board.

Issues

Any fabrication issues will be listed here.
