This is revision A of the PIC_Serial Adaptor Board Plug18 Plug and it is currently a work in progress.

EMDP1 PIC Serial Adaptor Plug18 Plug (Rev. A)

Table of Contents

Introduction

There is a PDF version of this file.

The PIC Serial Plug18 is used to program PIC microcontrollers that are in an 18-pin package. This includes the PIC16F84 and the PIC16F628.

The plug id for this plug is 0000 (=0).

Proc. Class Pkg. Clk. Data Vpp Vdd (+5V) Vss (Gnd) LVP
Class C C 18 34 35 4 36 5 32
16C6x/7x/9x, 16C715,
16C84, 16F8x, 16C55x
C 18 12 (34) 13 (35) 4 14 (36) 5 -
16F62x C 18 12 (34) 13 (35) 4 14 (36) 5 10 (32)

Schematics

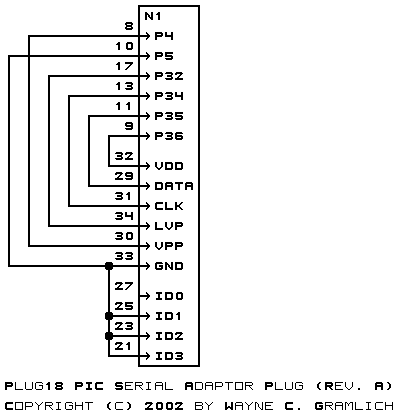

The schematic for the PIC Serial Adaptor is shown below:
PIC Serial Adaptor Plug18 Plug Schematic

The parts list is in a separate file.

Printed Circuit Board

The following files are available for the printed circuit board:

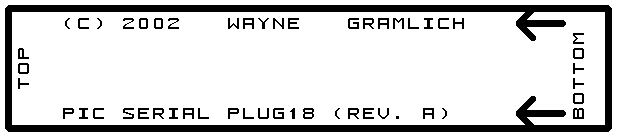

The Plug18 artwork (silk screen) layer.

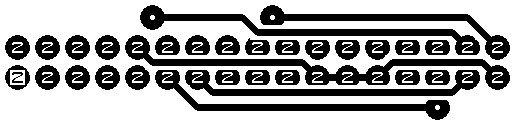

The Plug18 back (component) layer.

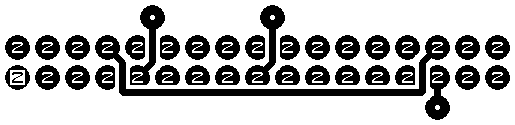

The Plug18 front (solder) layer.
plug18.gal
The Plug18 RS274X `Gerber' file for the plug18 plug artwork (silk screen) layer.
plug18.gbl
The Plug18 RS274X `Gerber' file for the plug18 plug back (component) layer.
plug18.gtl
The Plug18 RS274X `Gerber' file for the plug18 plug front (solder) layer.
plug18.gml
The Plug18 RS274X `Gerber' file for the plug18 plug solder mask layer.
plug18.drl
The Plug18 `Excellon' drill file for the plug18 plug board.
plug18.tol
The Plug18 drill file rack for the plug18 plug board.
plug18.ptl
The Plug18 parts list (bill of materials).
Please note, for PIC serial plugs, the 2×17 male header goes on the back, and the soldering occurs on the front; this is opposite of what usually occurs.

Issues

Any fabrication issues will be listed here.
