This is one of my CNC motion control revisions and it is currently an abandoned project.

CNC Controller Motion Board (Rev. B)

Table of Contents

Introduction

This is the Revision B version of my motion control board.

Design

I ultimately decided that the real problem with Revision A was that I was trying to be too cheap. Microcontrollers are cheap, but I was trying to get away with bottom of the line ones (e.g. the PIC16C505) rather than slightly more powerful ones. I ultimately decided to use 2 PIC16F628's per axis. The first '628 is primarily responsible for managing the wave tables and chopping. The second '628 is responsible for managing any microstepping, limit/home switches, and any liner/shaft encoder.

Communication between the two '628's is via a 3-wire phase bus that reports the low order 3 bits of the current axis position. This makes the communication `stateless'.

The board has no straps. None. Instead all configuration is performed through the parallel port interface in a special `configure' mode. The configuration information is stored in the EEPROM portion of the '628's.

The first PIC16F628 pin assignments are as follows:

Pin Description
Number Name Kind
1 RA2/AN2 Analog In Comparator2 Vin+
2 RA3/AN3/C10 Analog In Comparator1 Vin+
3 RA4/TOCKI/CMP2 Digital In Phase0
4 RA5/MCLR*/THV Digital In Phase1
5 VSS Ground Ground
6 RB0/INT Digital Out Motor0A
7 RB1/RX/DT Digital In Serial Input
8 RB2/TX/CK Digital Out Serial Output
9 RB3/CCP1 Digital Out Motor0B
10 RB4/PGM Digital Out Motor0 Enable
11 RB5 Digital Out Motor1A
12 RB6/T1OSO/TICK1 Digital Out Motor1B
13 RB7/T1OSI Digital Out Motor1 Enable
14 VDD Power +5 Volts
15 RA6/OSC2/CLKOUT Digital In Phase2
16 RA7/OSC1/CLKIN Digital In Oscillator In
17 RA0/AN0 Analog In Comparator1 Vin-
18 RA1/AN1 Analog In Comparator2 Vin-

The second PIC16F628 pin assignments are listed in the following table:

Pin Description
Number Name Kind
1 RA2/AN2 Digital Out Phase2
2 RA3/AN3/C10 Digital In Limit+
3 RA4/TOCKI/CMP2 Digital In Home
4 RA5/MCLR*/THV Digital In Limit-
5 VSS Ground Ground
6 RB0/INT Digital In Step
7 RB1/RX/DT Digital In Serial In
8 RB2/TX/CK Digital Out Serial Out
9 RB3/CCP1 Digital In Direction
10 RB4/PGM Digital Out DAC Clock
11 RB5 Digital I/O DAC Data
12 RB6/T1OSO/TICK1 Digital In Encoder0
13 RB7/T1OSI Digital In Encoder1
14 VDD Power +5 Volts
15 RA6/OSC2/CLKOUT Digital In Configure
16 RA7/OSC1/CLKIN Digital In Shared Oscillator In
17 RA0/AN0 Digital Out Phase0
18 RA1/AN1 Digital Out Phase1

Schematics

The schematics are broken into 1 connectors schematic and 4 relatively identical axis schematics.

The parts list is kept in a separate file.

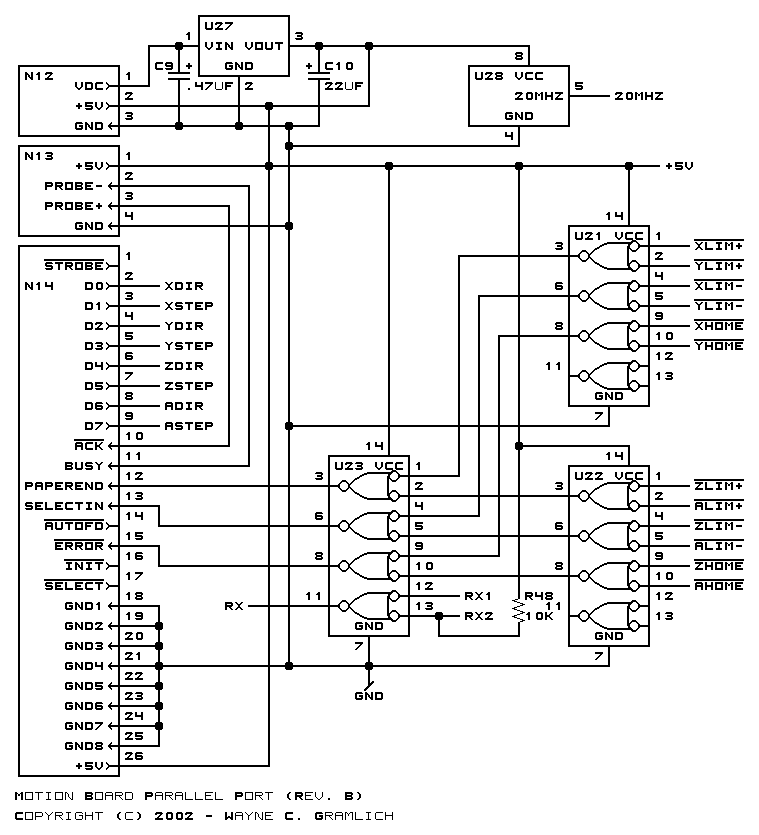

The parallel port schematic is shown below:

Parallel Port Schematic

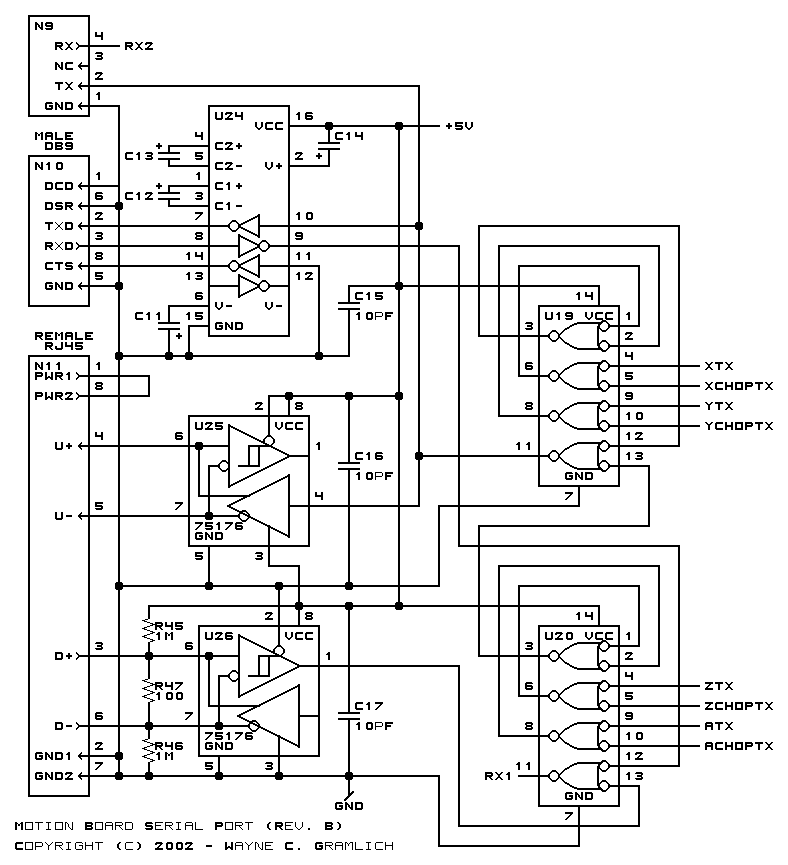

The serial port schematic is shown below:
Serial Port Schematic

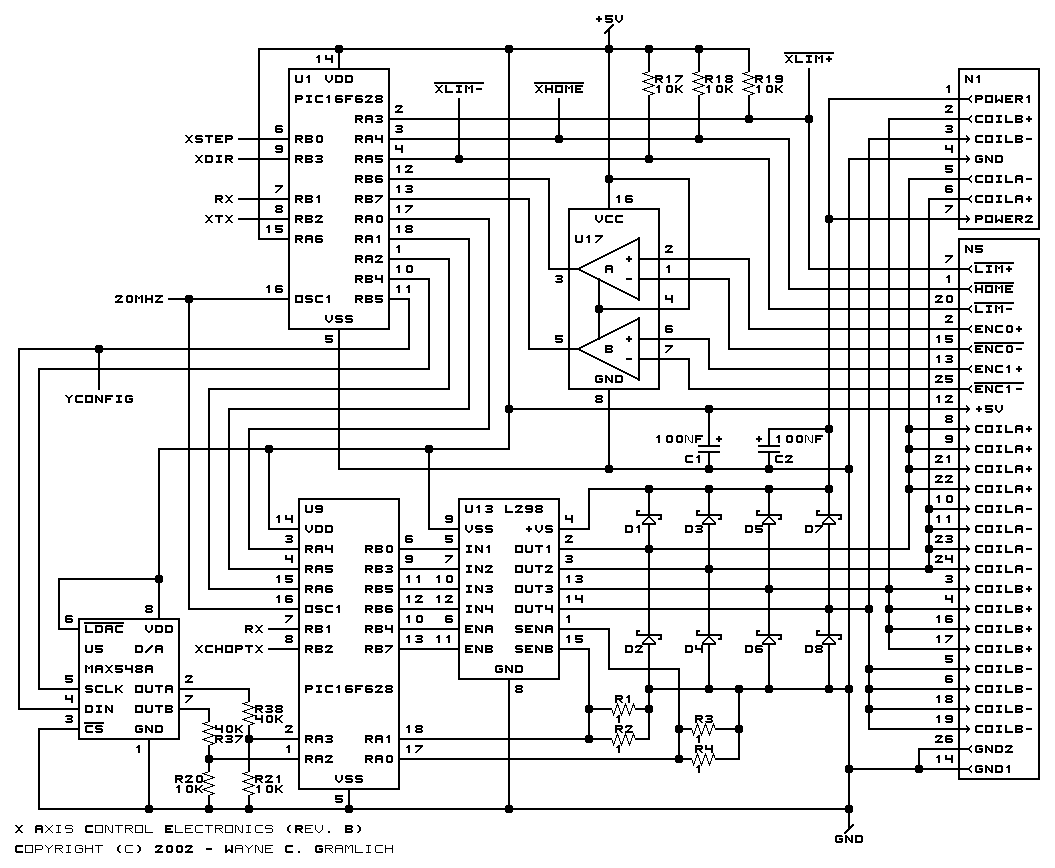

The X Axis schematic is shown below:

X Axis Schematic

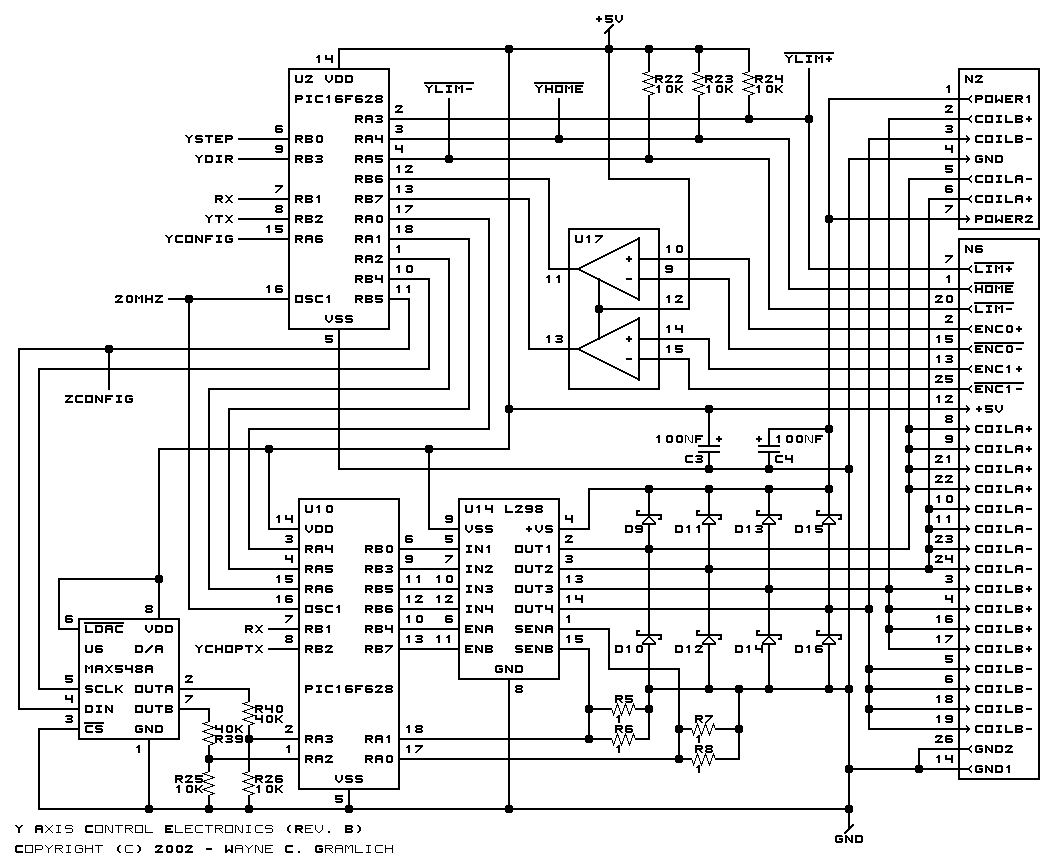

The Y Axis schematic is shown below:

Y Axis Schematic

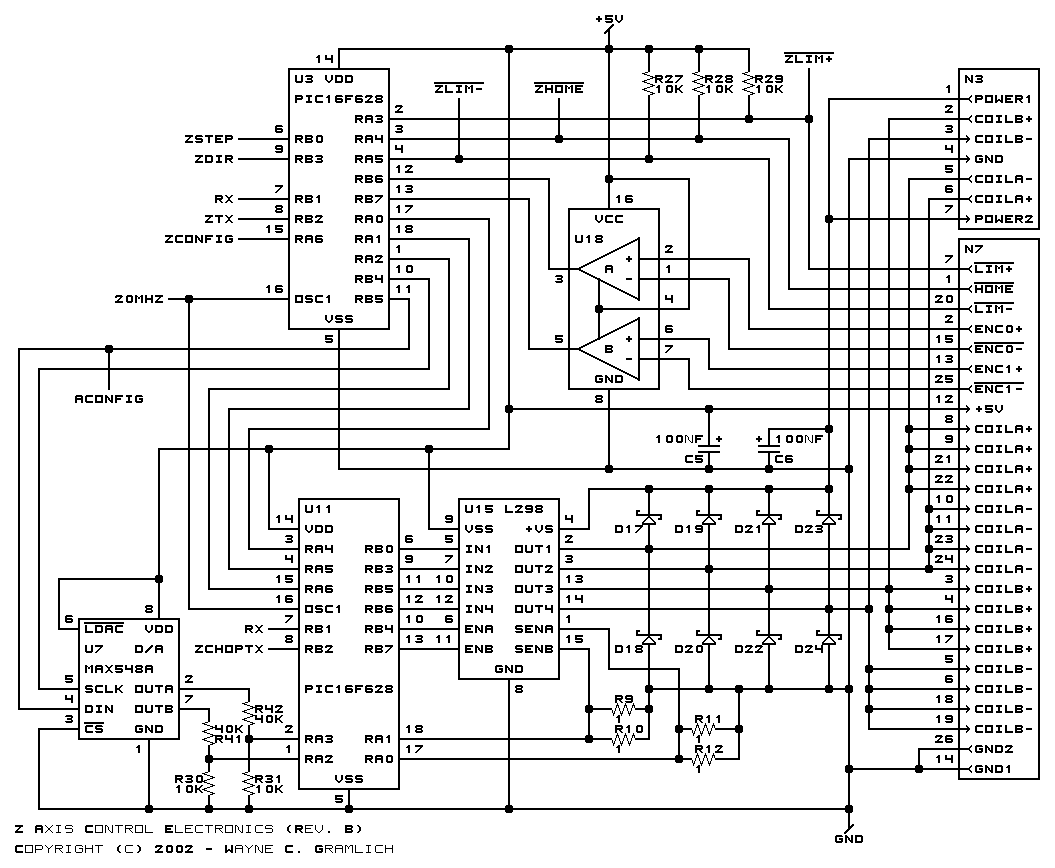

The Z Axis schematic is shown below:

Z Axis Schematic

The A Axis schematic is shown below:

A Axis Schematic

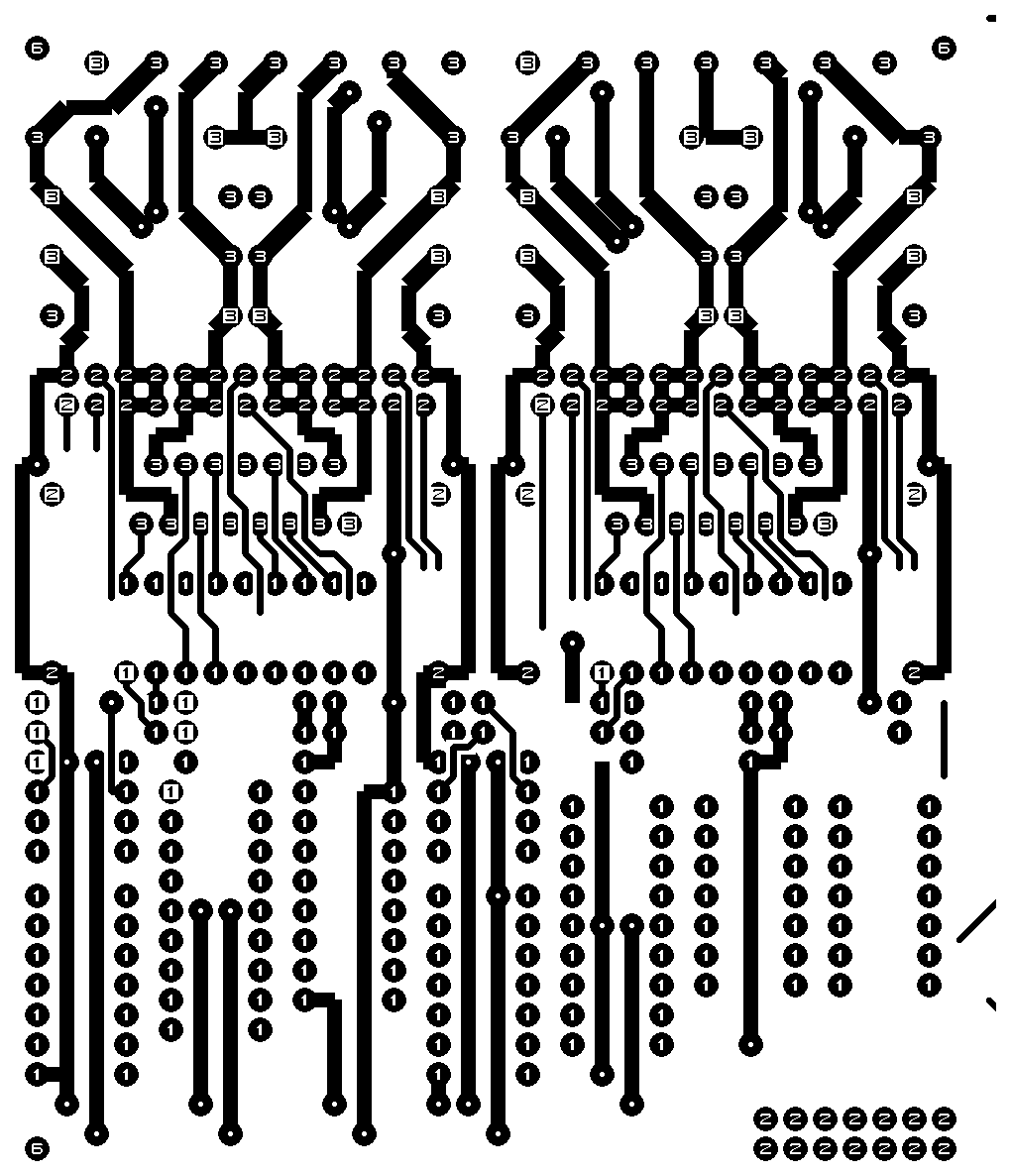

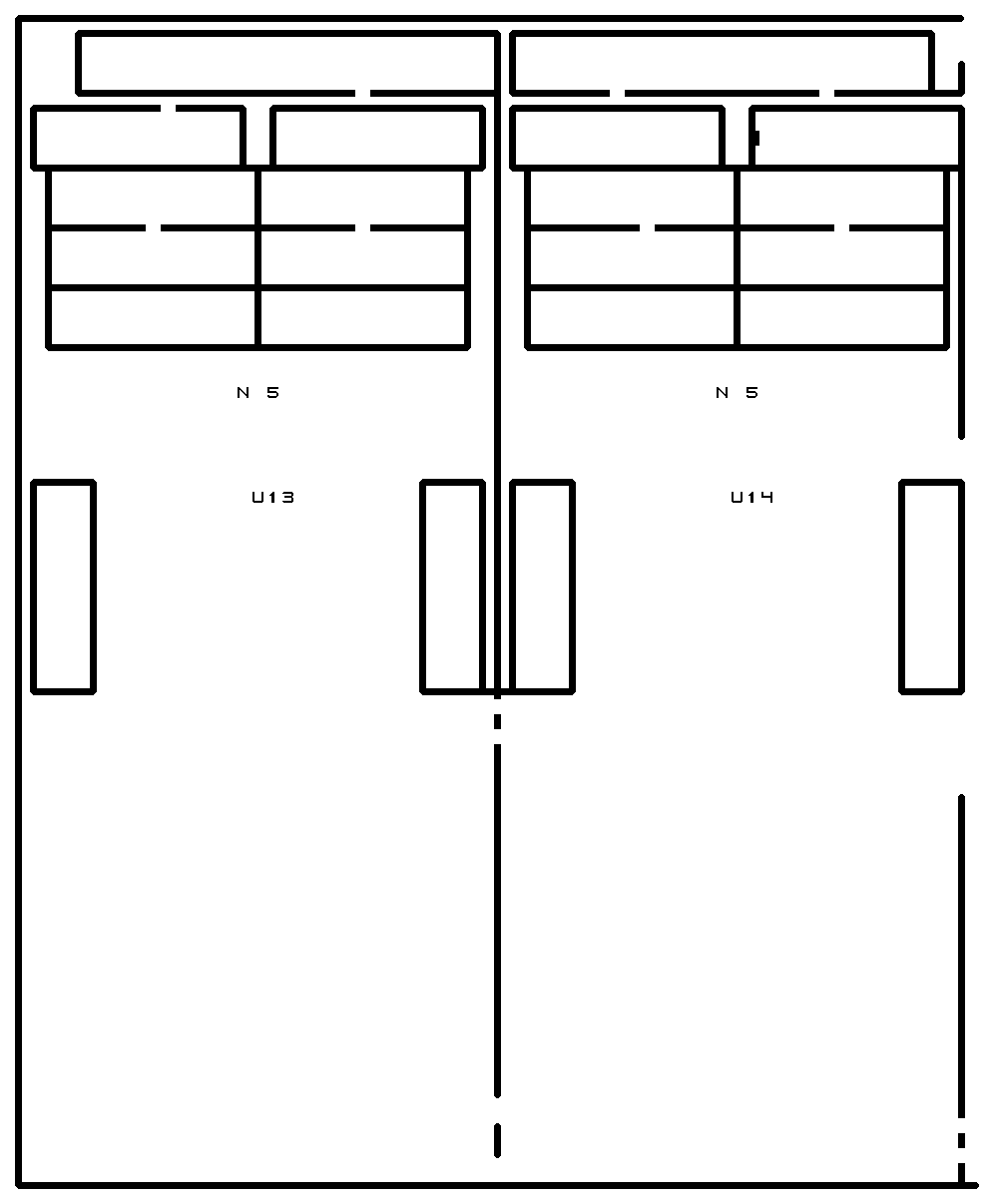

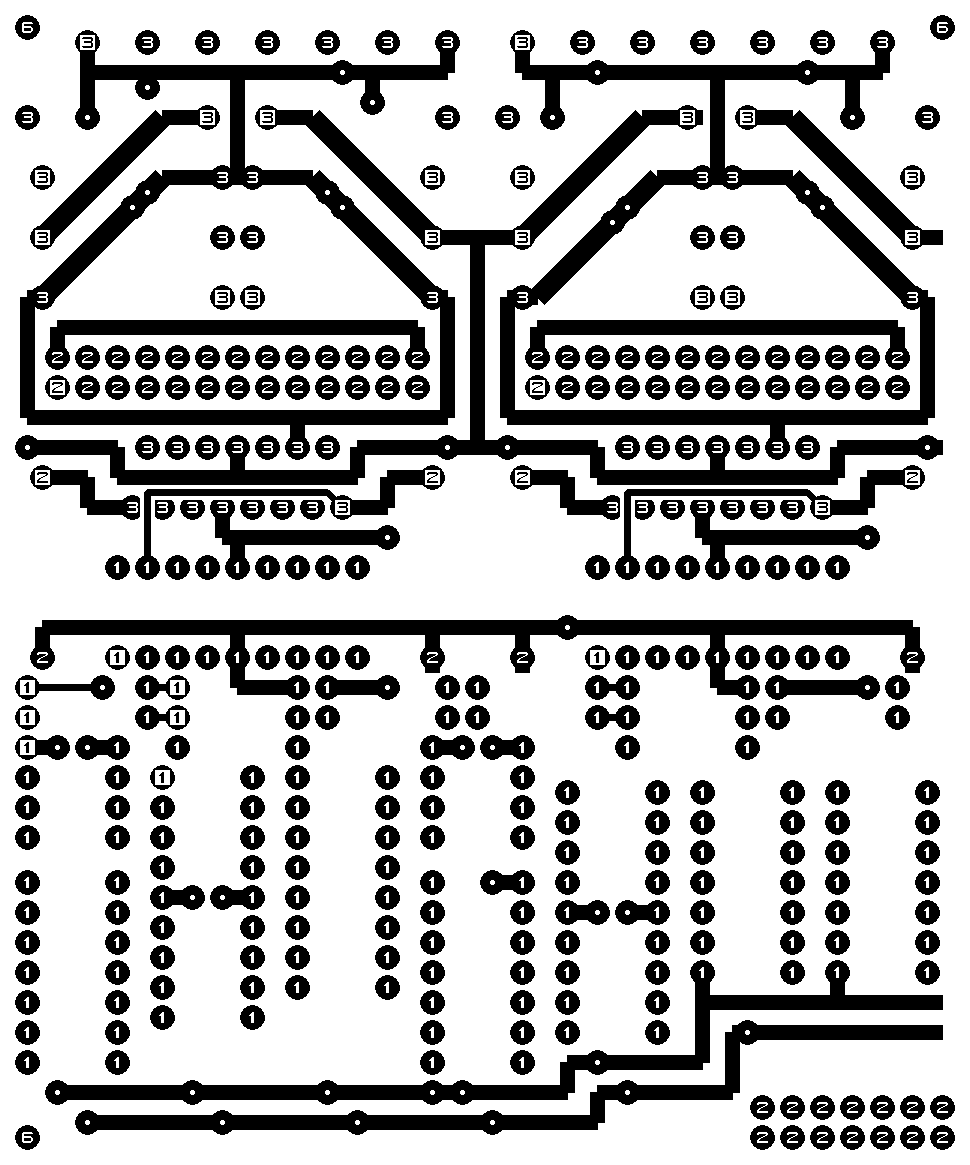

Printed Circuit Board

The printed circuit board files are listed below:

Issues

Any fabrication issues go here.
