small_decoder Board

Here are the various files that make up the small_decoder board:

Schematic (1999-03-19@14:48:54)

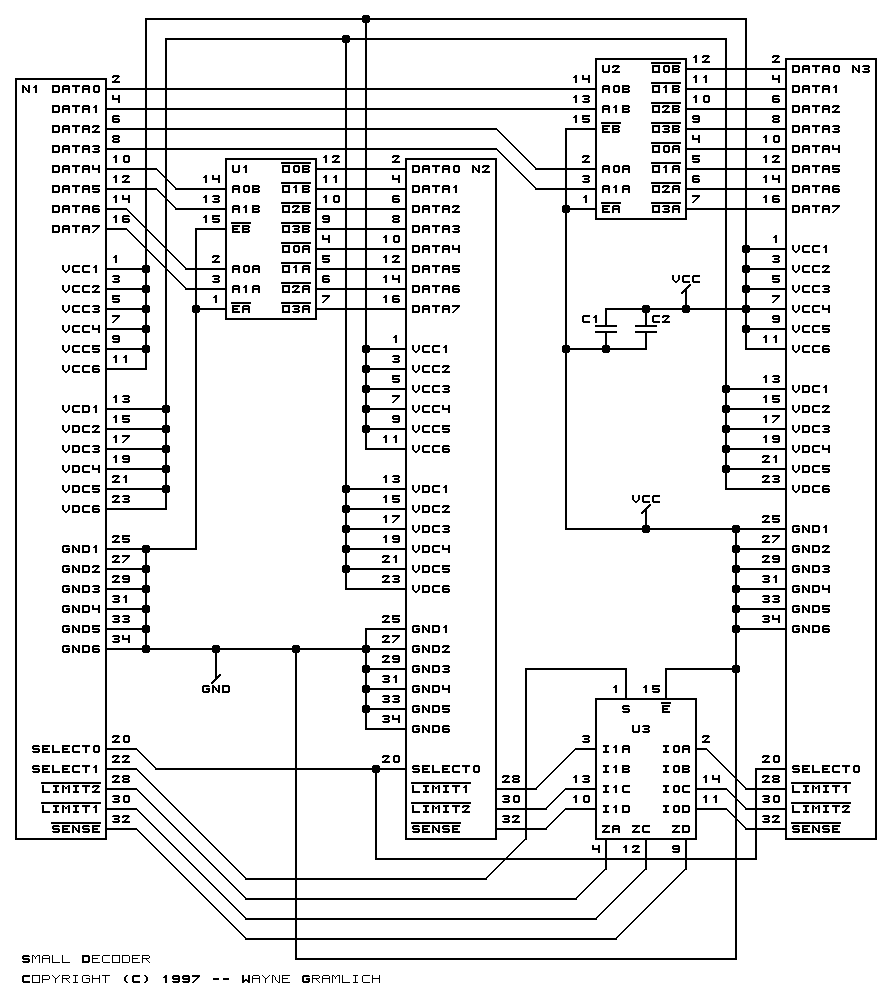

The schematic for small_decoder is shown below:

small_decoder schematic

Solder Side (1999-03-19@14:48:55)

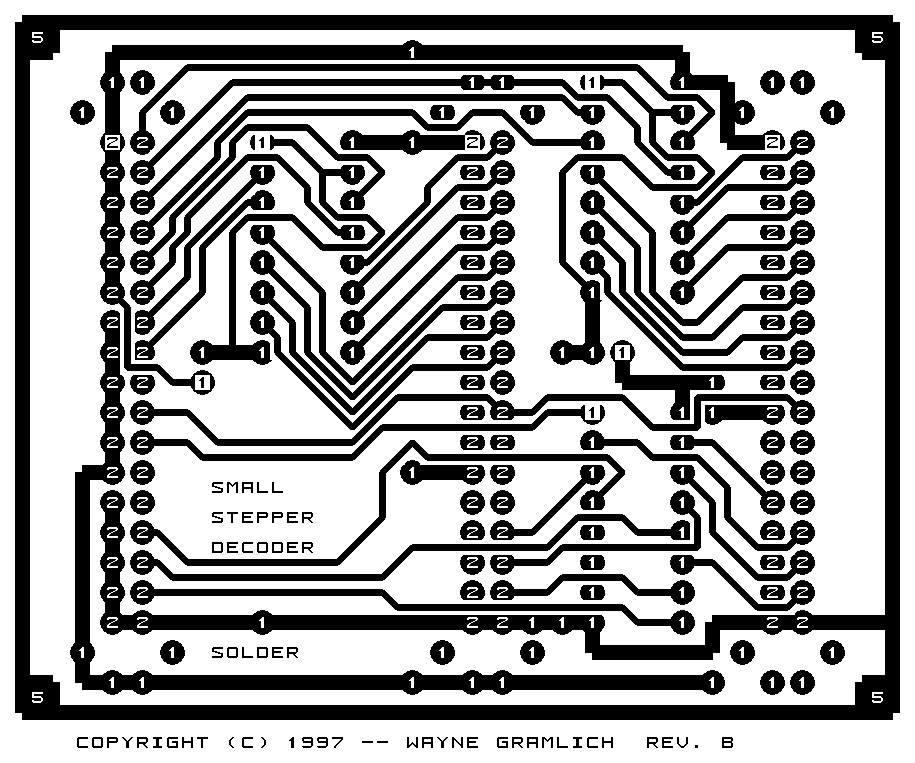

The solder side looks basically as follows:

small_decoder solder side

Component Side (1999-03-19@14:48:55)

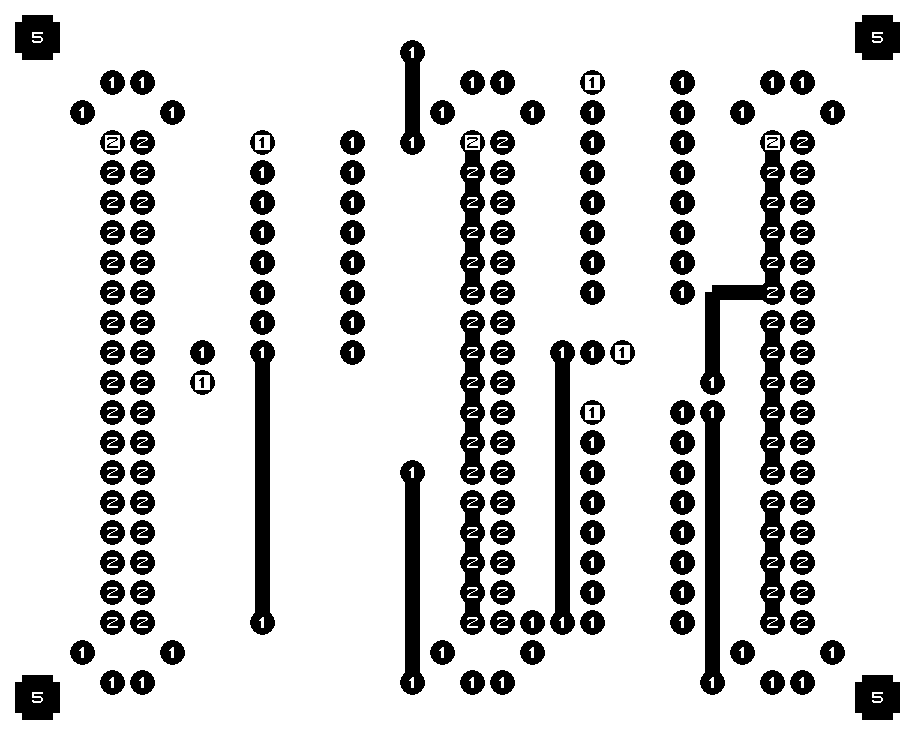

The component side looks basically as follows:

small_decoder component side

Artwork (1999-03-19@14:48:55)

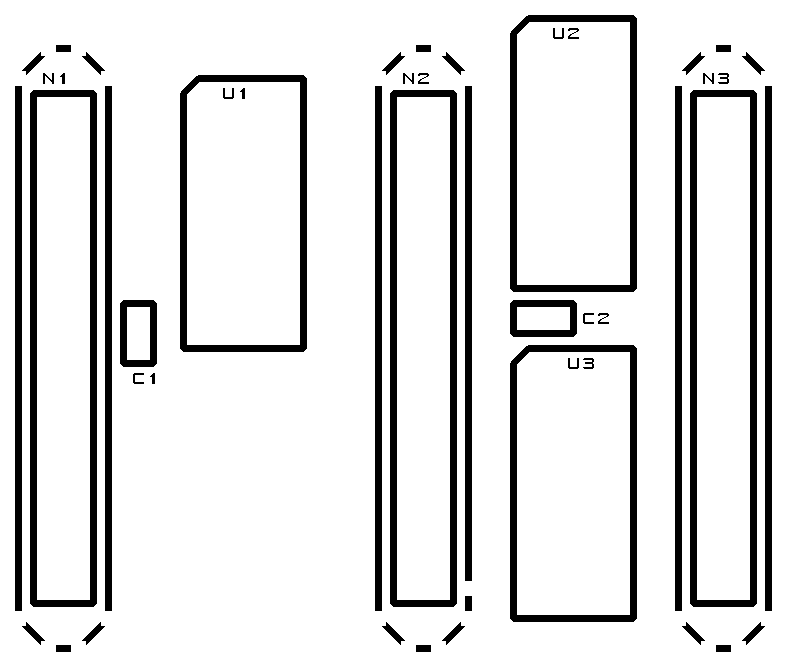

The component placement artwork for small_decoder is shown below:

small_decoder artwork

Here are some additional links to some CAD files for small_decoder:

Solder Side RS-274X File
The commands for photoplotting the solder side of small_decoder.
Component Side RS-274X File
The commands for photoplotting the component side of small_decoder.
Drill File
The `Excellon Drill File' for drilling the holes for small_decoder.
Tool File
The mapping between T-codes and actual drill bit sizes.
Parts List
The parts list file.
