printer_emulator Board

Here are the various files that make up the printer_emulator board:

Schematic (1999-03-19@14:48:54)

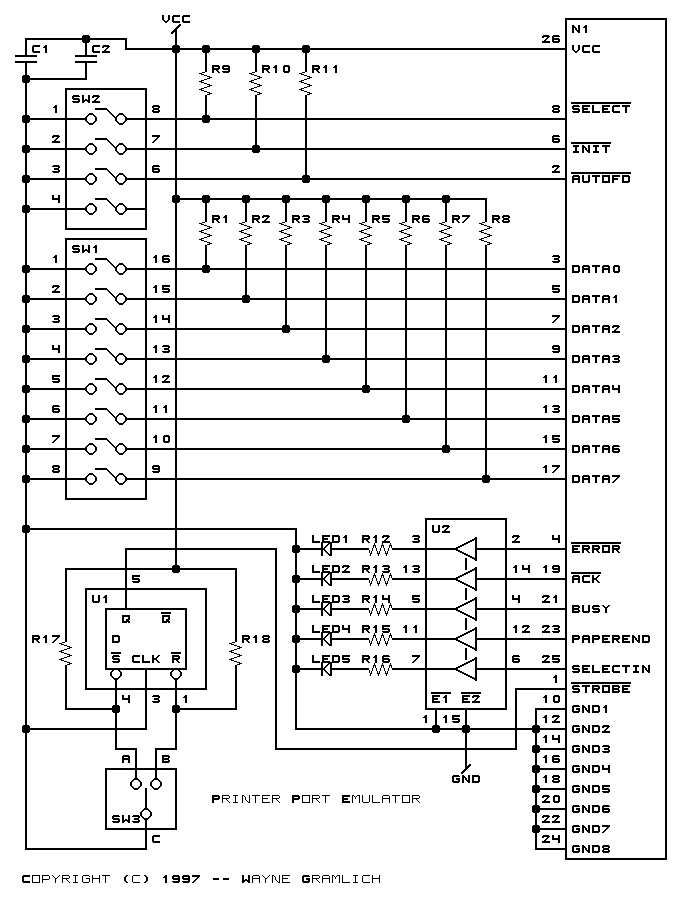

The schematic for printer_emulator is shown below:

printer_emulator schematic

Solder Side (1999-03-19@14:48:55)

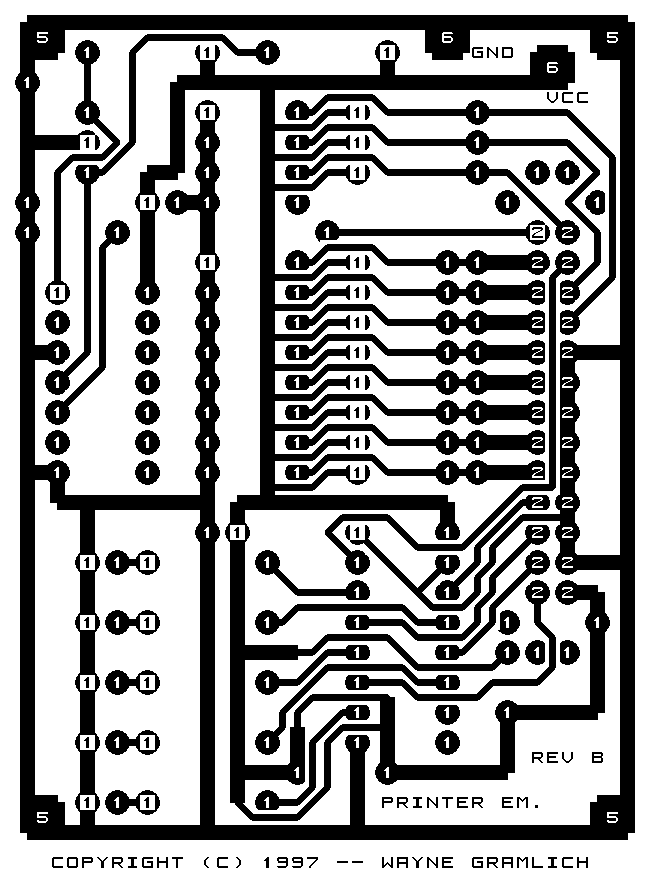

The solder side looks basically as follows:

printer_emulator solder side

Component Side (1999-03-19@14:48:55)

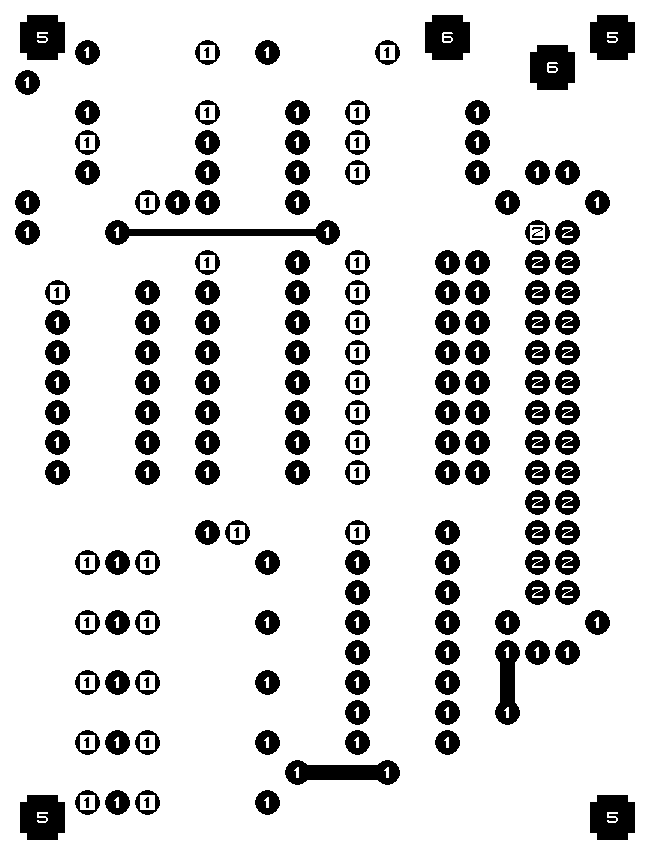

The component side looks basically as follows:

printer_emulator component side

Artwork (1999-03-19@14:48:55)

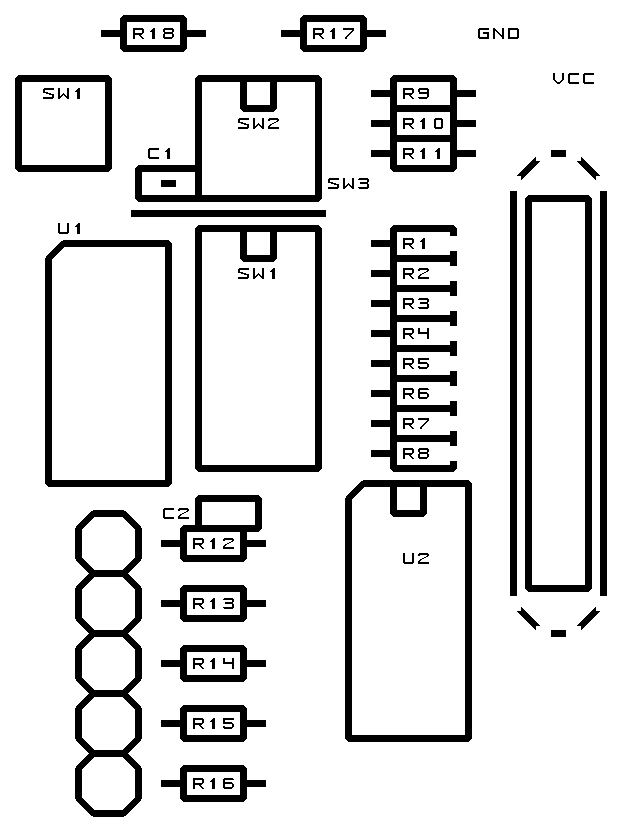

The component placement artwork for printer_emulator is shown below:

printer_emulator artwork

Here are some additional links to some CAD files for printer_emulator:

Solder Side RS-274X File
The commands for photoplotting the solder side of printer_emulator.
Component Side RS-274X File
The commands for photoplotting the component side of printer_emulator.
Drill File
The `Excellon Drill File' for drilling the holes for printer_emulator.
Tool File
The mapping between T-codes and actual drill bit sizes.
Parts List
The parts list file.
