printer_adaptor Board

Here are the various files that make up the printer_adaptor board:

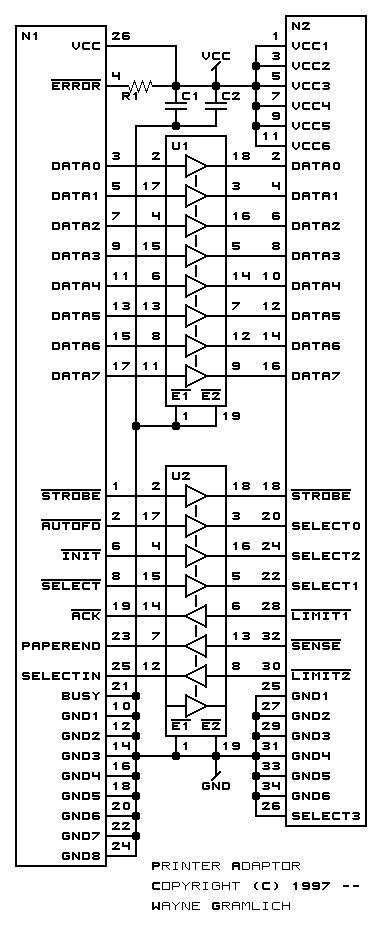

Schematic (1999-03-19@14:48:54)
The schematic for printer_adaptor is shown below:

printer_adaptor schematic

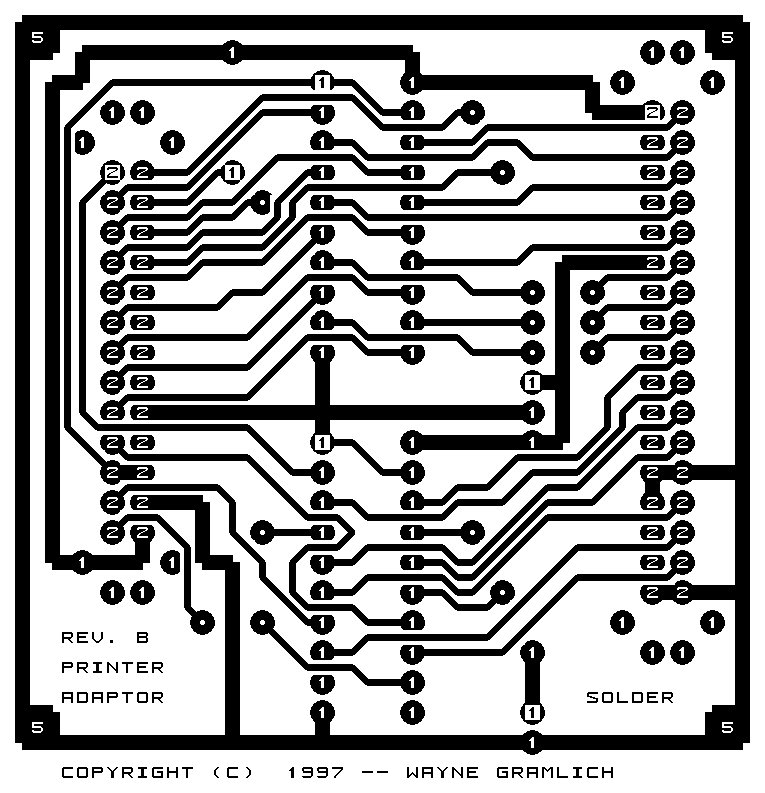

Solder Side (1999-03-19@14:48:55)
The solder side looks basically as follows:

printer_adaptor solder side

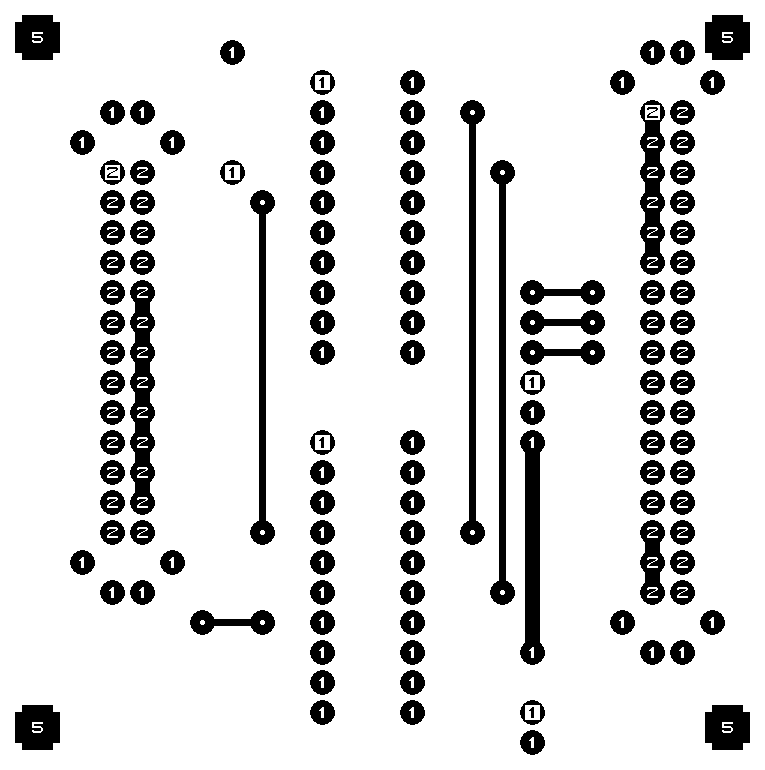

Component Side (1999-03-19@14:48:55)
The component side looks basically as follows:

printer_adaptor component side

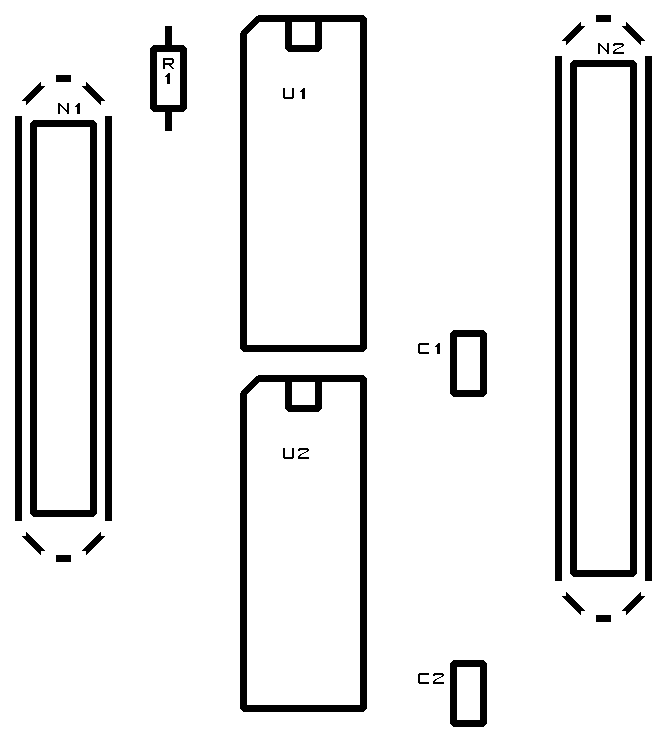

Artwork (1999-03-19@14:48:55)
The component placement artwork for printer_adaptor is shown below:

printer_adaptor artwork

Here are some additional links to some CAD files for printer_adaptor:

Solder Side RS-274X File
The commands for photoplotting the solder side of printer_adaptor.
Component Side RS-274X File
The commands for photoplotting the component side of printer_adaptor.
Drill File
The `Excellon Drill File' for drilling the holes for printer_adaptor.
Tool File
The mapping between T-codes and actual drill bit sizes.
Parts List
The parts list file.
