dual_unipolar Board

Here are the various files that make up the dual_unipolar board:

Schematic (1999-03-19@14:48:54)

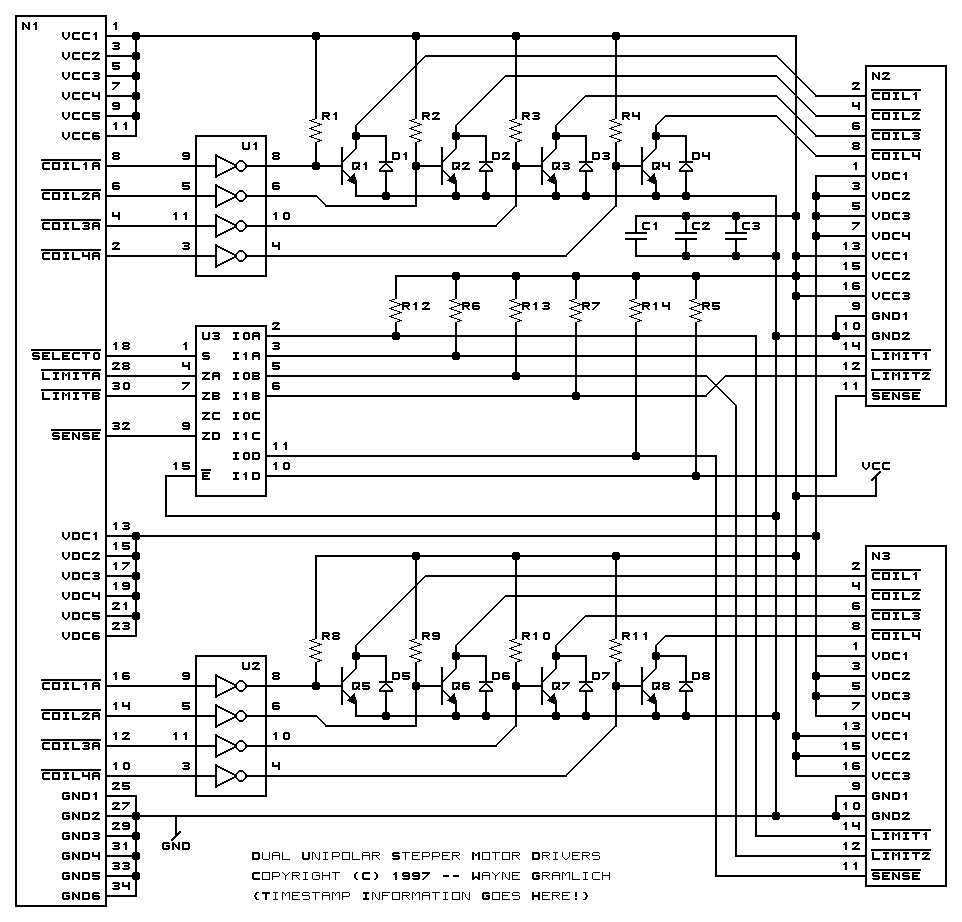

The schematic for dual_unipolar is shown below:

dual_unipolar schematic

Solder Side (1999-03-19@14:48:55)

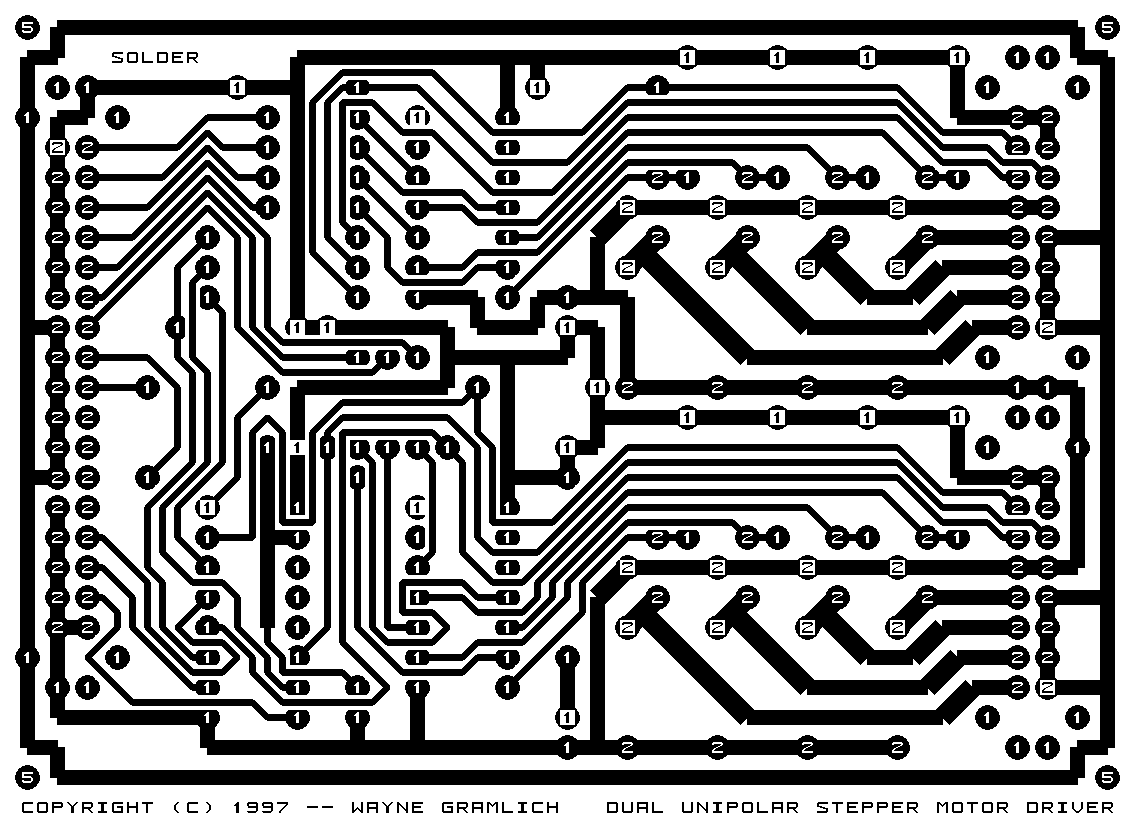

The solder side looks basically as follows:

dual_unipolar solder side

Component Side (1999-03-19@14:48:55)

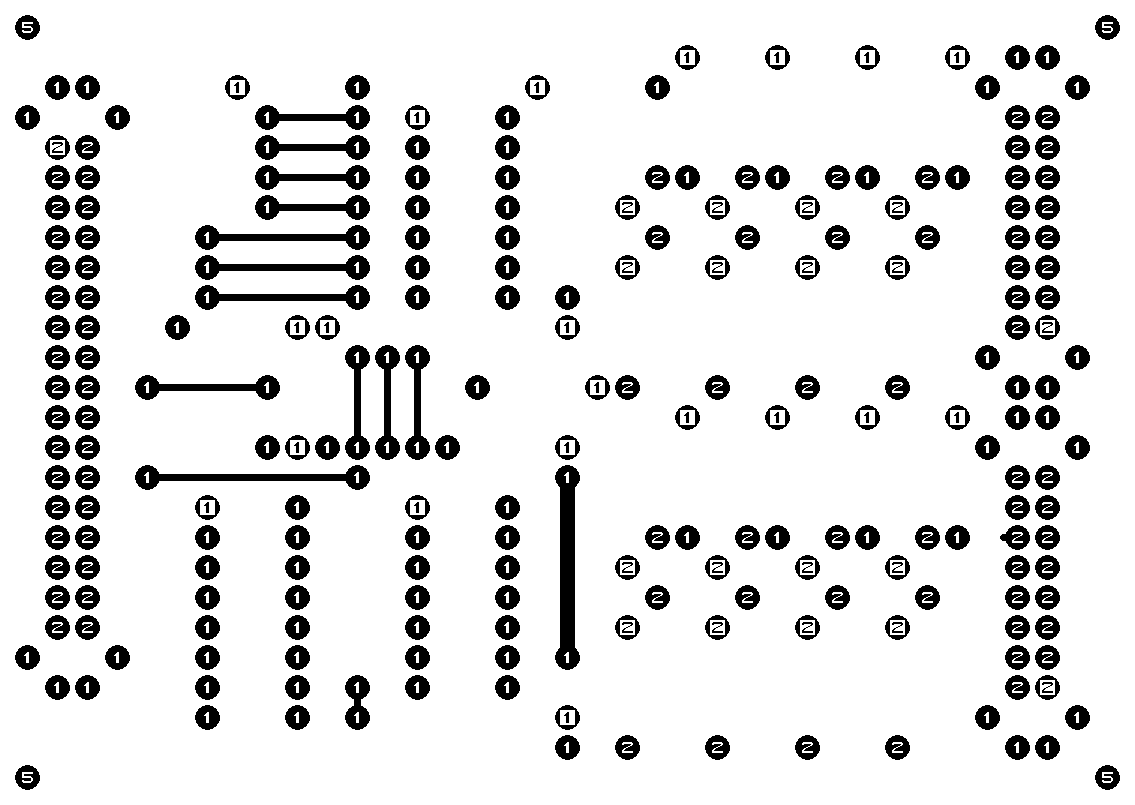

The component side looks basically as follows:

dual_unipolar component side

Artwork (1999-03-19@14:48:55)

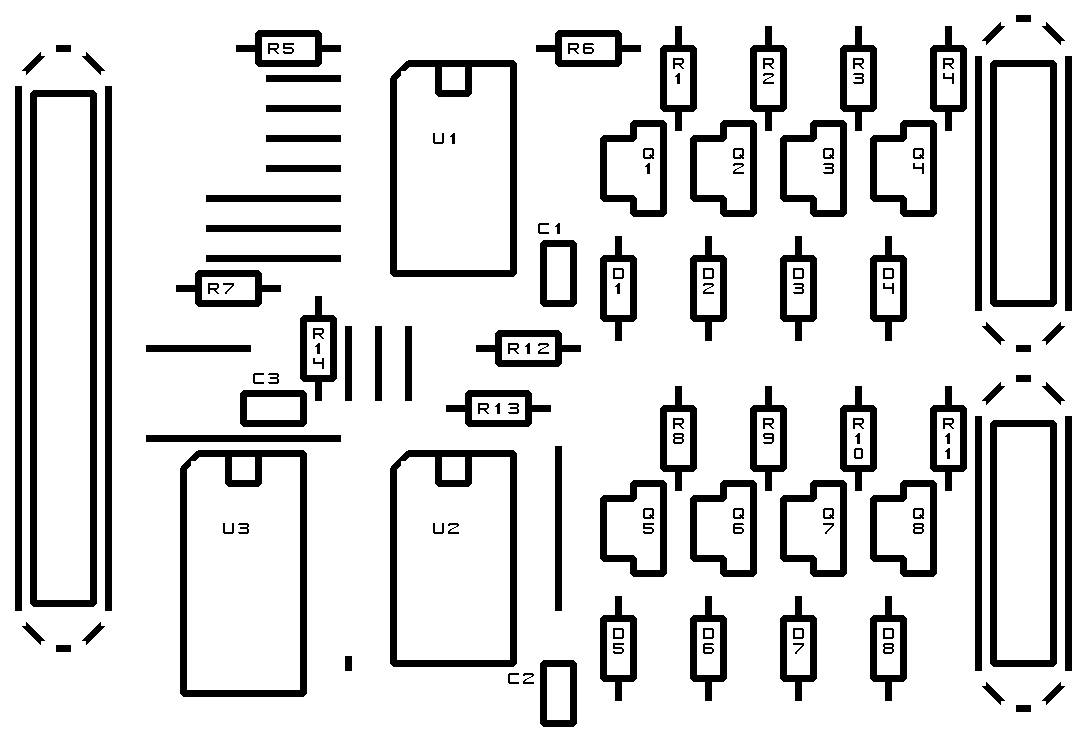

The component placement artwork for dual_unipolar is shown below:

dual_unipolar artwork

Here are some additional links to some CAD files for dual_unipolar:

Solder Side RS-274X File
The commands for photoplotting the solder side of dual_unipolar.
Component Side RS-274X File
The commands for photoplotting the component side of dual_unipolar.
Drill File
The `Excellon Drill File' for drilling the holes for dual_unipolar.
Tool File
The mapping between T-codes and actual drill bit sizes.
Parts List
The parts list file.
