dc_power Board

Here are the various files that make up the dc_power board:

Schematic (1999-03-19@14:48:54)

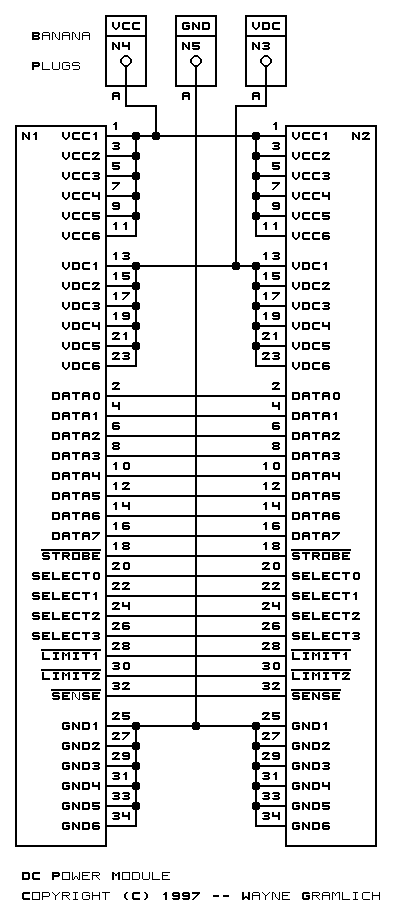

The schematic for dc_power is shown below:

dc_power schematic

Solder Side (1999-03-19@14:48:55)

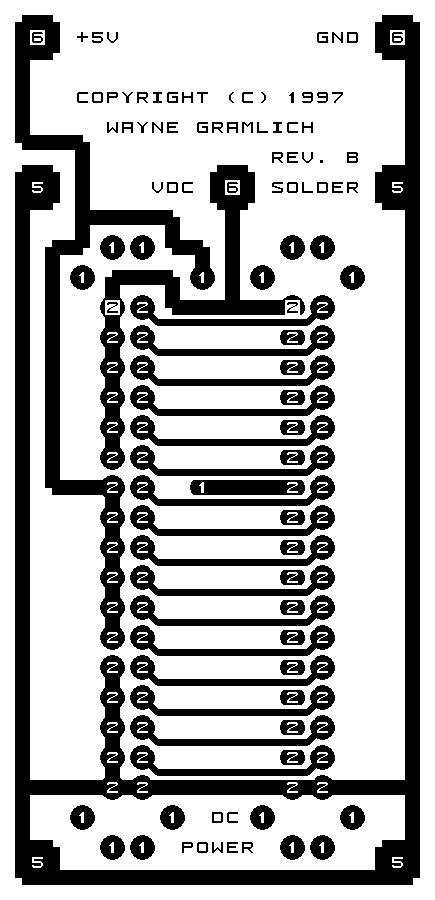

The solder side looks basically as follows:

dc_power solder side

Component Side (1999-03-19@14:48:55)

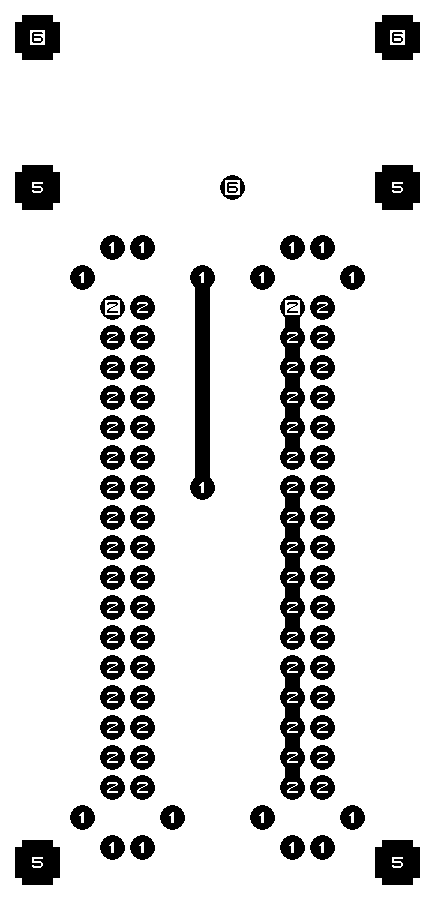

The component side looks basically as follows:

dc_power component side

Artwork (1999-03-19@14:48:55)

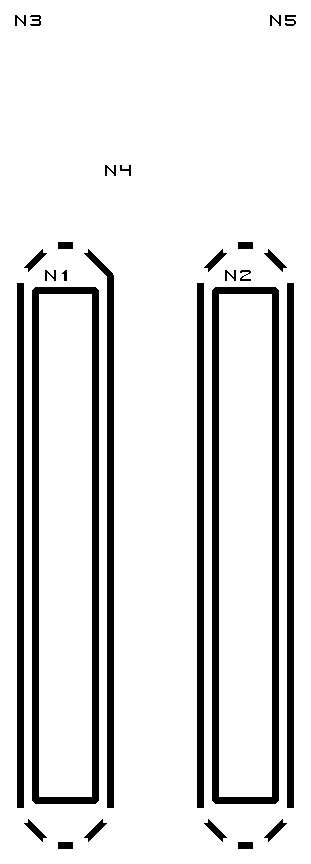

The component placement artwork for dc_power is shown below:

dc_power artwork

Here are some additional links to some CAD files for dc_power:

Solder Side RS-274X File
The commands for photoplotting the solder side of dc_power.
Component Side RS-274X File
The commands for photoplotting the component side of dc_power.
Drill File
The `Excellon Drill File' for drilling the holes for dc_power.
Tool File
The mapping between T-codes and actual drill bit sizes.
Parts List
The parts list file.
