bus_monitor Board

Here are the various files that make up the bus_monitor board:

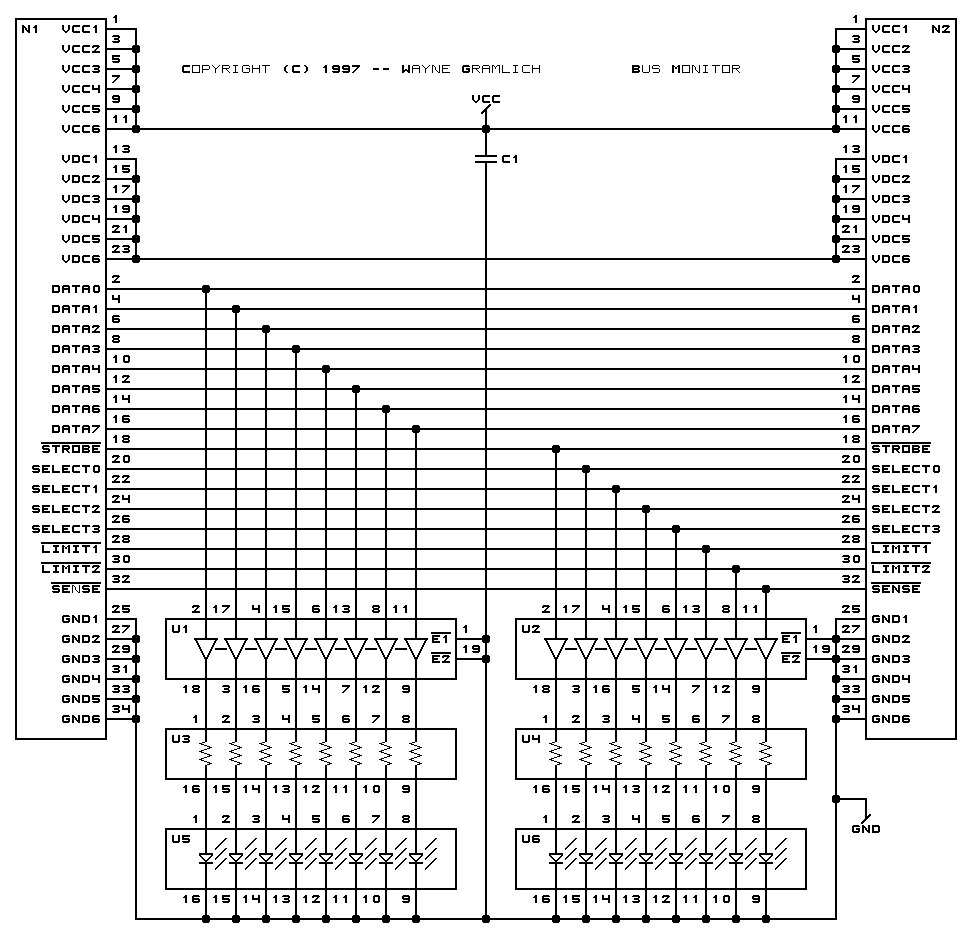

Schematic (1999-03-19@14:48:54)
The schematic for bus_monitor is shown below:

bus_monitor schematic

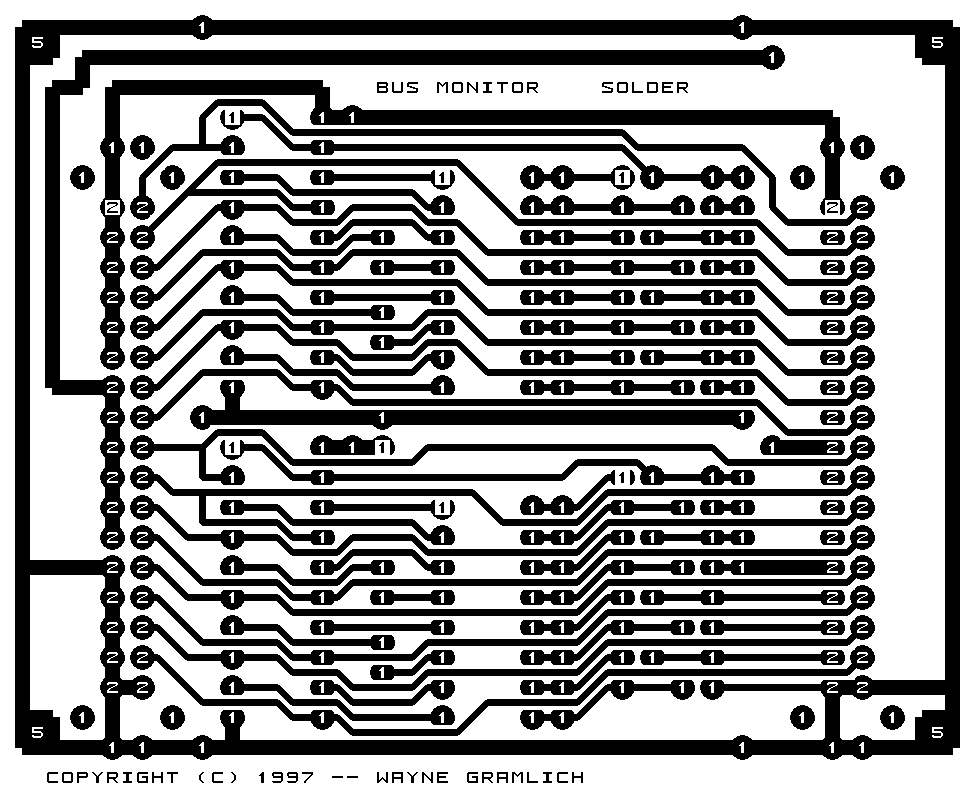

Solder Side (1999-03-19@14:48:55)
The solder side looks basically as follows:

bus_monitor solder side

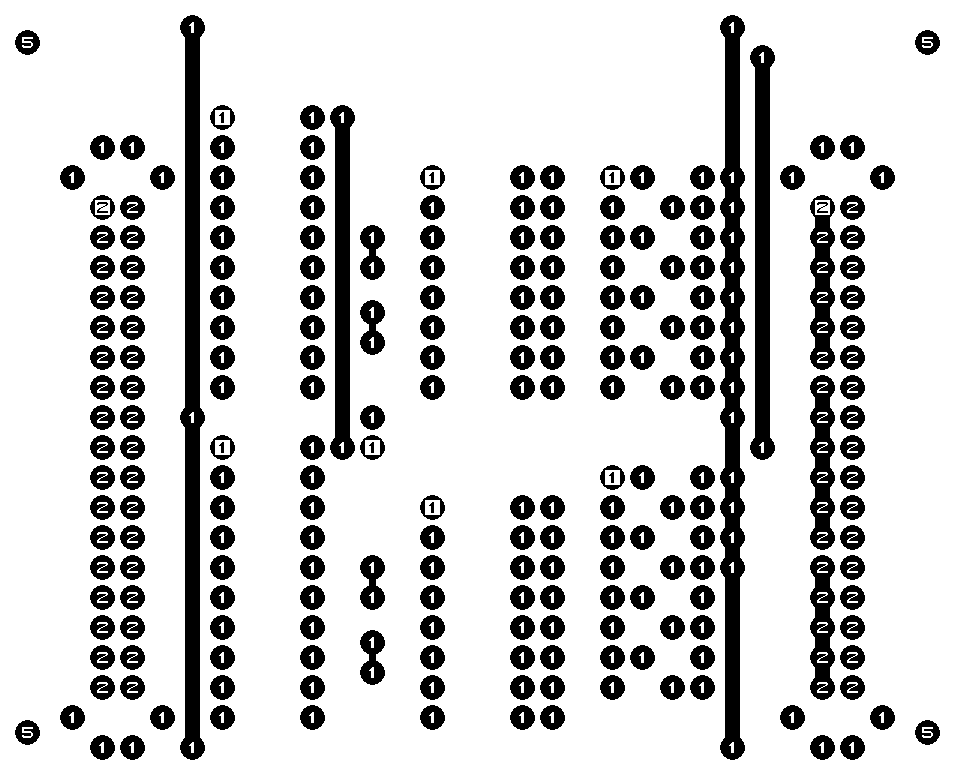

Component Side (1999-03-19@14:48:55)
The component side looks basically as follows:

bus_monitor component side

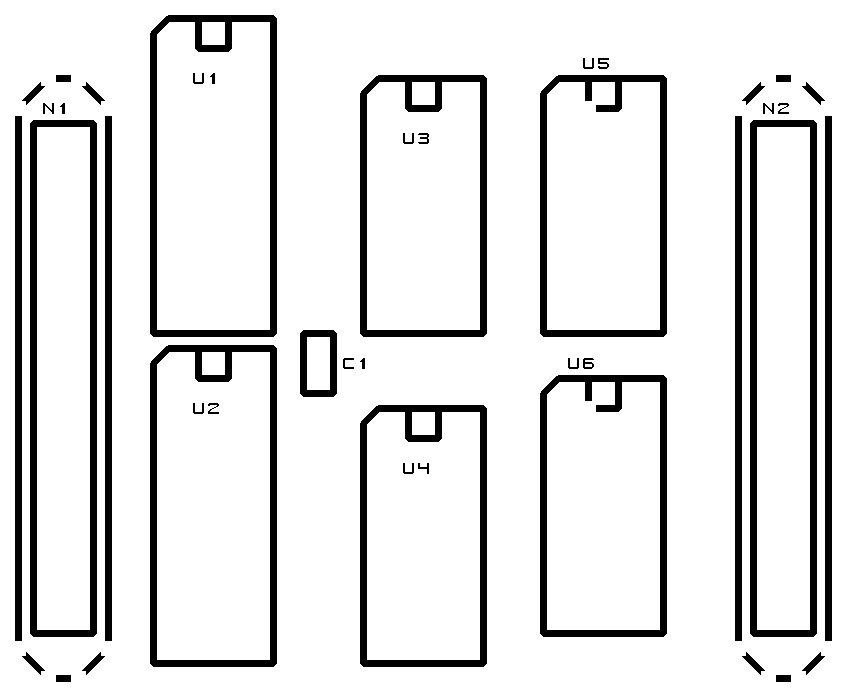

Artwork (1999-03-19@14:48:55)
The component placement artwork for bus_monitor is shown below:

bus_monitor artwork

Here are some additional links to some CAD files for bus_monitor:

Solder Side RS-274X File
The commands for photoplotting the solder side of bus_monitor.
Component Side RS-274X File
The commands for photoplotting the component side of bus_monitor.
Drill File
The `Excellon Drill File' for drilling the holes for bus_monitor.
Tool File
The mapping between T-codes and actual drill bit sizes.
Parts List
The parts list file.
