This is revision A of the Slave Module.

Slave Module (Revision A)

Table of Contents

This document is also available in PDF format.

• 1. Introduction
• 2. Hardware
  • 2.1 Circuit Schematic
  • 2.2 Printed Circuit Board
• 3. Issues

1. Introduction

The Slave module is plugged into a RoboBricks1 module to allow it to talk to a RoboBricks2 bus. The RoboBricks1 module needs to be reprogrammed to support the RoboBricks2 protocol.

2. Hardware

The hardware consists of a circuit schematic and a printed circuit board.

2.1 Circuit Schematic

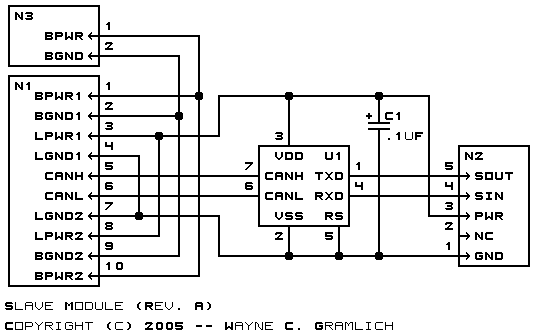

The schematic for the Slave Module is shown below:

The parts list kept in a separate file -- slave.ptl.

2.2 Printed Circuit Board

The printed circuit board files are listed below:

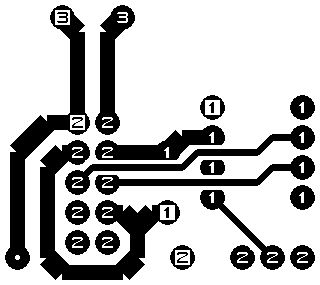

The solder side layer.

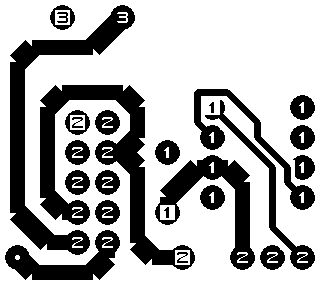

The component side layer.

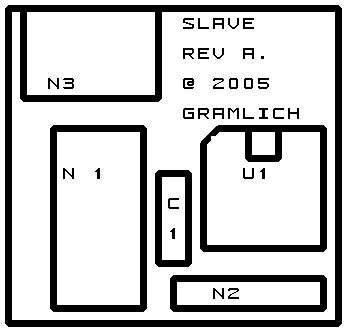

The artwork layer.

slave.gbl

The RS-274X "Gerber" back (solder side) layer.

slave.gtl

The RS-274X "Gerber" top (component side) layer.

slave.gal

The RS-274X "Gerber" artwork layer.

slave.drl

The "Excellon" NC drill file.

slave.tol

The tool rack file.

3. Issues

Any issues that come up are listed here.
