Power Splice Module (Revision A)

Table of Contents

This document is also available in PDF format.

• 1. Introduction
• 2. Hardware
  • 2.1 Circuit Schematic
  • 2.2 Printed Circuit Board
• 3. Issues

1. Introduction

The Power Splice module is used to power_splice together 2 RoboBricks2 bus cables.

2. Hardware

The hardware consists of a circuit schematic and a printed circuit board.

2.1 Circuit Schematic

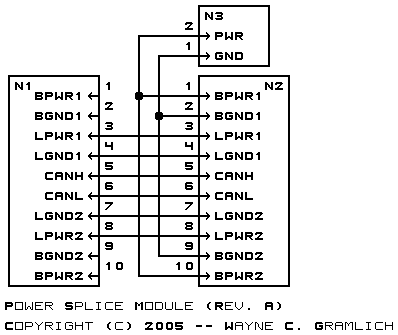

The schematic for the Power Splice Module is shown below:

The parts list kept in a separate file -- power_splice.ptl.

2.2 Printed Circuit Board

The printed circuit board files are listed below:


The solder side layer.


The component side layer.

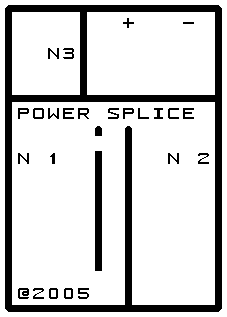

The artwork layer.

power_splice.gbl

The RS-274X "Gerber" back (solder side) layer.

power_splice.gtl

The RS-274X "Gerber" top (component side) layer.

power_splice.gal

The RS-274X "Gerber" artwork layer.

power_splice.drl

The "Excellon" NC drill file.

power_splice.tol

The tool rack file.

3. Issues

Any issues that come up are listed here.
