Orient5 Module (Revision A)

Table of Contents

• 1. Introduction
• 2. Programming
• 3. Hardware
  • 3.1 Circuit Schematic
  • 3.2 Printed Circuit Board
• 4. Software
• 5. Issues

1. Introduction

The Orient5 module manages 5 channels of orientation information -- 3 axes of acceleration and 2 axes of magnetic bearing. The accelerometer is cabable of measuring platform tilt (for a non-accelerating platform) by detecting the Earth gravitational acceleration. The magnetic bearing module can detect 360 degrees of magnetic bearing.

The there axis accelerometer is based on the Parallax^® Hitachi^® H48C Tri-Axis Accelerometer Module. This module contains a Hitachi H48C module with has 4 analog outputs (3 axes X/Y/Z and 1 temperature) connected to a Microchip^® MCP3204 4 channel 12-bit analog to digital converter.

The two axis magenetic bearing module is based on the Parallax HM55B Compass Module, which in turn is based on the Hitachi HM55B integrated circuit.

2. Programming

Command Name	Bit									Action	Description
	8	7	6	5	4	3	2	1	0
Common Commands	0	1	1	1	1	1	1	x	x	Send	Standard common command. See specifications for details.
	0	a	a	a	a	a	a	a	a	Receive
Select	1	a	a	a	a	a	a	a	a	Send	Select the module with an address of aaaa aaaa. A time-out indicates that the module is not selected. (FIXME: 0xa5 is currently returned.)
	0	0	0	0	0	0	0	0	0	Receive

3. Hardware

The hardware consists of a circuit schematic and a printed circuit board.

3.1 Circuit Schematic

The parts list kept in a separate file -- orient5.ptl.

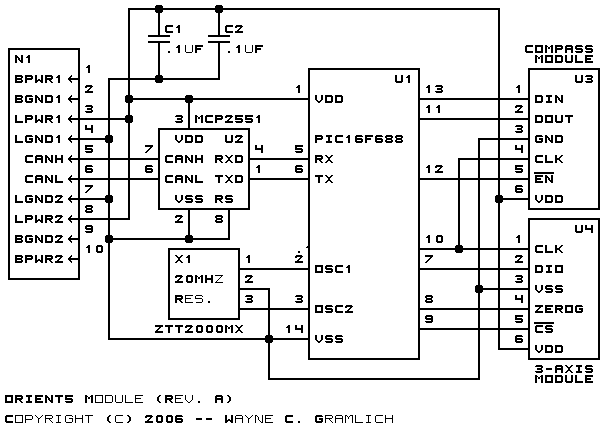

The schematic for the Orient5 module is shown below:

3.2 Printed Circuit Board

The printed circuit board files are listed below:

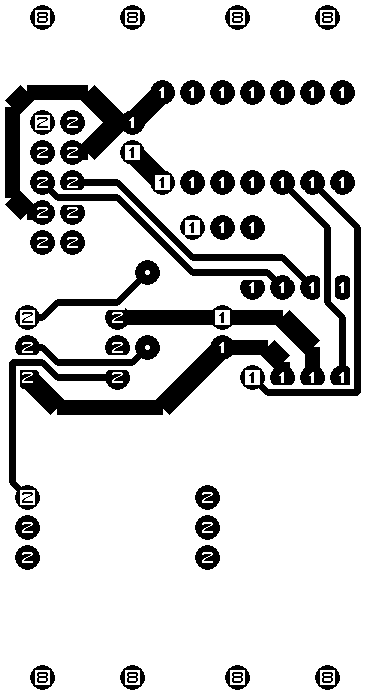

The solder side layer.

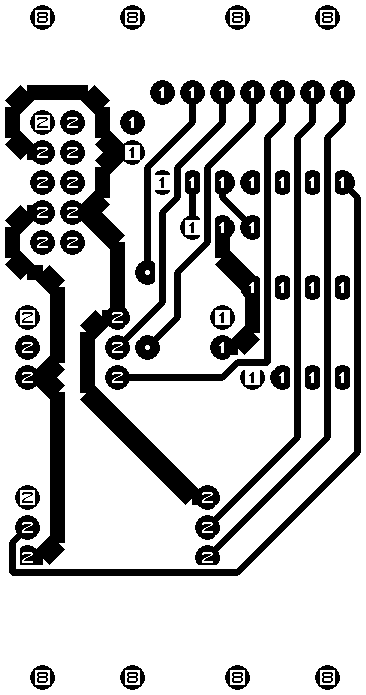

The component side layer.

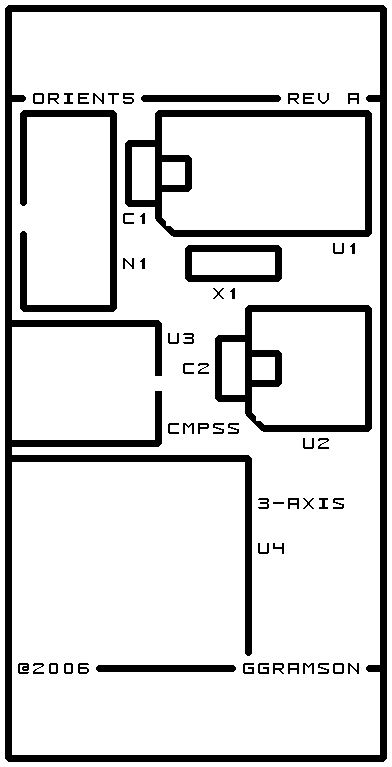

The artwork layer.

orient5.gbl

The RS-274X "Gerber" back (solder side) layer.

orient5.gtl

The RS-274X "Gerber" top (component side) layer.

orient5.gal

The RS-274X "Gerber" artwork layer.

orient5.gml

The RS-274X "Gerber" mask layer.

orient5.drl

The "Excellon" NC drill file.

orient5.tol

The "Excellon" tool rack file.

4. Software

The following files are available:

orient5.ucl

The Orient5 µCL source code file.

orient5.asm

The Orient5 firmware assembly code listing.

orient5.lst

The Orient5 firmware listing file.

orient5.hex

The Orient5 firmware Intel^® Hex file.

5. Issues

The following issues came up:

• The pins for U4 are too wide apart by .1 inch.
• U3 interferes with N1 by .2 inch. U3 should be relocated next to U4.
• U4 needs to be move dup by .1 inch.
