LCD32 Module (Revision A)

Table of Contents

This document is also available in PDF format.

1. Introduction

The LCD32 module can display a total 4 lines of 16 characters each, of which only 2 lines are visible at a time. The characters are displayed using a 5×7 dot matrix. There is a mechancal switch labeled LINES on the LCD32 module that switches between displaying lines 1-2 and lines 3-4. The LCD32 module is based upon the inexpensive Lumex® LCM-S01602DTR/M 2×16 liquid crystal display (LCD) module available from both Digikey® and Mouser®. The LCD32 module has a small trim potentiometer that allows you adjust the display contrast.

2. Programming

Command Send/
Receive
Byte Value Discussion
8 7 6 5 4 3 2 1 0
Back Space Send 0 0 0 0 0 1 0 0 0 Move cursor to the left.
Line Feed Send 0 0 0 0 0 1 0 1 0 Advance currsor to beginning of next line; clear the next line
Form Feed Send 0 0 0 0 0 1 1 0 0 Clear entire display and place cursor at home
Carriage Return Send 0 0 0 0 0 1 1 0 1 Return cursor to beginning of line
Character 32 to 63 Send 0 0 0 1 x x x x x Enter the character on the display and advance cursor.
Character 64 to 127 Send 0 0 1 x x x x x x Enter the character on the display and advance cursor.
Line Set Send 0 1 0 0 0 0 0 l l Move cursor to line ll
Line Clear Send 0 1 0 0 0 0 1 l l Move cursor to line ll and clear it
Cursor Mode Set Send 0 1 0 0 0 1 0 v b Cursor mode is set (v=1 visible cursor) (b=1 blinking cursor)
Cursor Mode Read Send 0 1 0 0 0 1 1 0 0 Read cursor mode (v=1 visible cursor) (b=1 blinking cursor)
Receive 0 0 0 0 0 0 0 v b
Character Read Send 0 1 0 0 0 1 1 0 1 Read the current character ccc cccc; advance cursor
Receive 0 0 c c c c c c c
Line Read Send 0 1 0 0 0 1 1 1 0 Read the current line ll
Receive 0 0 0 0 0 0 0 l l
Position Read Send 0 1 0 0 0 1 1 1 1 Read the current character position pppp
Receive 0 0 0 0 0 p p p p
Position Set Send 0 1 0 0 1 p p p p Move cursor to character position pppp
Position Set and Clear Send 0 1 0 1 0 p p p p Move cursor to character position pppp; clear to end of line
Shared Commands Send 0 1 1 1 1 1 c c c Execute common command ccc.

3. Hardware

The hardware consists of a circuit schematic and a printed circuit board.

3.1 Circuit Schematic

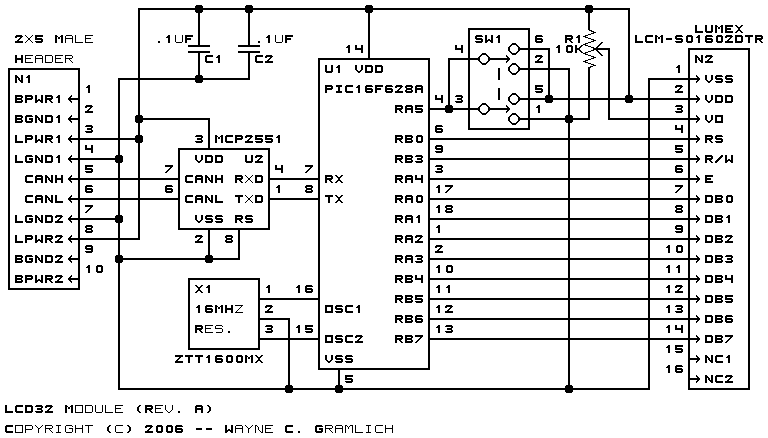

The schematic for the LCD32 RoboBrick is shown below:

LCD32 Schematic

The parts list kept in a separate file -- lcd32.ptl.

3.2 Printed Circuit Board

The printed circuit board files are listed below:

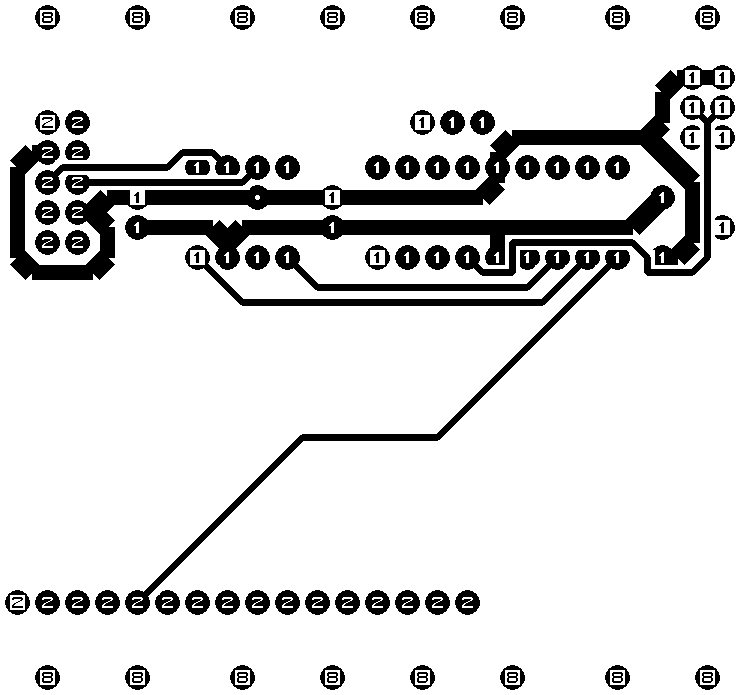

The solder side layer.

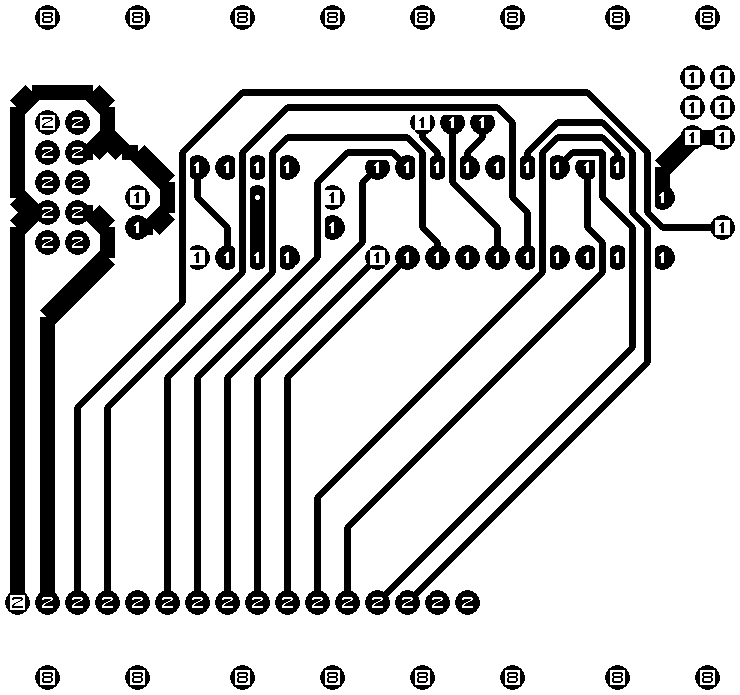

The component side layer.
The artwork layer.
lcd32.gbl
The RS-272X "Gerber" back (solder side) layer.
lcd32.gtl
The RS-272X "Gerber" top (component side) layer.
lcd32.gal
The RS-272X "Gerber" artwork layer.
lcd32.drl
The "Excellon" NC drill file.
lcd32.tol
The "Excellon" tool rack file.

4. Software

The LCD32 software is available as one of:

lcd32.ucl
The µCL source file.
lcd32.asm
The resulting human readable PIC assembly file.
lcd32.lst
The resulting human readable PIC listing file.
lcd32.hex
The resulting Intel® Hex file.

5. Issues

The following fabrication issues came up:


Copyright © 2006-2007 by Wayne C. Gramlich. All rights reserved.
