Laser1 Module (Revision A)

Table of Contents

This document is also available in PDF format.

• 1. Introduction
• 2. Programming
• 3. Hardware
  • 3.1 Circuit Schematic
  • 3.2 Printed Circuit Board
• 4. Software
• 5. Issues

1. Introduction

The Laser1 module provides the basis for a laser bearing finder. This module must be placed on a platform that can swivel in place. This module can detect reflected back laser beam energy at supstantial distances (10+ meters.) Reflective tape makes an excellent laser reflector.

2. Programming

There is no programming yet.

3. Hardware

The hardware consists of a circuit schematic and a printed circuit board.

3.1 Circuit Schematic

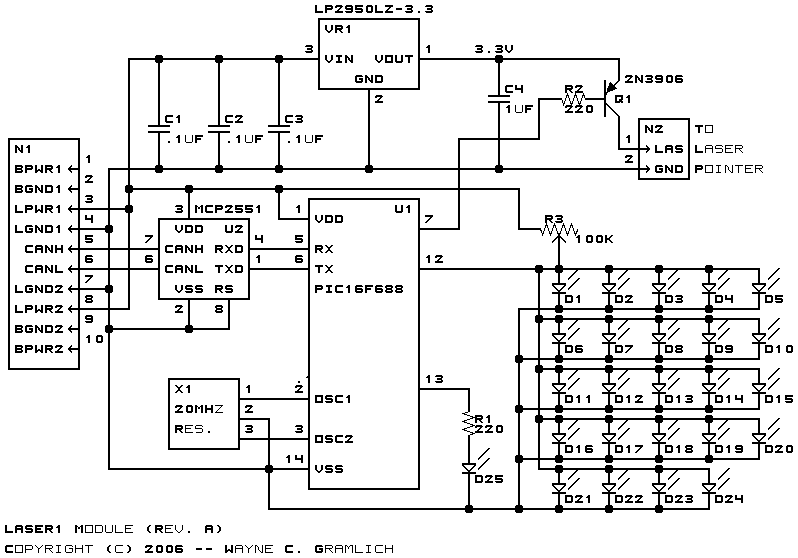

The schematic for the Laser1 Module is shown below:

The parts list kept in a separate file -- laser1.ptl.

3.2 Printed Circuit Board

The printed circuit board files are listed below:

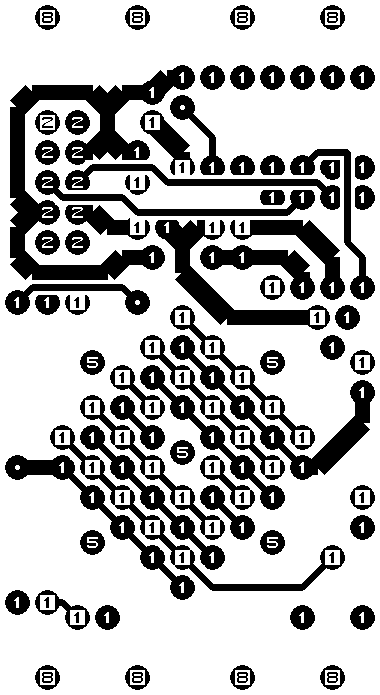

The solder side layer.

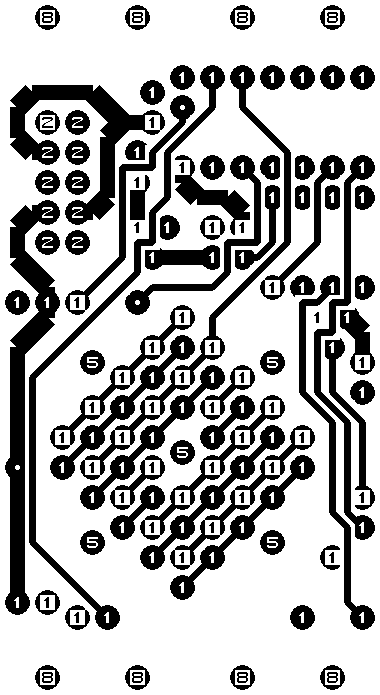

The component side layer.

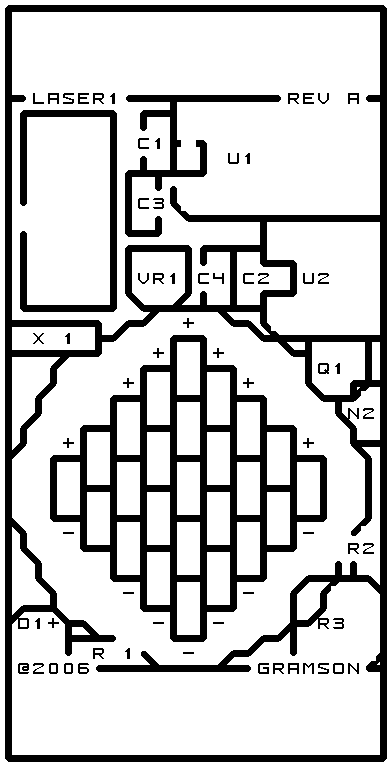

The artwork layer.

laser1.gbl

The RS-274X "Gerber" back (solder side) layer.

laser1.gtl

The RS-274X "Gerber" top (component side) layer.

laser1.gal

The RS-274X "Gerber" artwork layer.

laser1.drl

The "Excellon" NC drill file.

laser1.tol

The "Excellon" tool rack file.

4. Software

There is no software yet.

5. Issues

Any fabrication issues are listed here.

• The hole for the laser beam is too small.
• The alignment holes are too small for any reasonable hardware.
• The alignment holes are too close, move further out.
• X1 is too close to N1.
