This is revision A of the IROD Base1 Module.

IROD Base1 (Revision A)

Table of Contents

• 1. Introduction
• 2. Hardware
  • 2.1 Circuit Schematic
  • 2.2 Printed Circuit Board
• 3. Issues

1. Introduction

The IROD Base1 module provides a PCB to which a Sharp GP2Y0D340K infraread proximity detection module can be soldered along with a resistor, a capacitor, and a 3-pin connector.

2. Hardware

The hardware consists of a circuit schematic and a printed circuit board.

2.1 Circuit Schematic

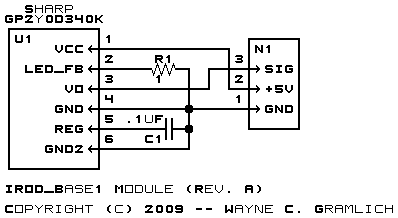

The schematic for the IROD Base1 Module is shown below:

The parts list kept in a separate file -- irod_base1.ptl.

2.2 Printed Circuit Board

The printed circuit board files are listed below:

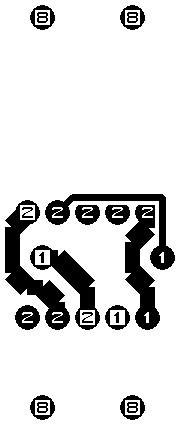

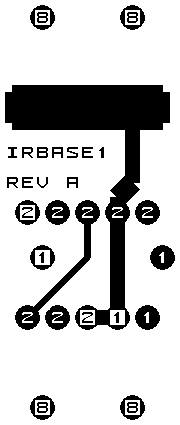

The solder side layer.

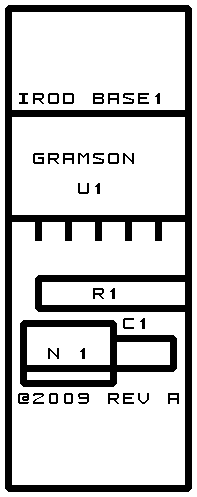

The component side layer.


The artwork layer.

irod_base1.gbl

The RS-274X "Gerber" back (solder side) layer.

irod_base1.gtl

The RS-274X "Gerber" top (component side) layer.

irod_base1.gal

The RS-274X "Gerber" artwork layer.

irod_base1.drl

The "Excellon" NC drill file.

irod_base1.tol

The tool rack file.

3. Issues

Any issues that come up are listed here.
