This is revision A of the Encoder_Show1 Module.

Encoder_Show1 Module (Revision A)

1. Introduction
2. Hardware
- 2.1 Circuit Schematic
- 2.2 Printed Circuit Board
3. Issues

1. Introduction

The Encoder_Show1 module shows the outputs of an encoder module on 3 LED's

2. Hardware

The hardware consists of a circuit schematic and a printed circuit board.

2.1 Circuit Schematic

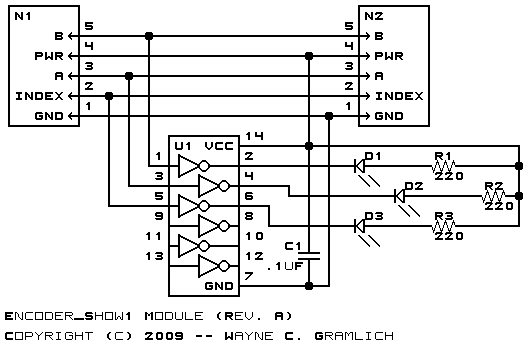

The schematic for the Encoder_Show1 Module is shown below:

This schematic shows 5 sensors, but at most 3 should be installed. A pair of sensor should be installed at U1 and U4 or U2 and U3. If you need an index pulse, install a sensor at U5.

The parts list kept in a separate file -- encoder_show1.ptl.

2.2 Printed Circuit Board

The printed circuit board files are listed below:

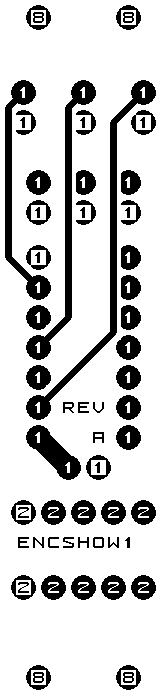

encoder_show1_back.png: The solder side layer.

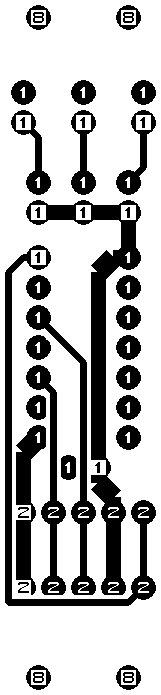

encoder_show1_front.png: The component side layer.

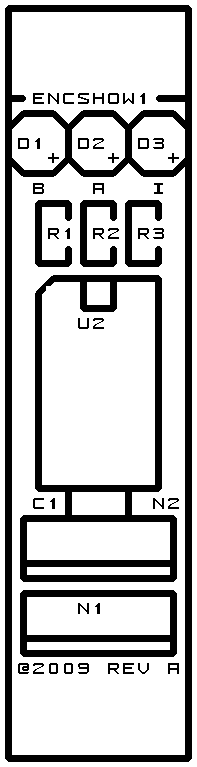

encoder_show1_artwork.png: The artwork layer.
encoder_show1.gbl: The RS-274X "Gerber" back (solder side) layer.
encoder_show1.gtl: The RS-274X "Gerber" top (component side) layer.
encoder_show1.gal: The RS-274X "Gerber" artwork layer.
encoder_show1.drl: The "Excellon" NC drill file.
encoder_show1.tol: The tool rack file.

3. Issues
