This is the Revision B verion of the Sense1 Module.

Sense1 Module (Revision A)

Table of Contents

• 1. Introduction
• 2. Hardware
  • 2.1 Circuit Schematic
  • 2.2 Printed Circuit Board
• 3. Issues

1. Introduction

The Sense11 module provides a sensor for detecting a reflected IR beam.

2. Hardware

The hardware consists of a circuit schematic and a printed circuit board.

2.1 Circuit Schematic

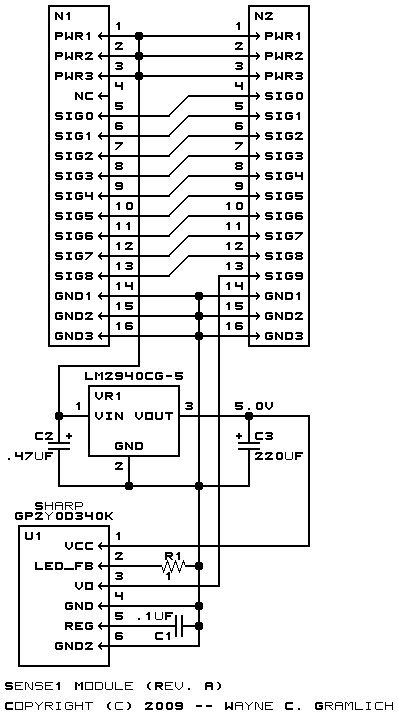

The schematic for the Sense1 Module is shown below:

The parts list kept in a separate file -- sense1.ptl.

2.2 Printed Circuit Board

The printed circuit board files are listed below:

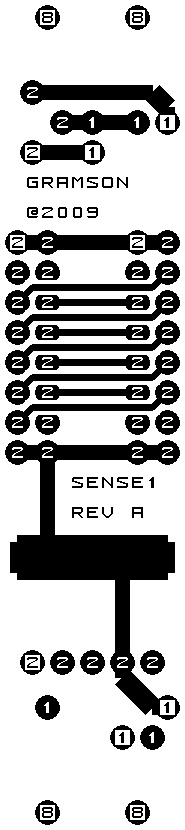

The solder side layer.

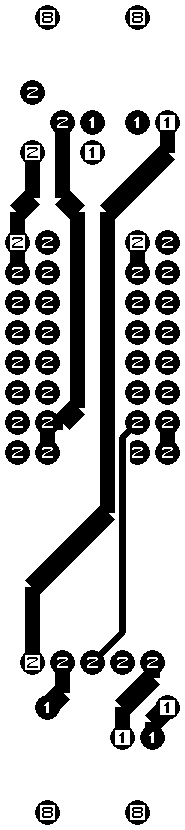

The component side layer.

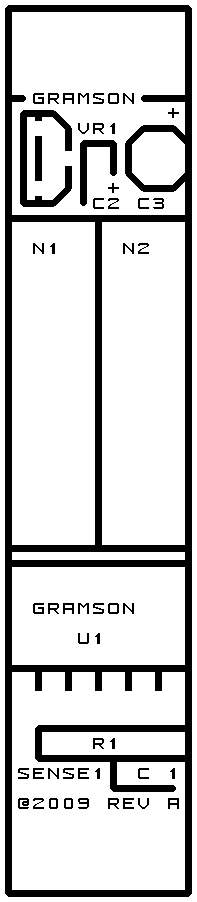

The artwork layer.

sense1.gbl

The RS-274X "Gerber" back (solder side) layer.

sense1.gtl

The RS-274X "Gerber" top (component side) layer.

sense1.gal

The RS-274X "Gerber" artwork layer.

sense1.drl

The "Excellon" NC drill file.

sense1.tol

The "Excellon" tool rack file.

3 Issues

Any fabrication issues will be listed here.
