This is the Revision A verion of the Display10 Module.

Display10 Module (Revision A)

Table of Contents

• 1. Introduction
• 2. Hardware
  • 2.1 Circuit Schematic
  • 2.2 Printed Circuit Board
• 3. Issues

1. Introduction

The Display10 module displays the status of up to 10 Sense1 modules.

2. Hardware

The hardware consists of a circuit schematic and a printed circuit board.

2.1 Circuit Schematic

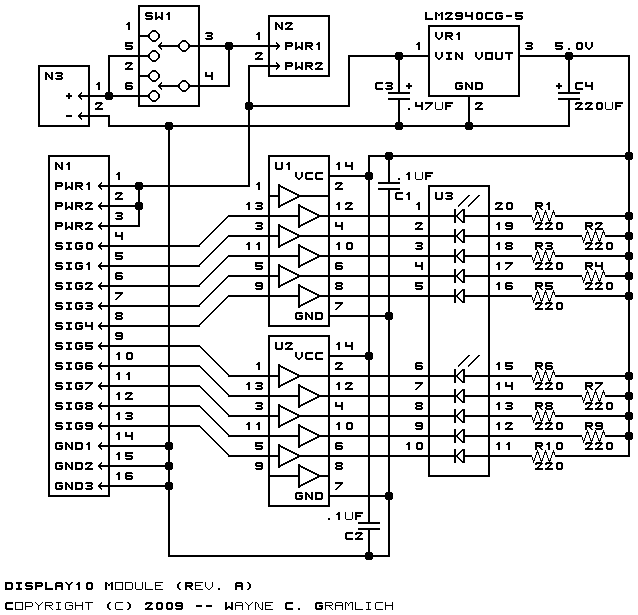

The schematic for the Display10 Module is shown below:

The parts list kept in a separate file -- display10.ptl.

2.2 Printed Circuit Board

The printed circuit board files are listed below:

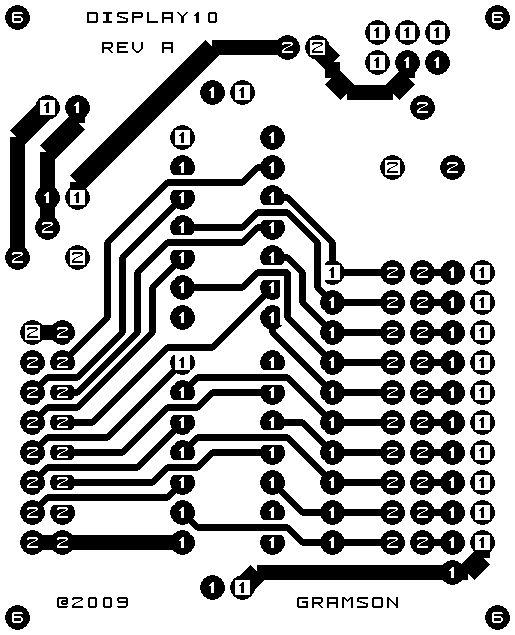

The solder side layer.

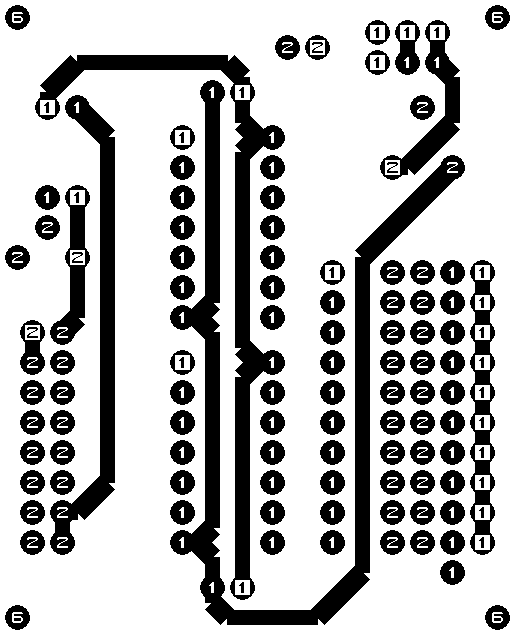

The component side layer.

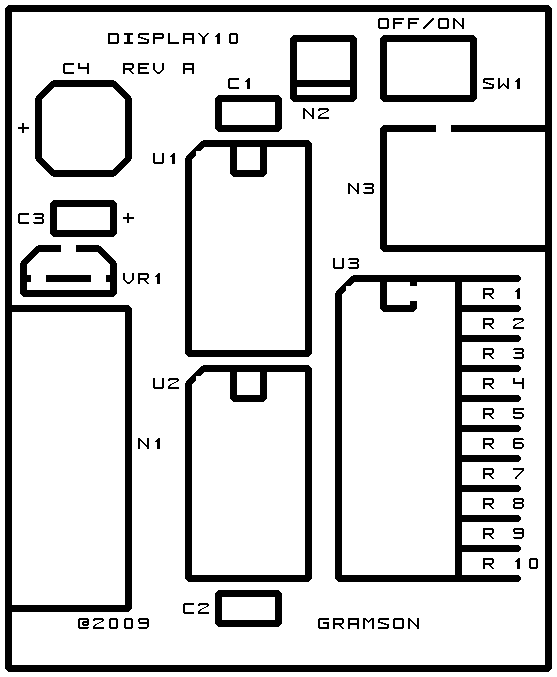

The artwork layer.

display10.gbl

The RS-274X "Gerber" back (solder side) layer.

display10.gtl

The RS-274X "Gerber" top (component side) layer.

display10.gal

The RS-274X "Gerber" artwork layer.

display10.drl

The "Excellon" NC drill file.

display10.tol

The "Excellon" tool rack file.

3 Issues

Any fabrication issues will be listed here.
