This is the Revision B version of the Sonar8 module. The status of this project is work in progress.

Sonar8 Module (Revision B)

This document is also available as a PDF document.

1. Introduction
2. Programming
3. Hardware
- 3.1 Circuit Schematic
- 3.2 Printed Circuit Board
4. Software
5. Issues

1. Introduction

The Sonar8 module is used to send and receive ultra sonic sonar pulses using the Robot Electronics SRF04 sonar ranging module. Up to 8 SRF04's can be controlled by this module.

2. Programming

There is no programming specification for the Sonar1 RoboBrick yet.

3. Hardware

The hardware consists of a circuit schematic and a printed circuit board.

3.1 Circuit Schematic

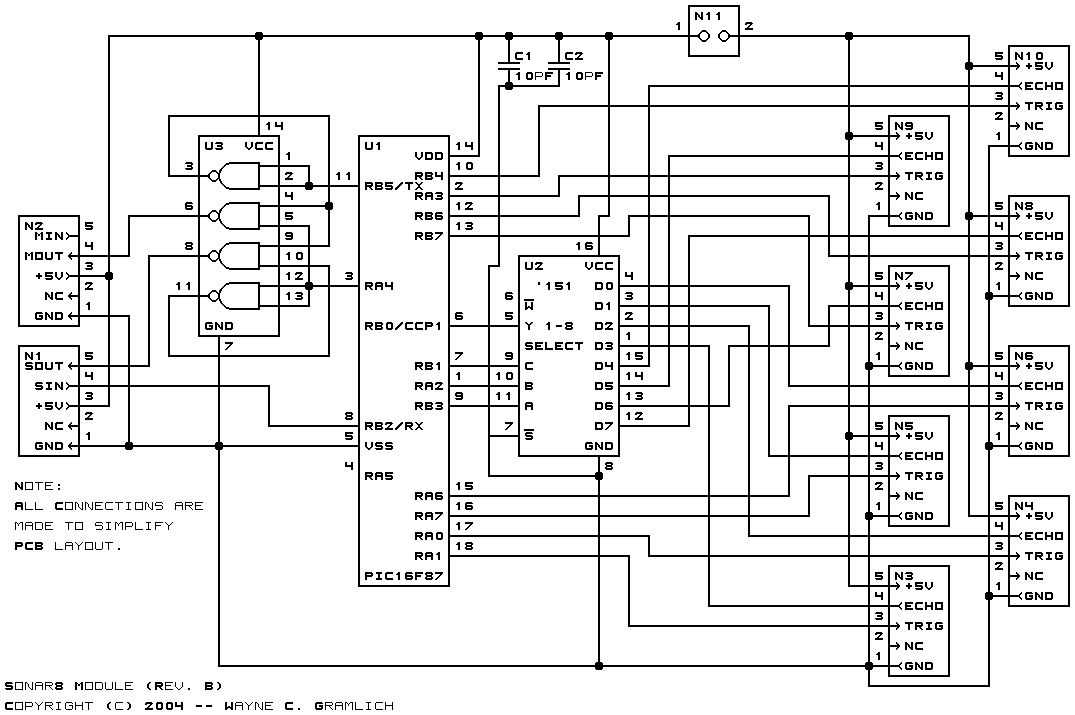

The schematic for the Sonar1 RoboBrick is shown below:

The parts list kept in a separate file -- sonar8.ptl.

3.2 Printed Circuit Board

The printed circuit board files are listed below:

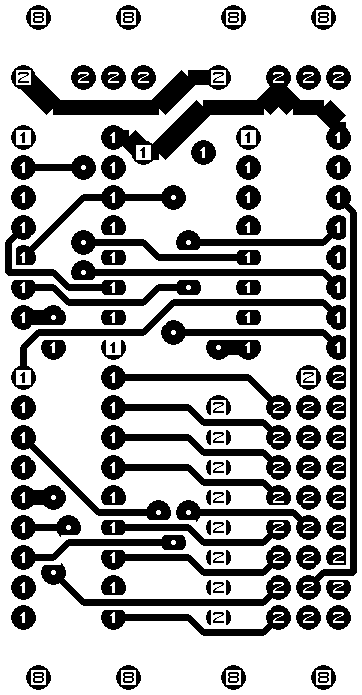

sonar8_back.png: The solder side layer.

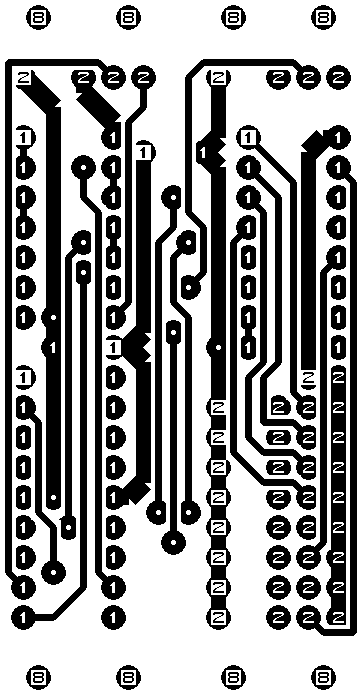

sonar8_front.png: The component side layer.

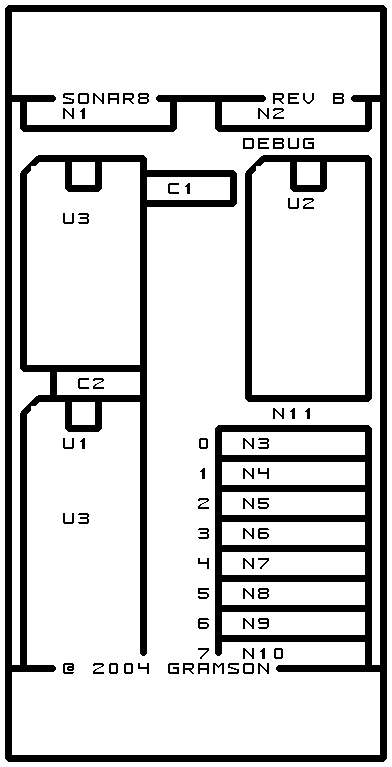

sonar8_artwork.png: The artwork layer.
sonar8.gbl: The RS-274X "Gerber" back (solder side) layer.
sonar8.gtl: The RS-274X "Gerber" top (component side) layer.
sonar8.gal: The RS-274X "Gerber" artwork layer.
sonar8.drl: The "Excellon" NC drill file.
sonar8.tol: The "Excellon" tool rack file.

4. Software

The Sonar8 software is available as one of:

sonar8.ucl: The µCL source file.
sonar8.asm: The resulting human readable PIC assembly file.
sonar8.lst: The resulting human readable PIC listing file.
sonar8.hex: The resulting Intel^® Hex file that can be fed into a PIC12C5xx programmer.

5. Issues

The fabrication issues are listed here.
