Sonar8 Module (Revision A)

Table of Contents

This document is also available as a PDF document.

• 1. Introduction
• 2. Programming
• 3. Hardware
  • 3.1 Circuit Schematic
  • 3.2 Printed Circuit Board
• 4. Software
• 5. Issues

1. Introduction

The Sonar8 module is used to send and receive ultra sonic sonar pulses using the SonarSR module. Up to 8 SonarSR's can be controlled by this module.

2. Programming

There is no programming specification for the Sonar1 RoboBrick yet.

3. Hardware

The hardware consists of a circuit schematic and a printed circuit board.

3.1 Circuit Schematic

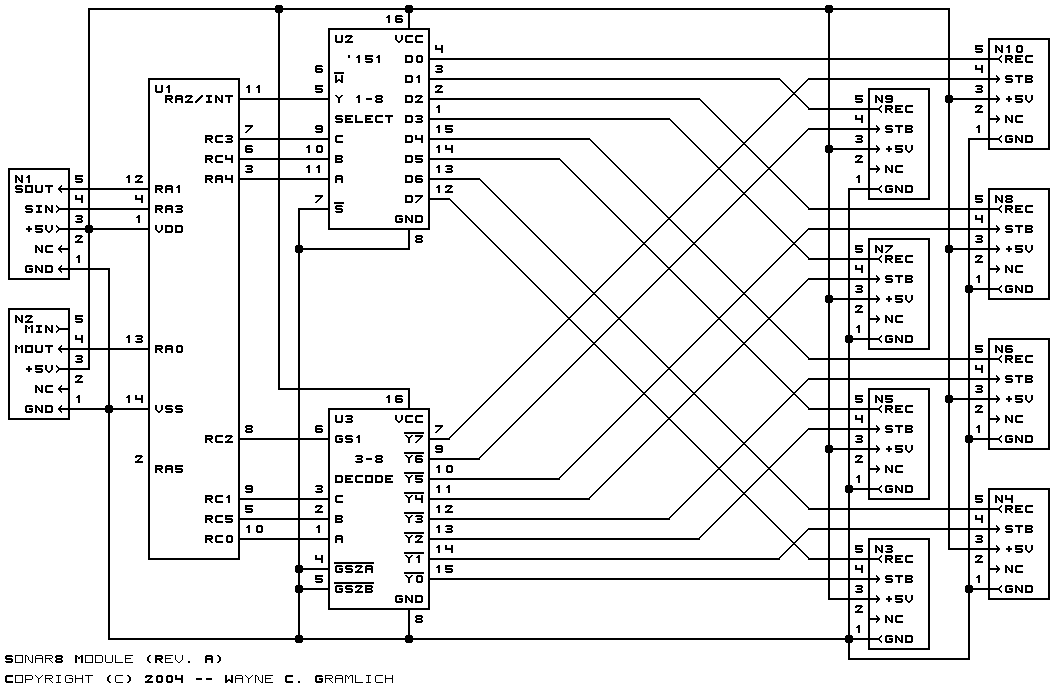

The schematic for the Sonar1 RoboBrick is shown below:

The parts list kept in a separate file -- sonar8.ptl.

3.2 Printed Circuit Board

The printed circuit board files are listed below:

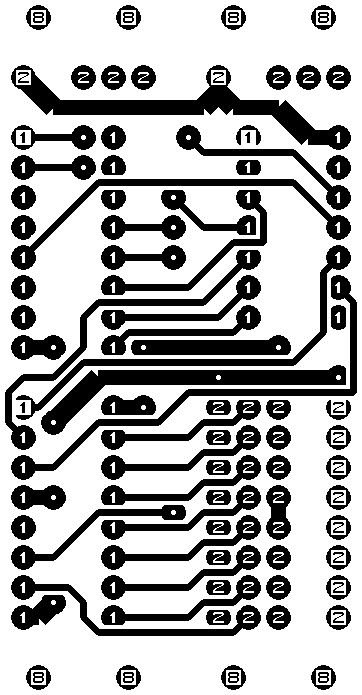

The solder side layer.

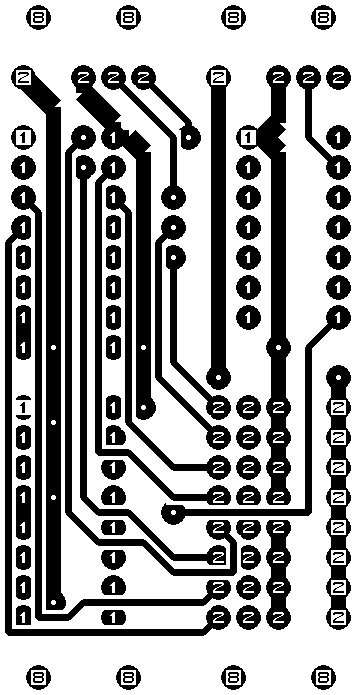

The component side layer.

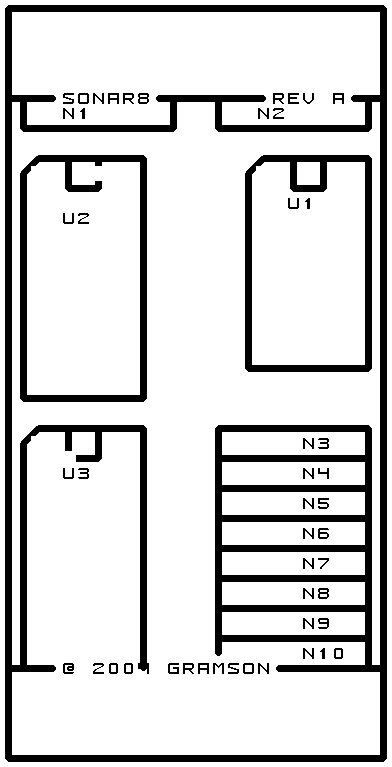

The artwork layer.

sonar8.gbl

The RS-274X "Gerber" back (solder side) layer.

sonar8.gtl

The RS-274X "Gerber" top (component side) layer.

sonar8.gal

The RS-274X "Gerber" artwork layer.

sonar8.drl

The "Excellon" NC drill file.

sonar8.tol

The "Excellon" tool rack file.

4. Software

The Sonar8 software is available as one of:

sonar8.ucl

The µCL source file.

sonar8.asm

The resulting human readable PIC assembly file.

sonar8.lst

The resulting human readable PIC listing file.

sonar8.hex

The resulting Intel^® Hex file that can be fed into a PIC12C5xx programmer.

5. Issues

The fabrication issues are listed here.
