This is the Revision A version of the ScanBase Module. The status of this project is work in progress.

ScanBase Module (Revision A)

Table of Contents

This document is also available as a PDF document.

• 1. Introduction
• 2. Hardware
  • 2.1 Schematic
  • 2.2 Printed Circuit Board
• 3. Issues

1. Introduction

The ScanBase module provides the electrical connection to the ScanPanel module, which, in turn, provides the electrical connection to the Sense3 module.

2. Hardware

...

2.1 Schematic

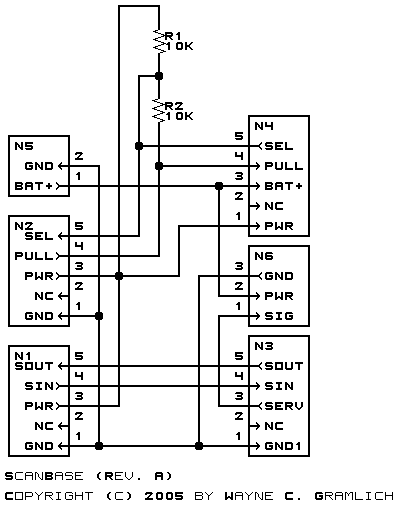

The schematic is shown below:

2.2 Printed Circuit_Board

The printed circuit files are listed below:

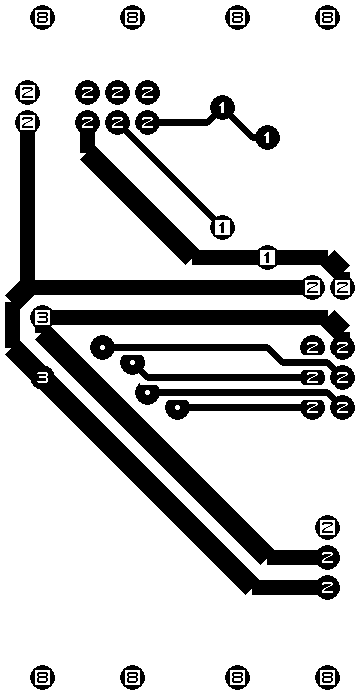

The solder side layer.

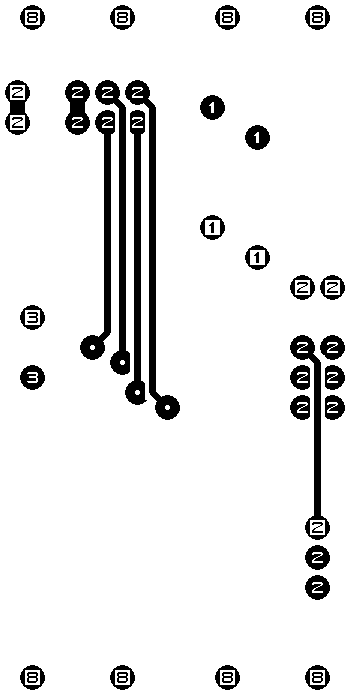

The component side layer.

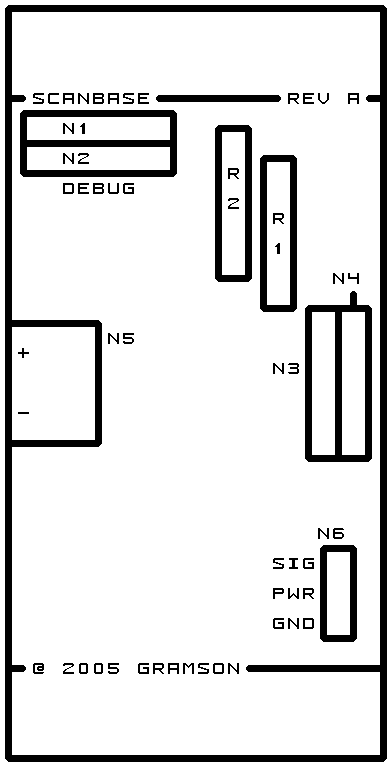

The artwork layer.

scanbase.gbl

The RS-274X "Gerber" back (solder side) layer.

scanbase.gtl

The RS-274X "Gerber" top (component side) layer.

scanbase.gal

The RS-274X "Gerber" artwork layer.

scanbase.drl

The "Excellon" NC drill file.

scanbase.tol

The "Excellon" tool rack file.

3. Issues

Any fabrication issues will be listed here.
