PIC876Hub10 Robobrick (Revision B)

Table of Contents

This document is also available as a PDF document.

1. Introduction

The PIC876Hub10 RoboBrick is a master RoboBrick that can control up to N slave RoboBricks. It uses a PIC16F876 microcontroller from MicroChip®. One of the hub ports can be connected to a communications RoboBrick to provide the ability to talk to the development platform.

There is a three terminal connector, one for ground and the other two for power. One power connector is connected to a standard 3-terimal 5 volt regulator to provide 5 volts to the slave RoboBricks. The other power regulator is only sensed for voltage level. The microcontroller has a built in analog to digital converter that allows it to sense the power level on both power terminals. When the power goes below a preset level, the robot platform can choose to enter a `hungry' behavior mode.

2. Programming

There is no programming specification for the PIC876Hub10 RoboBrick yet.

3. Hardware

The hardware consists of a circuit schematic and a printed circuit board.

3.1 Circuit Schematic

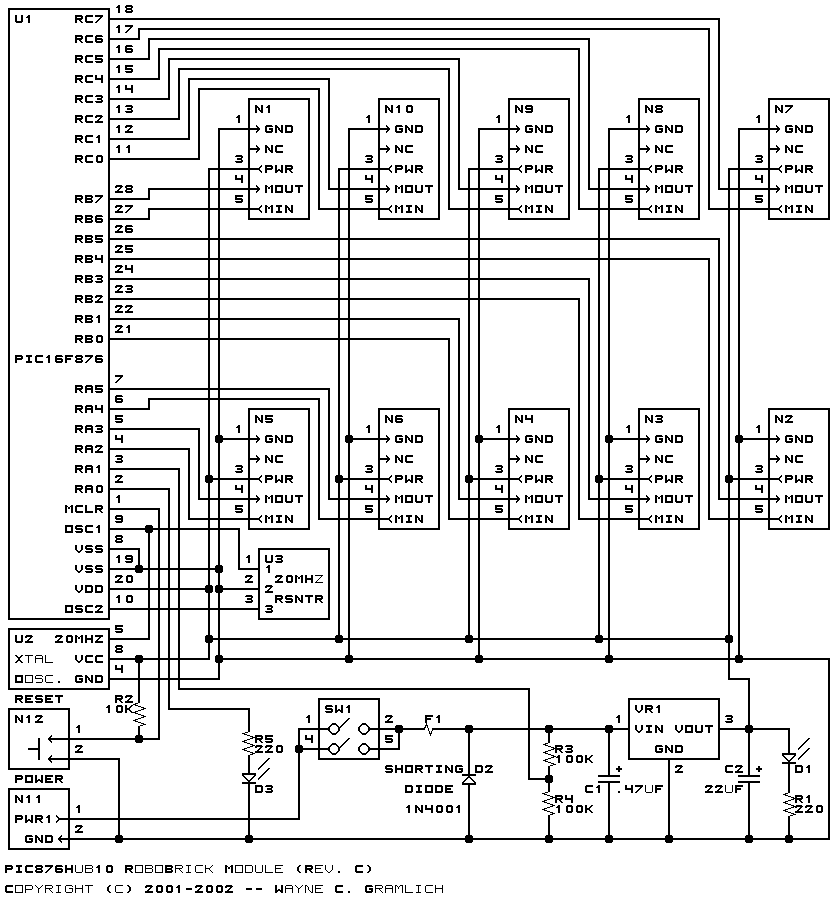

The schematic for the PIC876Hub10 RoboBrick is shown below:

PIC876Hub10 Schematic

The parts list kept in a separate file -- pic876hub10.ptl.

3.2 Printed Circuit Board

The printed circuit board files are listed below:

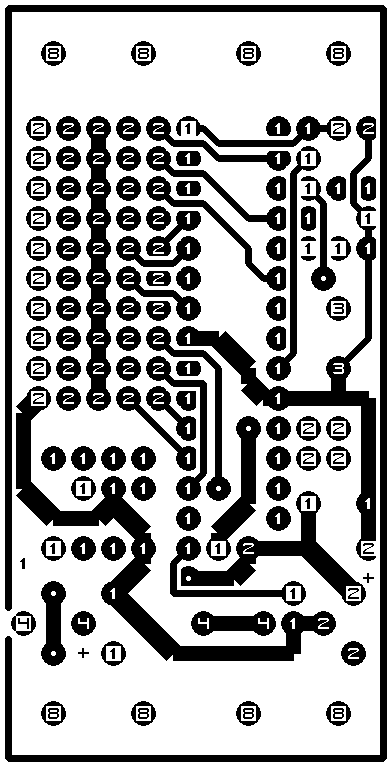

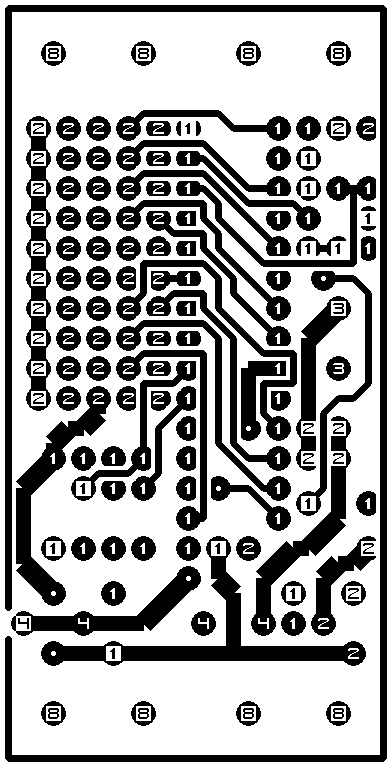

The solder side layer.

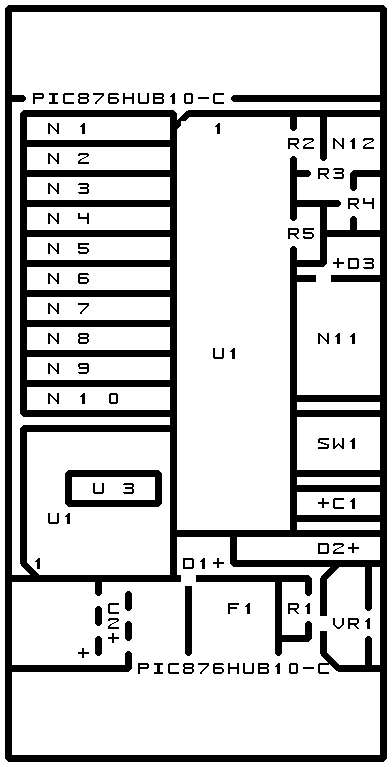

The component side layer.
The artwork layer.
pic876hub10.gbl
The RS-274X "Gerber" back (solder side) layer.
pic876hub10.gtl
The RS-274X "Gerber" top (component side) layer.
pic876hub10.gal
The RS-274X "Gerber" artwork layer.
pic876hub10.drl
The "Excellon" NC drill file.
pic876hub10.tol
The "Excellon" tool rack file.

4. Software

There is no software for this RoboBrick yet.
