This is the Revision A verion of the OOPicHub15 RoboBrick. The status of this project is work in progress.

OOPicHub15 Robobrick (Revision A)

Table of Contents

This document is also available as a PDF document.

1. Introduction

The OOPicHub15 RoboBrick is a master RoboBrick that can control up to 15 slave RoboBricks. It uses a OOPic (or OOPic II) microcontroller from Savage Innovations. It contains a battery connection, power switch, and a 5 volt linear voltage regulator with fuse.

2. Programming

There is no programming specification for the OOPICHub15 RoboBrick yet. However, the table below allows you to figure out which pins on the OOPIC II go to the connectors on the OOPICHub15.

OOPICHub15 OOPIC II OOPICHub15 Pin
Name Direction I/O Pin
N1 In 1 7 1
Out 14 8 2
N2 In 2 9 3
Out 13 10 4
N3 In 3 11 5
Out 12 12 6
N4 In 4 13 7
Out 11 14 8
N5 In 5 15 9
Out 10 16 10
N6 In 6 17 11
Out 9 18 12
N7 In 7 19 13
Out 8 20 14
N8 In 16 25 19
Out 31 26 20
N9 In 17 27 21
Out 30 28 22
N10 In 18 29 23
Out 29 30 24
N11 In 19 31 25
Out 28 32 26
N12 In 20 33 27
Out 27 34 28
N13 In 21 35 29
Out 26 36 30
N14 In 22 37 31
Out 25 38 32
N15 In 23 39 33
Out 24 40 34
The ribbon cable that connects the OOPICHub15 to the OOPIC II has a 34 pin female (2×17) connector on one end and a 40 pin female (2×20) connector on the other. Pin 40 is connected to pin 34, thereby offsetting all of the pin numbers by 6. is a 34 conductor ribbon cable where pin 34 on hte

3. Hardware

The hardware consists of a circuit schematic and a printed circuit board.

3.1 Circuit Schematic

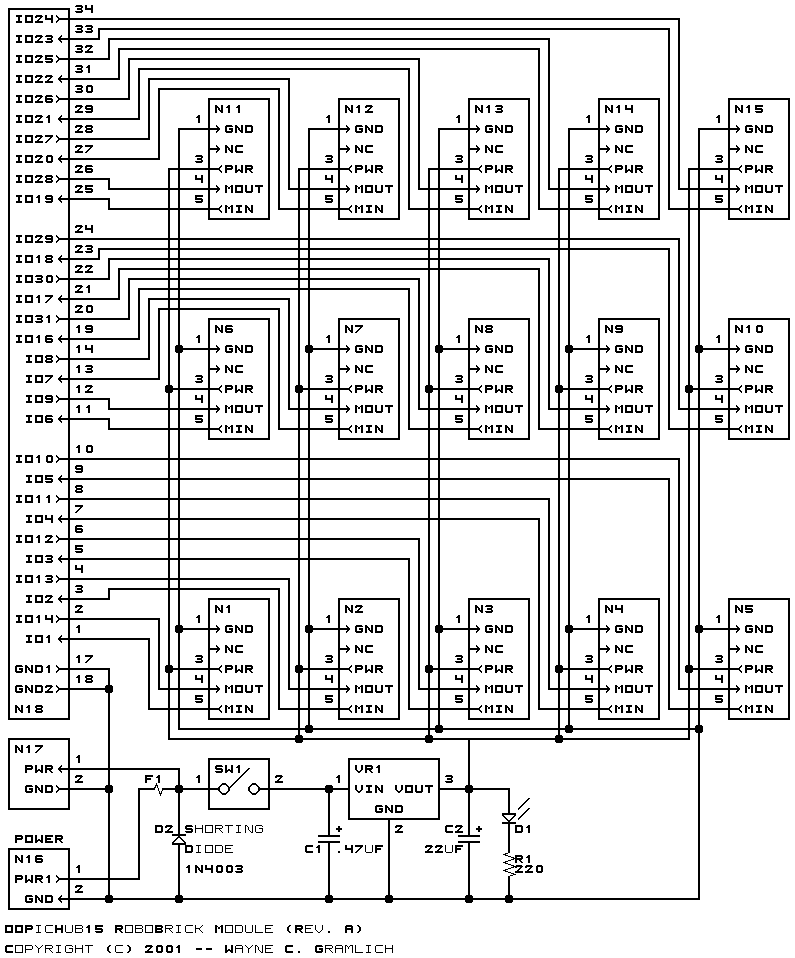

The schematic for the Oopichub15 RoboBrick is shown below:

OOPicHub15 Schematic

The parts list kept in a separate file -- oopichub15.ptl.

3.2 Printed Circuit Board

The printed circuit board files are listed below:

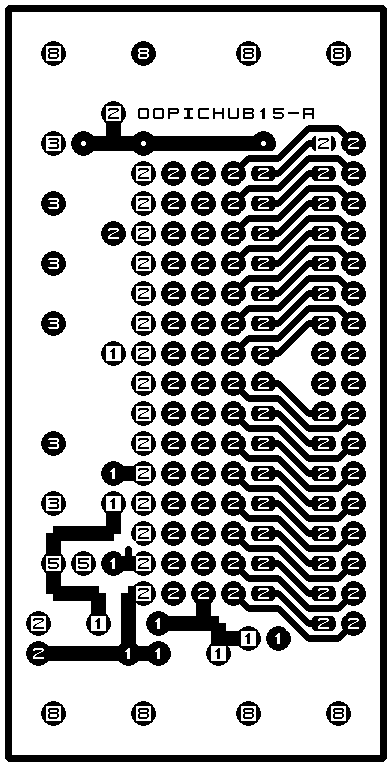

The solder side layer.

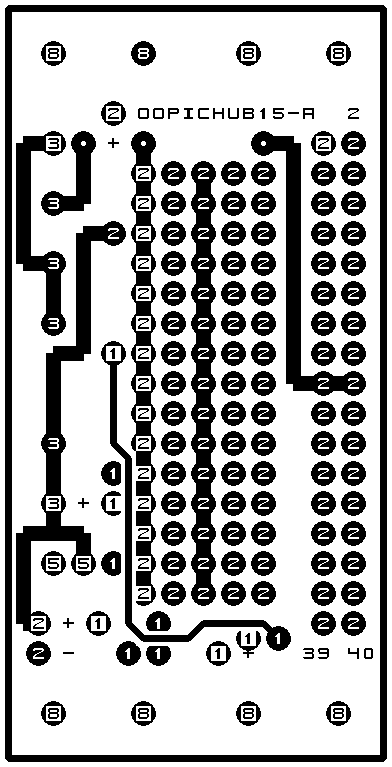

The component side layer.

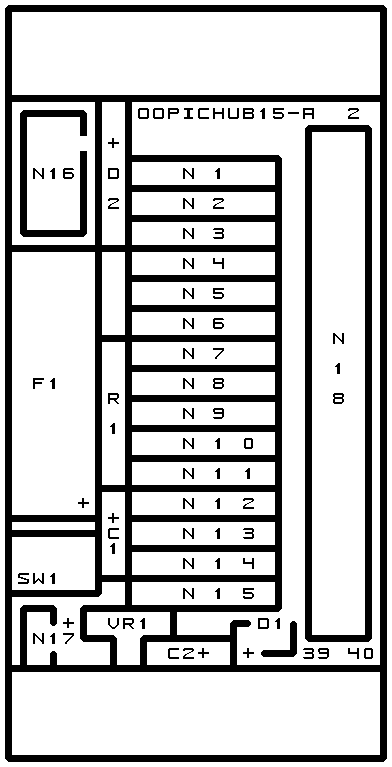

The artwork layer.
oopichub15.gbl
The RS-274X "Gerber" back (solder side) layer.
oopichub15.gtl
The RS-274X "Gerber" top (component side) layer.
oopichub15.gal
The RS-274X "Gerber" artwork layer.
oopichub15.drl
The "Excellon" NC drill file.
oopichub15.tol
The "Excellon" tool rack file.

4. Software

There is no software for this RoboBrick yet.

5. Issues

The following fabrication issues came up:
