Multiplex8 Module (Revision A)

Table of Contents

This document is also available as a PDF document.

• 1. Introduction
• 2. Hardware
  • 2.1 Circuit Schematic
  • 2.2 Printed Circuit Board
• 3. Issues

1. Introduction

This module is used to multiplex the UART on a master module amongst 8 slave modules.

2. Hardware

The hardware consists of a circuit schematics and a printed circuit board.

2.1 Circuit Schematic

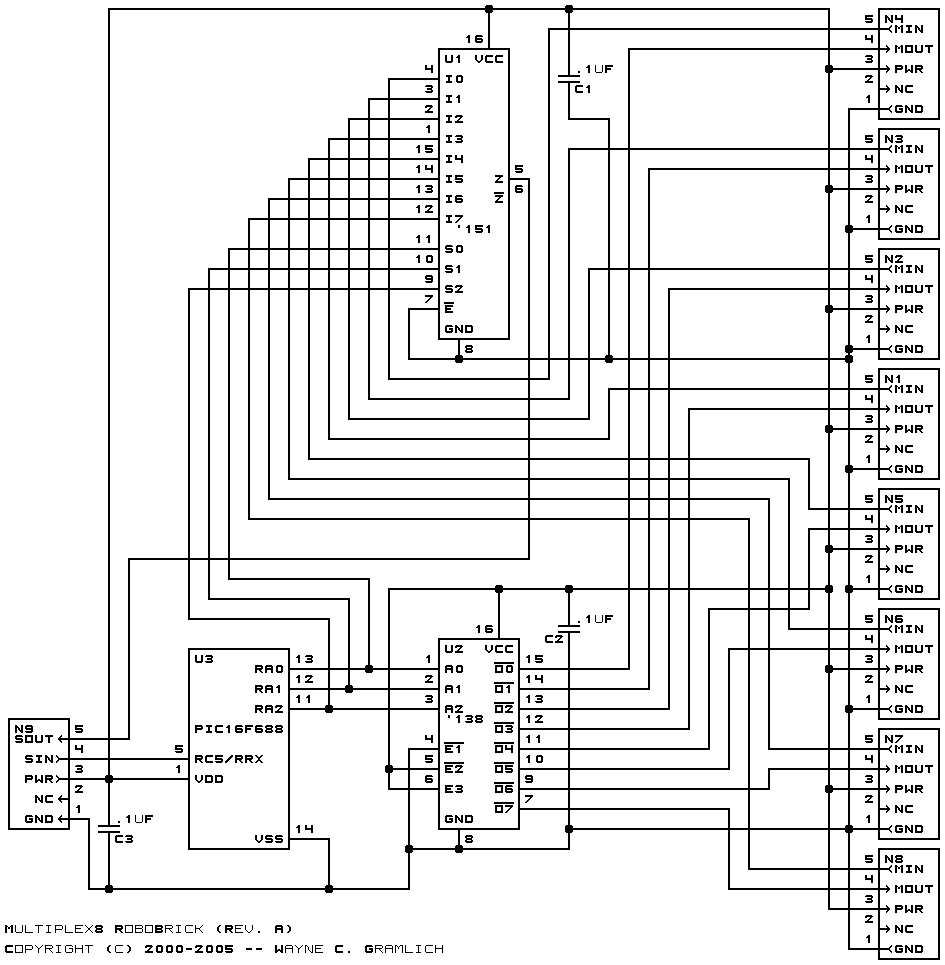

The schematic for the Multiplex8 Module is shown below:

The parts list kept in a separate file -- multiplex8.ptl.

2.2 Printed Circuit Board

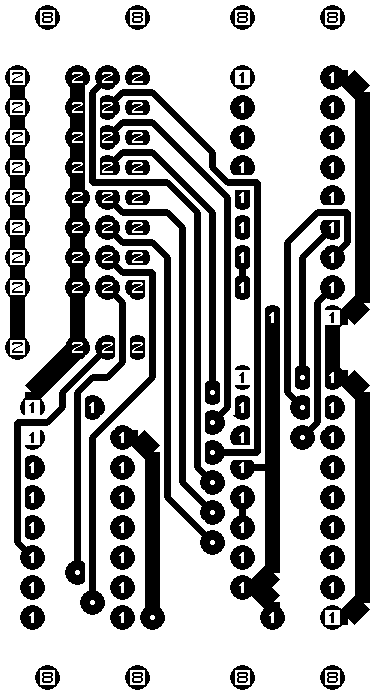

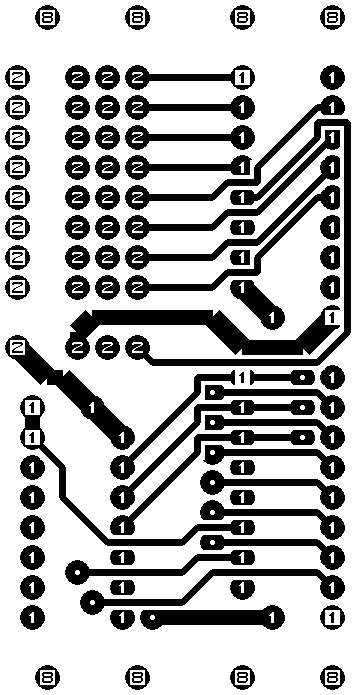

The solder side layer.


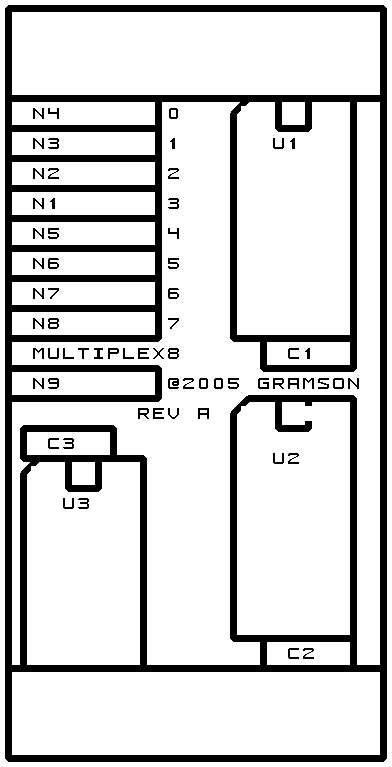

The component side layer.


The artwork layer.

multiplex8.gbl

The RS-274X "Gerber" back (solder side) layer.

multiplex8.gtl

The RS-274X "Gerber" top (component side) layer.

multiplex8.gal

The RS-274X "Gerber" artwork layer.

multiplex8.drl

The "Excellon" NC drill file.

multiplex8.tol

The "Excellon" NC drill rack file.

3. Issues

Any construction issues are listed here:
