LCD32Holder Module (Revision C)

Table of Contents

This document is also available in PDF format.

• 1. Introduction
• 2. Hardware
  • 2.1 Circuit Schematic
  • 2.2 Printed Circuit Board
• 3. Issues

1. Introduction

The LCD32HOLDERHolder module adapts the Lumex LCM-S01602DTR/M to the LCD32HOLDER module.

2. Hardware

The hardware consists of a circuit schematic and a printed circuit board.

2.1 Circuit Schematic

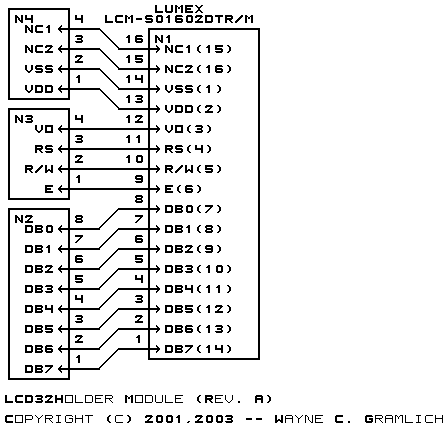

The schematic for the LCD32HOLDERHolder module is shown below:

The parts list kept in a separate file -- lcd32holder.ptl.

2.2 Printed Circuit Board

The printed circuit board files are listed below:

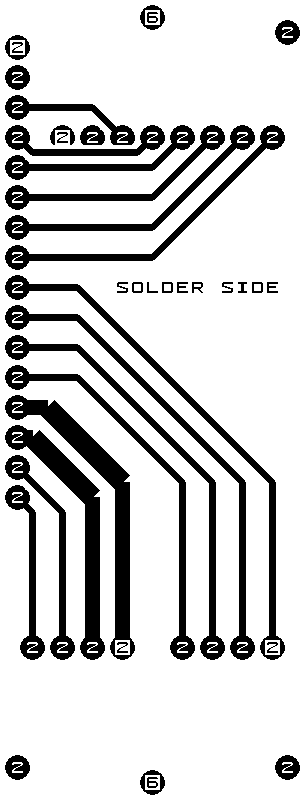

The solder side layer.

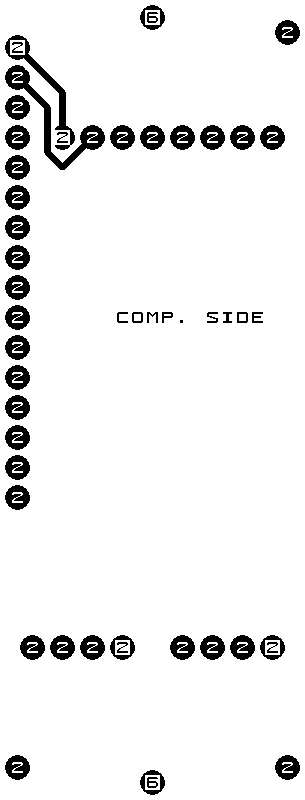

The component side layer.

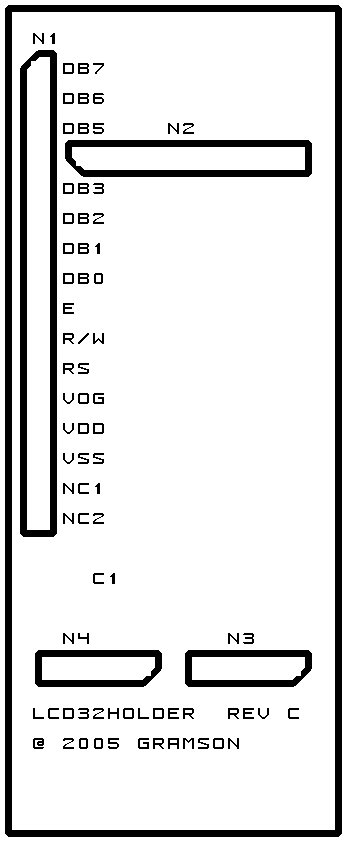

The artwork layer.

lcd32holder.gbl

The RS-272X "Gerber" back (solder side) layer.

lcd32holder.gtl

The RS-272X "Gerber" top (component side) layer.

lcd32holder.gal

The RS-272X "Gerber" artwork layer.

lcd32holder.drl

The "Excellon" NC drill file.

lcd32holder.tol

The "Excellon" tool rack file.

3. Issues

The following fabrication issues came up:

• The stand-off next to N3 just happens to land on top of a surface mount resistor on the LCD board. Move it up by .15".
