This is the Revision A verion of the IRProximity3 RoboBrick. The status of this project is work in progress.

IRProximity3 Robobrick (Revision A)

Table of Contents

This document is also available in PDF format.

• 1. Introduction
• 2. Programming
• 3. Hardware
  • 3.1 Circuit Schematic
  • 3.2 Printed Circuit Board
• 4. Software
• 5. Issues

1. Introduction

The IRProximity3 RoboBrick provides the ability to seek towards an IR beacon. In addition, it can be used to do simple IR proximity detection.

2. Programming

There is no programming specification yet.

3. Hardware

The hardware consists of a circuit schematic and a printed circuit board.

3.1 Circuit Schematic

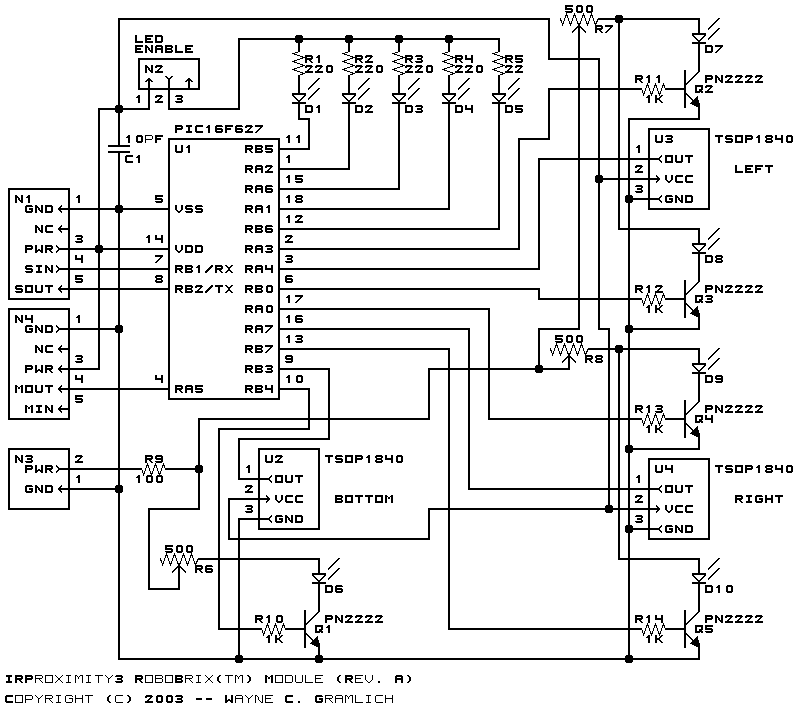

The schematic for the IRProximity3 RoboBrick is shown below:

The parts list kept in a separate file -- irproximity3.ptl.

3.2 Printed Circuit Board

The printed circuit board files are listed below:

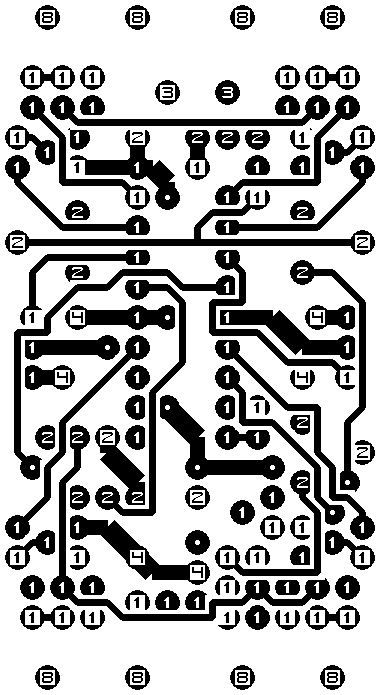

The solder side layer.

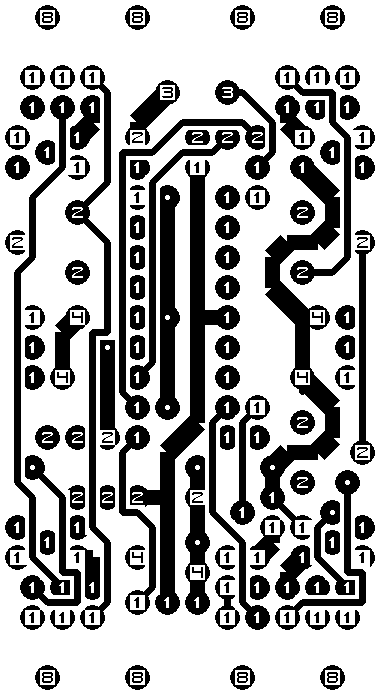

The component side layer.

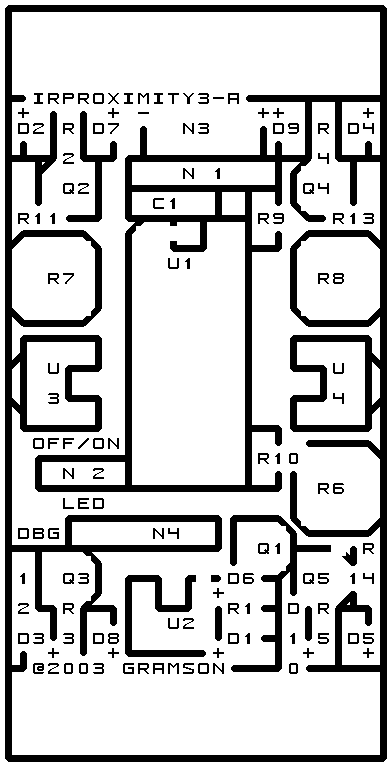

The artwork layer.

irproximity3.gbl

The RS-274X "Gerber" back (solder side) layer.

irproximity3.gtl

The RS-274X "Gerber" top (component side) layer.

irproximity3.gal

The RS-274X "Gerber" artwork layer.

irproximity3.drl

The "Excellon" NC drill file.

irproximity3.tol

The "Excellon" tool rack file.

4. Software

There is no software available yet.

5. Issues

Any fabrication issues are listed here.
