CompassDT1 Robobrick (Revision B)
This document is also available in
PDF format.
The CompassDT1 RoboBrick is a RoboBrick that
can be used to connect to a
Devantech
CMPS01 compass module. This compass uses two
Philips KMZ10A megnetic field sensors to measure
the direction accurate to 0-3599 (i.e. .01 degree
accuracy.) Please note that the magnetic field
inside a build can be off by 10's of degrees.
{To be written}
The hardware consists of a circuit schematic and
a printed circuit board.

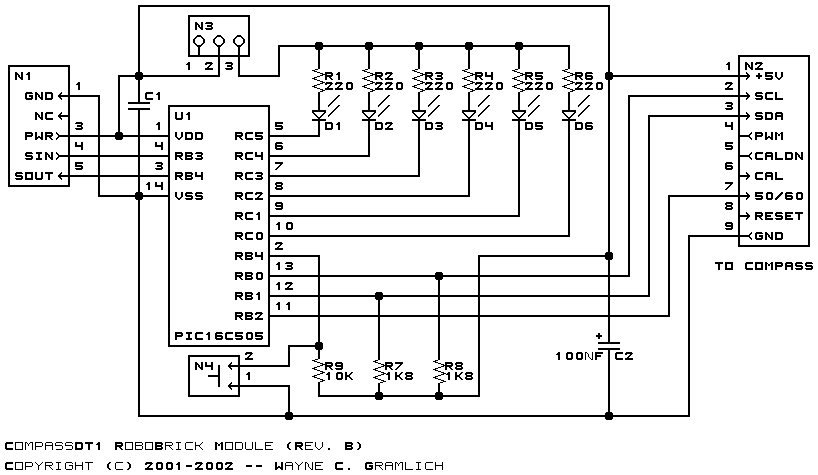

The schematic for the CompassDT1 RoboBrick is shown below:
The parts list kept in a separate file --
compassdt1.ptl.
The printed circuit board files are listed below:
-
-

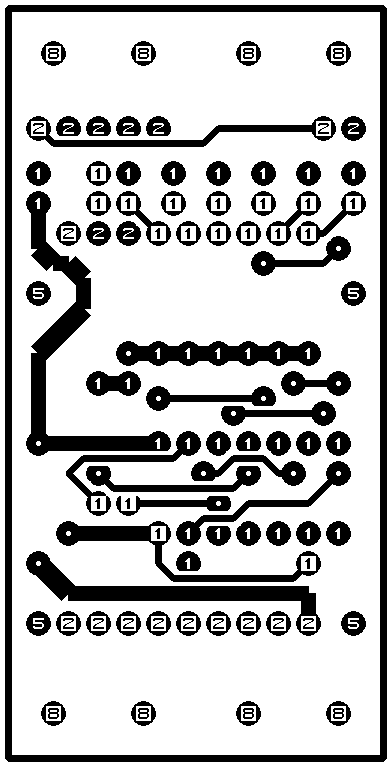

The solder side layer.
-
-

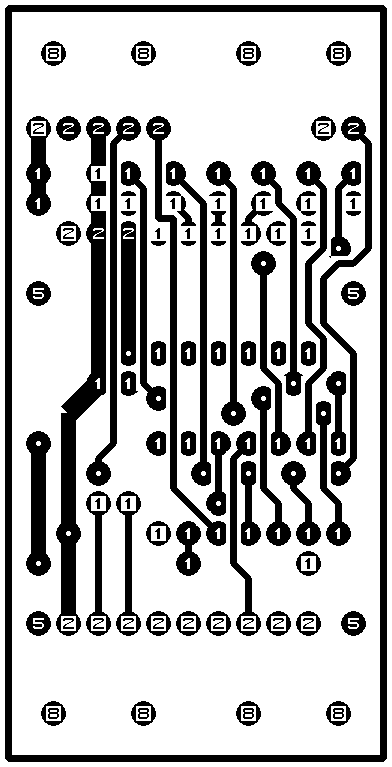

The component side layer.
-
-

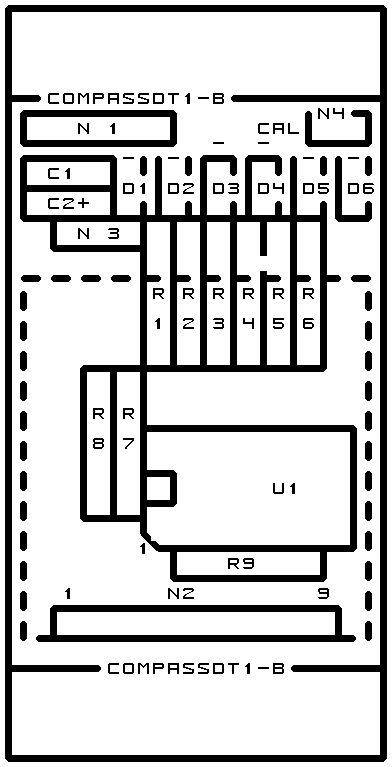

The artwork layer.
-
compassdt1.gbl
-
The RS-272X "Gerber" back (solder side) layer.
-
compassdt1.gtl
-
The RS-272X "Gerber" top (component side) layer.
-
compassdt1.gal
-
The RS-272X "Gerber" artwork layer.
-
compassdt1.drl
-
The "Excellon" NC drill file.
-
compassdt1.tol
-
The "Excellon" tool rack file.
The CompassDT1 software is available as one of:
-
compassdt1.ucl
-
The µCL source file.
-
compassdt1.asm
-
The resulting human readable PIC assembly file.
-
compassdt1.lst
-
The resulting human readable PIC listing file.
-
compassdt1.hex
-
The resulting Intel® Hex file
that can be fed into a PIC16C505 programmer.
The CompassDT1 test software is available as one of:
-
compassdt1_test.ucl
-
The µCL source file.
-
compassdt1_test.asm
-
The resulting human readable PIC assembly file.
-
compassdt1_test.lst
-
The resulting human readable PIC listing file.
-
compassdt1_test.hex
-
The resulting Intel® Hex file
that can be fed into a PIC16F628 programmer.
Any fabrication issues that come up are listed here.
