Terminate2 Module (Revision B)

Table of Contents

This document is also available in PDF format.

1. Introduction

The Terminate2 module is a dual RoboBricks2 bus terminatator. It can be used to terminate either or both ends of a RoboBricks2 cable. In addition, via jumpers, this module can be converted into a RoboBricks2 splice module.

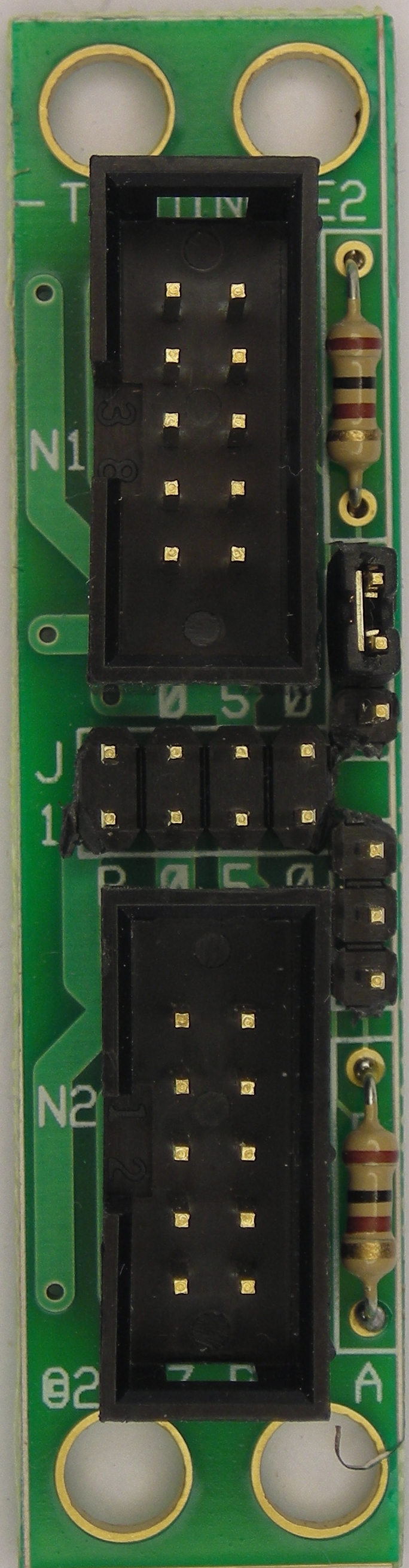

Terminate2 (Rev. A) Picture

2. Hardware

The hardware consists of a circuit schematic and a printed circuit board.

2.1 Circuit Schematic

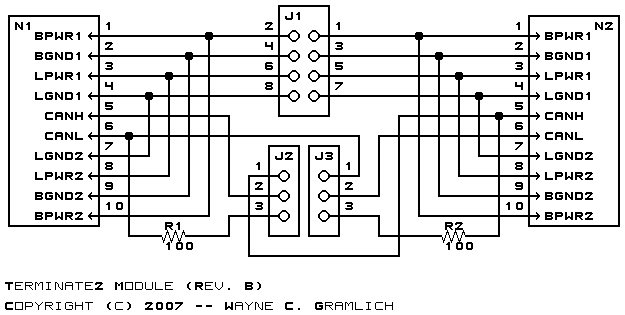

The schematic for the Terminate2 Module is shown below:

Terminate2 Schematic

The parts list kept in a separate file -- terminate2.ptl.

2.2 Printed Circuit Board

The printed circuit board files are listed below:

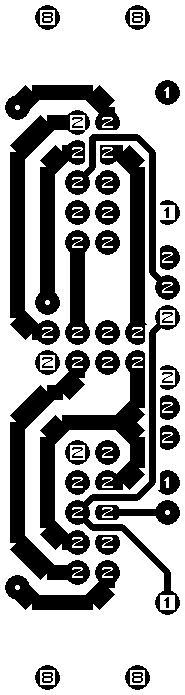

The solder side layer.

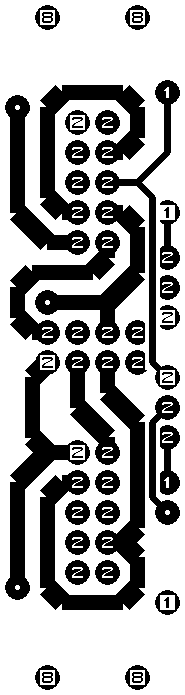

The component side layer.

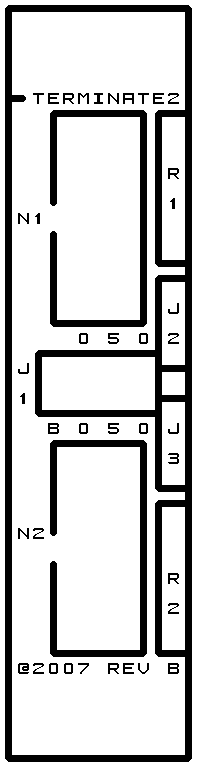

The artwork layer.
terminate2.gbl
The RS-274X "Gerber" back (solder side) layer.
terminate2.gtl
The RS-274X "Gerber" top (component side) layer.
terminate2.gal
The RS-274X "Gerber" artwork layer.
terminate2.drl
The "Excellon" NC drill file.
terminate2.tol
The tool rack file.

3. Issues

Anyh fabrication issues will be listed here.
