This is revision A of the Terminate2 Module.

Terminate2 Module (Revision A)

Table of Contents

This document is also available in PDF format.

• 1. Introduction
• 2. Hardware
  • 2.1 Circuit Schematic
  • 2.2 Printed Circuit Board
• 3. Issues

1. Introduction

The Terminate2 module is a dual RoboBricks2 bus terminatator. It can be used to terminate either or both ends of a RoboBricks2 cable. In addition, via jumpers, this module can be converted into a RoboBricks2 splice module.

2. Hardware

The hardware consists of a circuit schematic and a printed circuit board.

2.1 Circuit Schematic

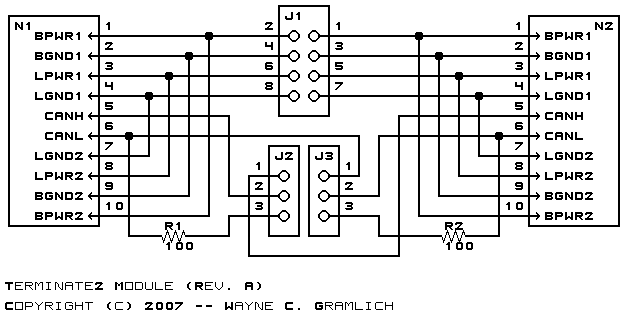

The schematic for the Terminate2 Module is shown below:

The parts list kept in a separate file -- terminate2.ptl.

2.2 Printed Circuit Board

The printed circuit board files are listed below:

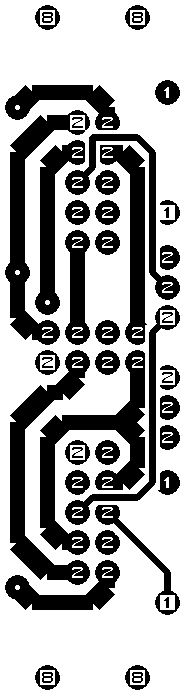

The solder side layer.

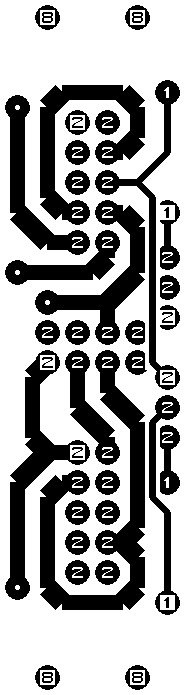

The component side layer.

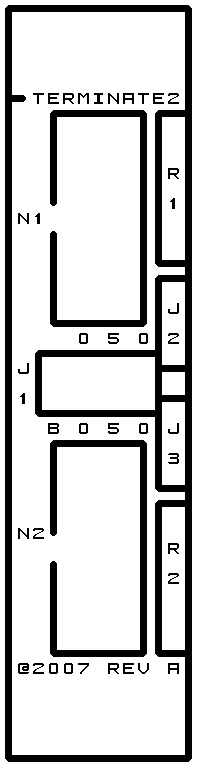

The artwork layer.

terminate2.gbl

The RS-274X "Gerber" back (solder side) layer.

terminate2.gtl

The RS-274X "Gerber" top (component side) layer.

terminate2.gal

The RS-274X "Gerber" artwork layer.

terminate2.drl

The "Excellon" NC drill file.

terminate2.tol

The tool rack file.

3. Issues

The following issues came up:

• One end of R2 connects to J3-3 (correct) and the other end connects to N2-6 (incorrect). It should be N2-5. There is no easy board patch for this one.
