This is revision A of the RC6 module.

RC6 Module (Revision A)

Table of Contents

• 1. Introduction
• 2. Programming
• 3. Hardware
  • 3.1 Circuit Schematic
  • 3.2 Printed Circuit Board
• 4. Software
• 5. Issues

1. Introduction

The RC6 module can decode a PPM signal from a Radio Control Receiver. In addition, the 6 signals are directed to individual connectors.

2. Programming

{TBD}

3. Hardware

The hardware consists of a circuit schematic and a printed circuit board.

The parts list kept in a separate file -- rc6.ptl.

3.1 Circuit Schematic

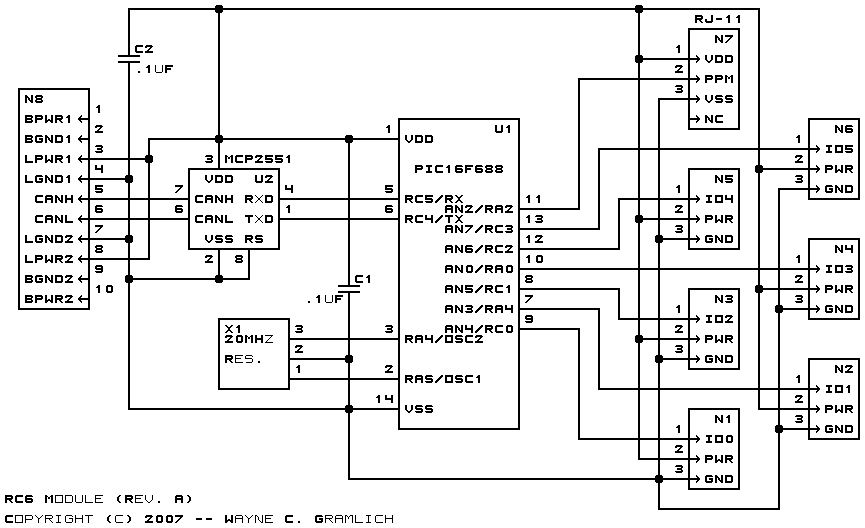

The schematic for the RC6 module is shown below:

3.2 Printed Circuit Board

The printed circuit board files are listed below:

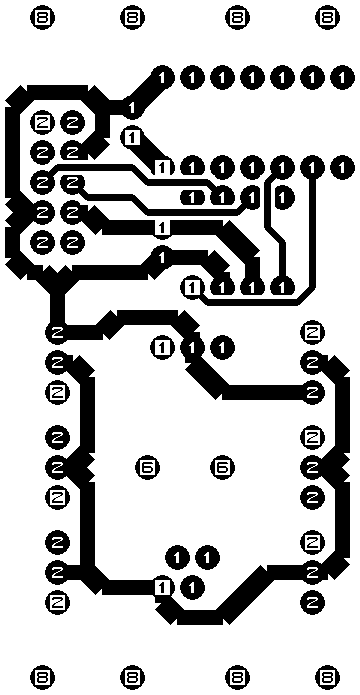

The solder side layer.

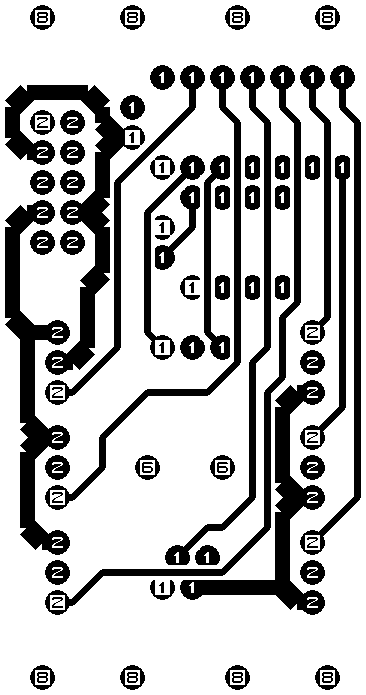

The component side layer.

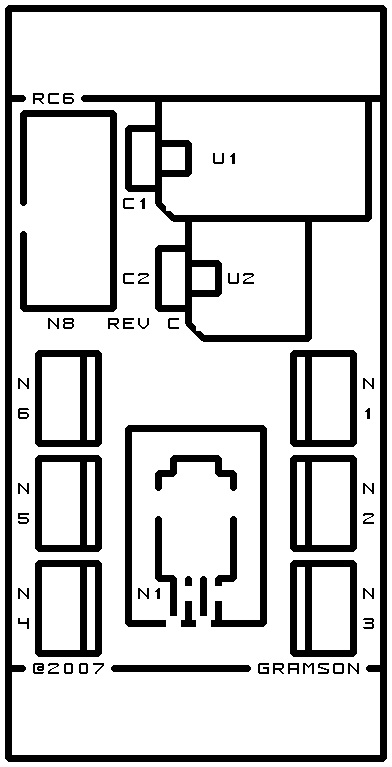

The artwork layer.

rc6.gbl

The RS-274X "Gerber" back (solder side) layer.

rc6.gtl

The RS-274X "Gerber" top (component side) layer.

rc6.gal

The RS-274X "Gerber" artwork layer.

rc6.gml

The RS-274X "Gerber" mask layer.

rc6.drl

The "Excellon" NC drill file.

rc6.tol

The "Excellon" tool rack file.

4. Software

The following files are available:

rc6.ucl

The µCL source code for the RC6 module.

rc6.asm

The RC6 module assembly code file.

rc6.lst

The RC6 module listing file.

rc6.hex

The µCL RC6 Intel^® Hex file.

5. Issues

Any fabrication issues will be listed here.
