BayLTC Table Project

The BayLTC needs some portable tables to put their layouts on. This project is the design drawings for the table.

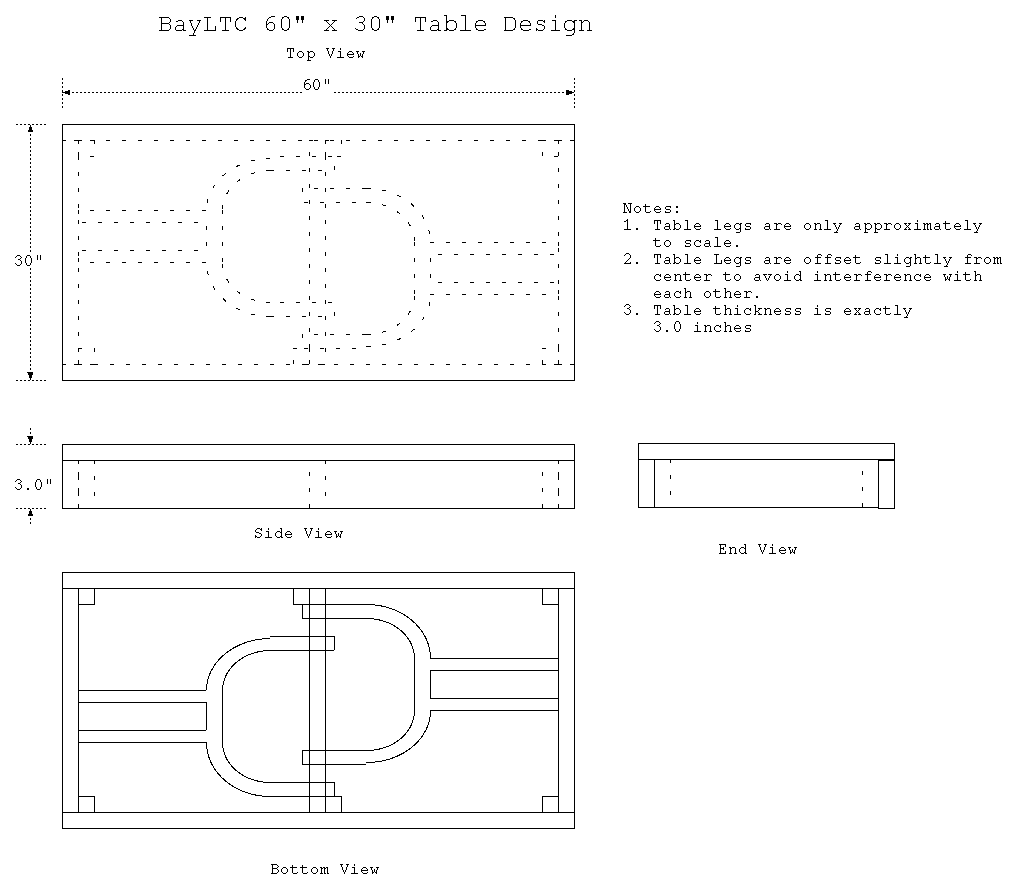

The big table is 30" × 60":

30x60 Table Drawing

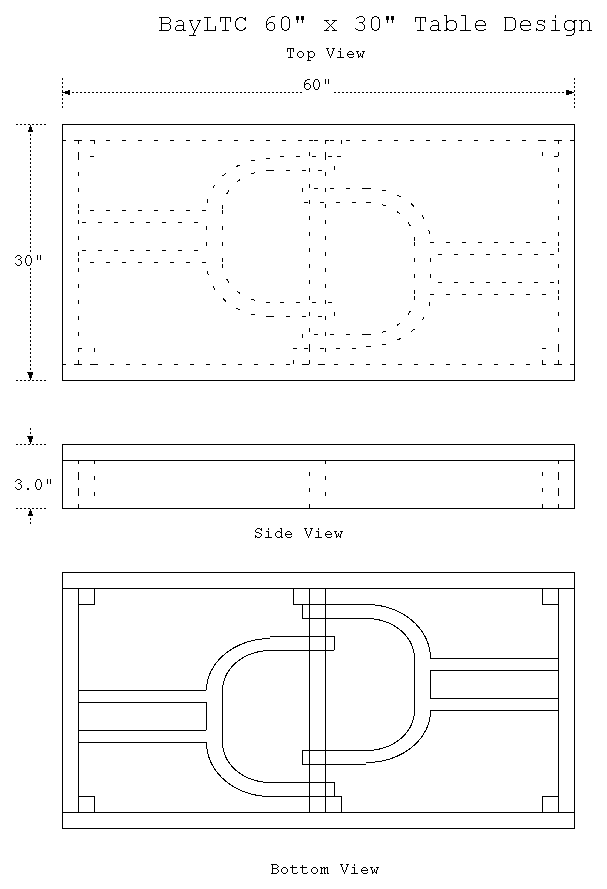

The big table with the stuff on the left trimmed off to print a little nicer:

30x60 Table Trimmed Drawing

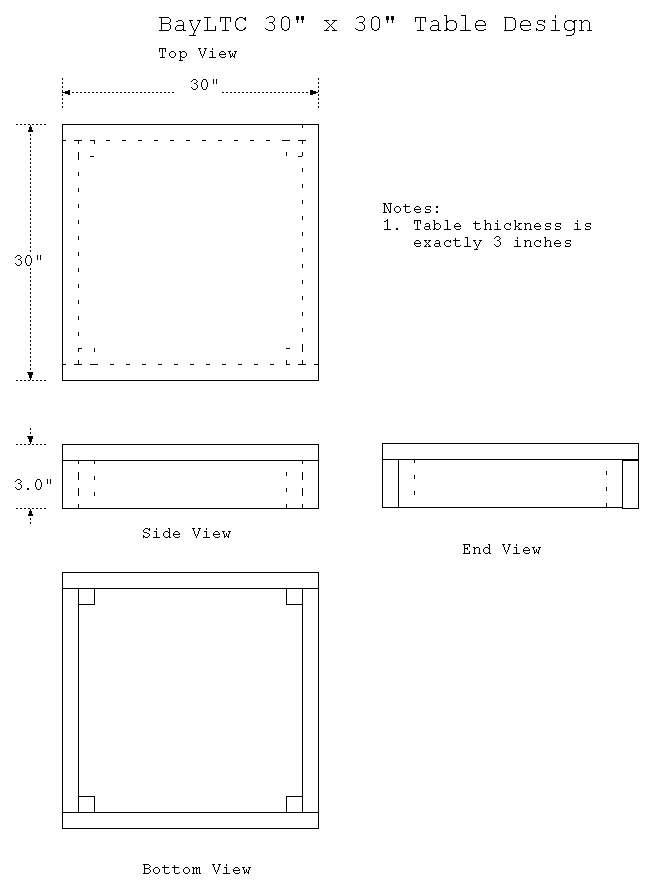

The small table is 30" × 30":

30x30 Table Drawing

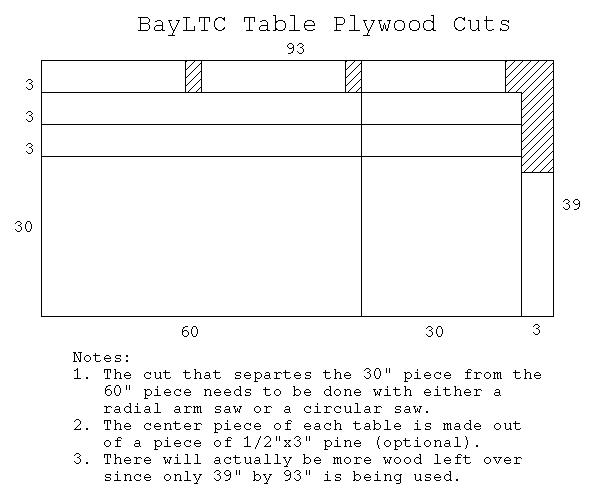

The plywood cuts look as follows:

Plywood Drawing

The folding legs come from: http://www.foldinglegs.com/.
