This is revision A of the EMDP3 DIP48Z adaptor and it is currently a work in progress.

EMDP3 DIP48Z Universal Rewiring Plug (Revision A)

Introduction

The EMDP3 DIP48Z universal rewiring plug allows arbitrary connections from the EMDP3 bus to the 48-pin ZIF socket.

Cirucuit Schematics

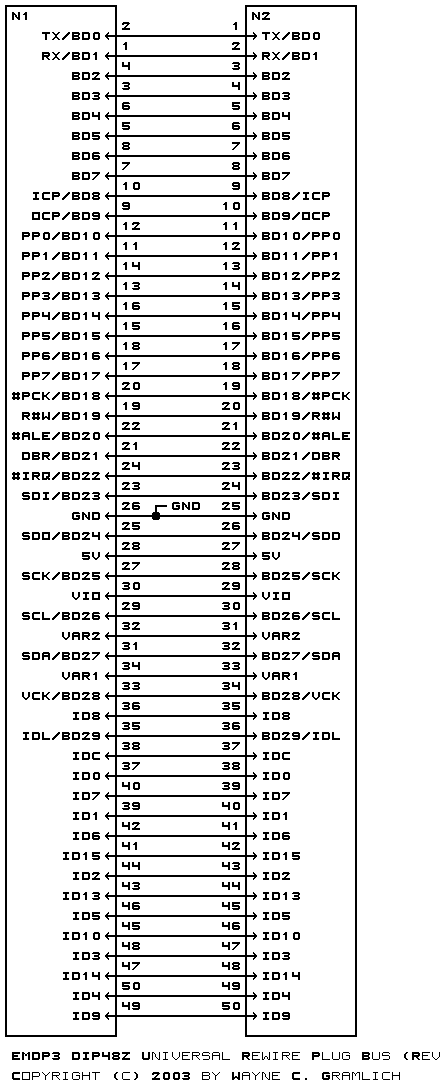

Bus

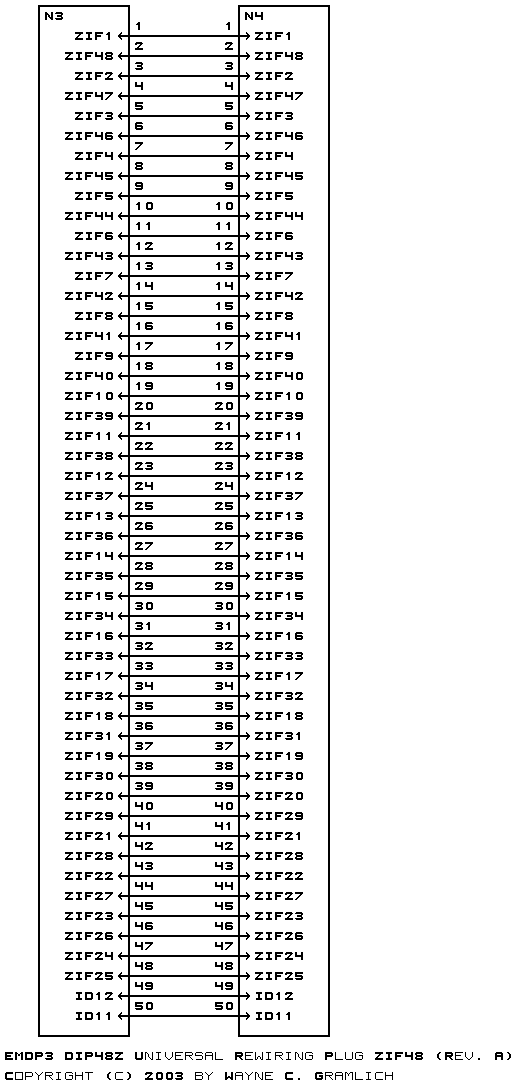

ZIF Socket

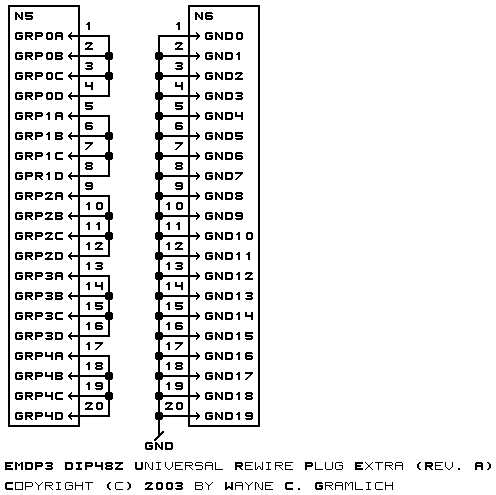

Rewire Plug Sockets
