This is revision A of the EMDP1 PIC8 Plug and it is currently a work in progress.

EMDP1 PIC8 Plug (Rev. A)

Table of Contents

Introduction

The EMDP1 PIC8 plug is used to program 8-pin and 14-pin PIC's. This includes the PIC12C5xx, PIC12C67x, and PIC16C505.

The plug identifier is 0000 0000 0000.

Proc. Pkg. Clk. Data Vpp Vdd (+5V) Vss (Gnd)
12C5xx,12C67x 8 6 (38) 7 (39) 4 1 8 (40)
16C505 14 12 (38) 13 (39) 4 1 14 (40)
Summary 40 38 39 4 1 40

Schematic

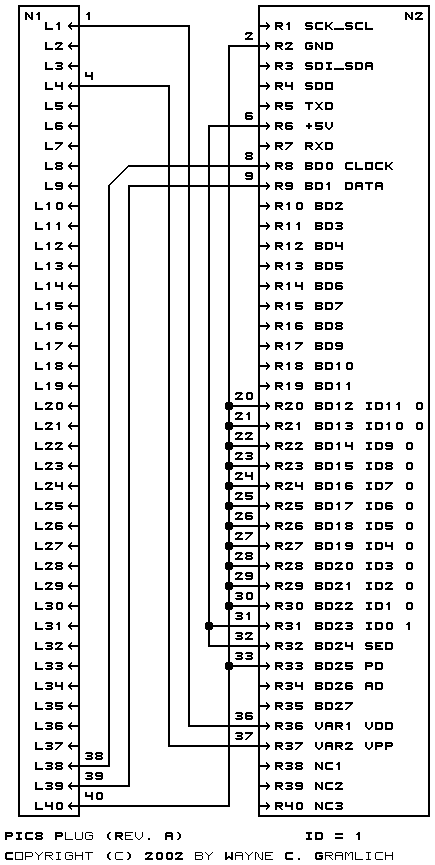

The schematic for the PIC Serial Adaptor is shown below:
PIC Serial Adaptor Pic8 Plug Schematic

The parts list is in a separate file.

Printed Circuit Board

The following files are available for the printed circuit board:

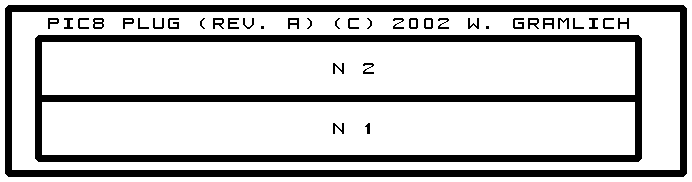

The PIC8 artwork (silk screen) layer.

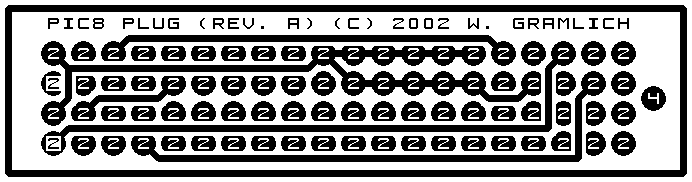

The PIC8 back (component) layer.

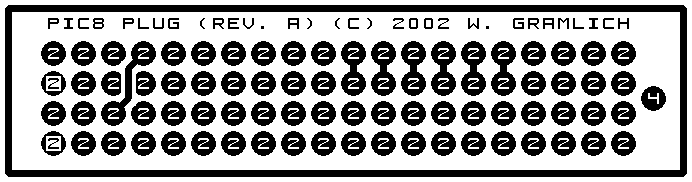

The PIC8 front (solder) layer.
pic8.gal
The PIC8 RS274X `Gerber' file for the pic8 plug artwork (silk screen) layer.
pic8.gbl
The PIC8 RS274X `Gerber' file for the pic8 plug back (component) layer.
pic8.gtl
The PIC8 RS274X `Gerber' file for the pic8 plug front (solder) layer.
pic8.gml
The PIC8 RS274X `Gerber' file for the pic8 plug solder mask layer.
pic8.drl
The PIC8 `Excellon' drill file for the pic8 plug board.
pic8.tol
The PIC8 drill file rack for the pic8 plug board.
pic8.ptl
The PIC8 parts list (bill of materials).
Please note, that the two 2×20 male headers are solder onto the `back' of the plug (i.e. the side without the silk screen lettering.)

Issues

Any fabrication issues will be listed here.
