EMDP1 PIC28 Plug (Rev. A)
The PIC28 plug is used to program 28-pin and
40-pin PIC's. This includes the PIC16F64x,
PIC16F66x, PIC16C6x, PIC16C7x, PIC16C9x, PIC16F7x,
and PIC16F87x. It is likely that MicroChip will
add additional processors that adhere to this pin-out
as they continue to expand their PIC product line.
The PIC28 identifier is 0000 0000 0010.
| Proc. |
Pkg. |
Clk. |
Data |
Vpp |
Vdd (+5V) |
Vss (Gnd) |
LVP |
| 16F62x |
28 |
27 (39) |
28 (40) |
1 |
20 (32) |
8,19(31) |
24 (36) |
| 16F64x/66x, 16C6x/7x/9x, 16F7x |
28/(40) |
27 (39) |
28 (38), 26 (40) |
1 |
20 (32) |
8,19 (31) |
- |
| 16C6x/7x/9x, 16F64x/66x |
40 |
39 |
40 |
1 |
11,32 |
12,31 |
- |
| 16F87x |
40 |
39 |
40 |
1 |
11,32 |
12,31 |
36 |
| 16F7x |
40 |
39 |
40 |
1 |
11,32 |
12,31 |
- |
| Summary |
40 |
39 |
40 |
1 |
11, 32 |
8, 12, 31 |
36 |

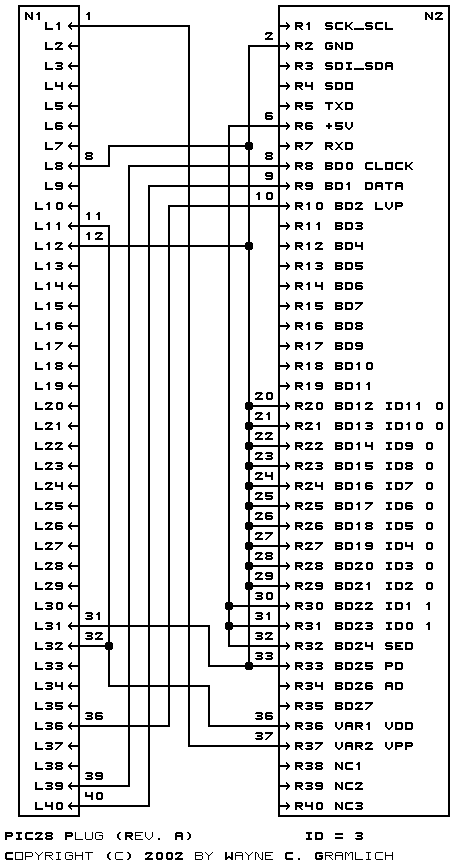

The schematic for the PIC Serial Adaptor is
shown below:
The
parts list is in a separate file.
The following files are available for the printed
circuit board:
-
-

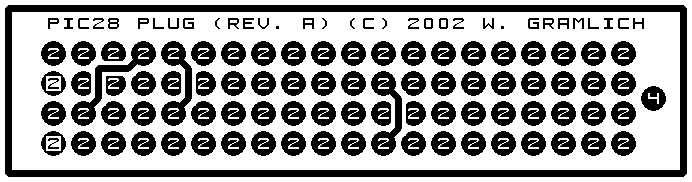

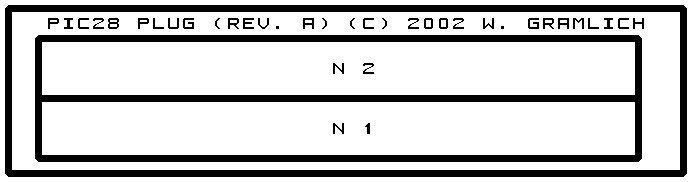

The PIC28 artwork (silk screen) layer.
The PIC28 back (component) layer.
The PIC28 front (solder) layer.
pic28.gal
The PIC28 RS274X `Gerber' file for the
pic28 plug artwork (silk screen) layer.
pic28.gbl
The PIC28 RS274X `Gerber' file for the
pic28 plug back (component) layer.
pic28.gtl
The PIC28 RS274X `Gerber' file for the
pic28 plug front (solder) layer.
pic28.gml
The PIC28 RS274X `Gerber' file for the
pic28 plug solder mask layer.
pic28.drl
The PIC28 `Excellon' drill file
for the pic28 plug board.
pic28.tol
The PIC28 drill file rack for the
pic28 plug board.
pic28.ptl
The PIC28 parts list (bill of materials).
Please note, for PIC serial plugs, the 2×17
male header goes on the back, and the soldering
occurs on the front; this is opposite of what
usually occurs.
Any fabrication issues will be listed here.
