This is revision A of the EMDP1 AVR41 plug and it is currently a work in progress.

EMDP1 AVR41 Plug (Rev. A)

Table of Contents

Introduction

The EMDP1 AVR41 plug is used to program the Atmel® the AT90S/LS8515 ATmega161, ATmega162, ATmega163, and ATmega8515 microcontrollers.

Schematic

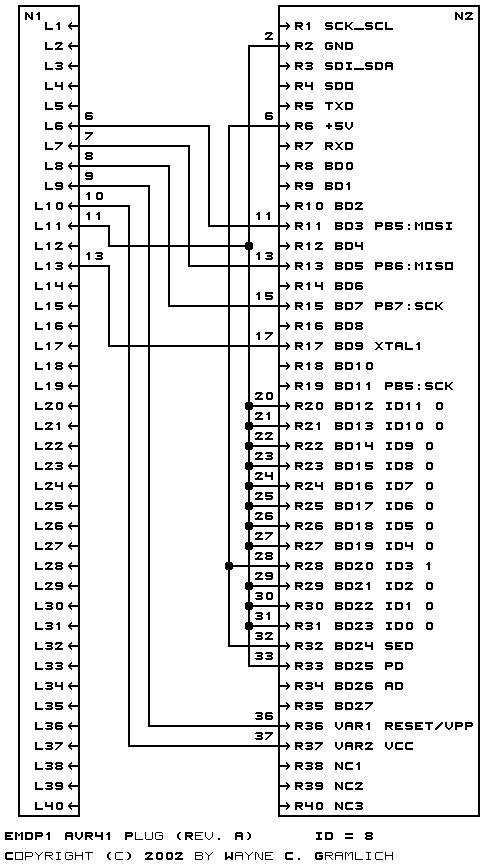

The schematic for this revision is shown below:

Revision A Schematic

Printed Circuit Board

The following printed circuit board files exist:

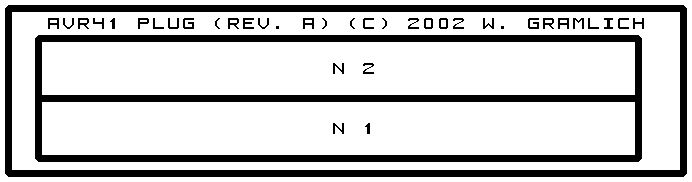

The artwork layer picture (PNG).

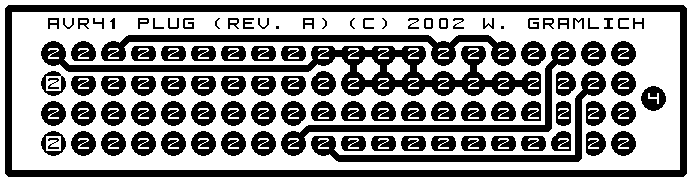

The back layer picture (PNG).

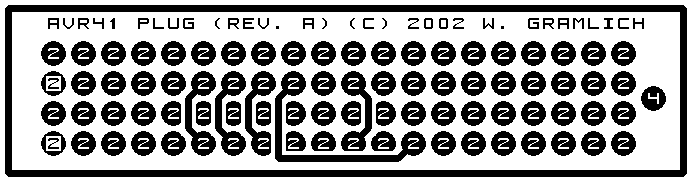

The front layer picture (PNG).
avr41.gal
The artwork Gerber (RS274X) file.
avr41.gbl
The back (solder side) Gerber (RS274X) file
avr41.gtl
The front (component side) Gerber (RS274X) file.
avr41.gml
The mask (both sides) Gerber RS274X) file.
avr41.drl
The drill (Excellon) file.
avr41.tol
The tool file that lists hole counts.

Issues

Any fabrication issues will be listed here.
