This is revision A of the EMDP1 AVR26 plug and it is currently a work in progress.

EMDP1 AVR26 Plug (Rev. A)

Table of Contents

• Table of Contents
• Introduction
• Schematic
• Printed Circuit Board
• Issues

Introduction

The EMDP1 AVR26 plug is used to program the Atmel^® ATtiny26 microcontroller.

Schematic

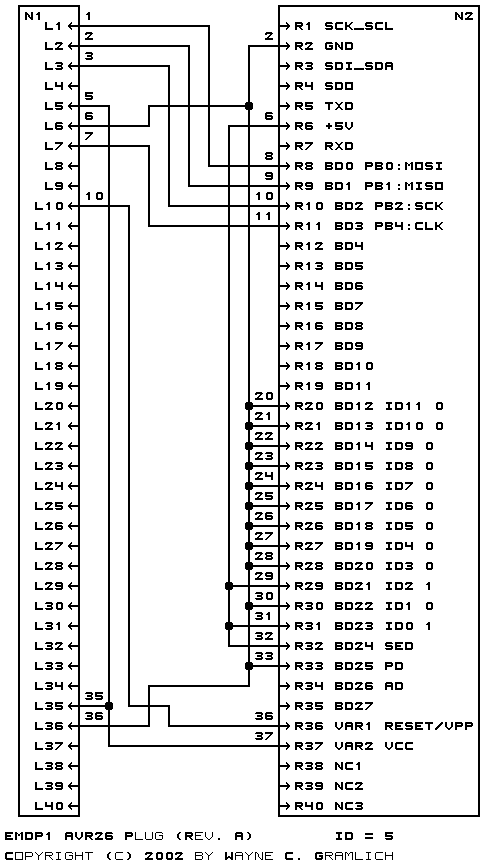

The schematic for this revision is shown below:

Printed Circuit Board

The following printed circuit board files exist:

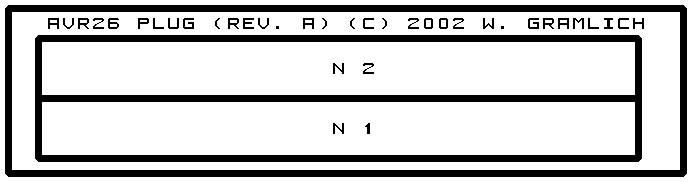

The artwork layer picture (PNG).

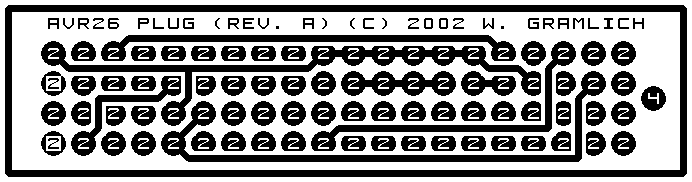

The back layer picture (PNG).

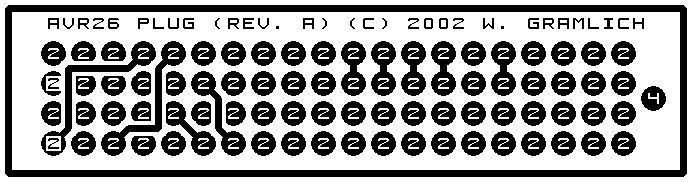

The front layer picture (PNG).

avr26.gal

The artwork Gerber (RS274X) file.

avr26.gbl

The back (solder side) Gerber (RS274X) file

avr26.gtl

The front (component side) Gerber (RS274X) file.

avr26.gml

The mask (both sides) Gerber RS274X) file.

avr26.drl

The drill (Excellon) file.

avr26.tol

The tool file that lists hole counts.

Issues

Any fabrication issues will be listed here.
