This is revision A of the PIC_Serial Adaptor Board Plug8 Plug and it is currently a work in progress.

EMDP1 PIC Serial Adaptor Plug8 Plug (Rev. A)

Table of Contents

Introduction

There is a PDF version of this file.

The PIC Serial Plug 8 is used to program 8-pin and 14-pin PIC's. This includes the PIC12C5xx, PIC12C67x, and PIC16C505.

The plug id for this plug is 0011 (= 3 decimal.)

Proc. Class Pkg. Clk. Data Vpp Vdd (+5V) Vss (Gnd) LVP
Class B B 8/14 38 39 4 1 40 -
12C5xx,12C67x B 8 6 (38) 7 (39) 4 1 8 (40) -
16C505 B 14 12 (38) 13 (39) 4 1 14 (40) -

Schematic

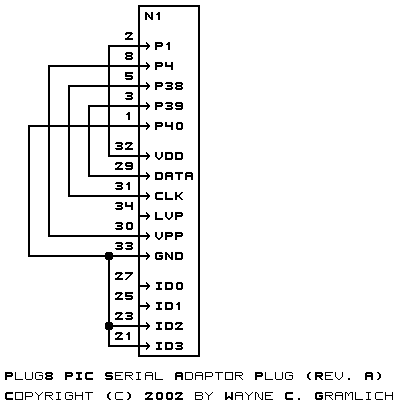

The schematic for the PIC Serial Adaptor is shown below:
PIC Serial Adaptor Plug8 Plug Schematic

The parts list is in a separate file.

Printed Circuit Board

The following files are available for the printed circuit board:

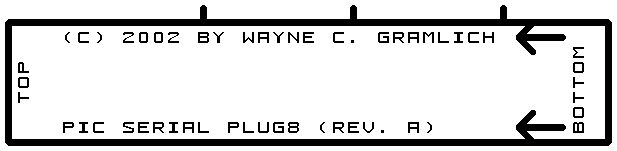

The Plug8 artwork (silk screen) layer.
The Plug8 back (component) layer.
The Plug8 front (solder) layer.
plug8.gal
The Plug8 RS274X `Gerber' file for the plug8 plug artwork (silk screen) layer.
plug8.gbl
The Plug8 RS274X `Gerber' file for the plug8 plug back (component) layer.
plug8.gtl
The Plug8 RS274X `Gerber' file for the plug8 plug front (solder) layer.
plug8.gml
The Plug8 RS274X `Gerber' file for the plug8 plug solder mask layer.
plug8.drl
The Plug8 `Excellon' drill file for the plug8 plug board.
plug8.tol
The Plug8 drill file rack for the plug8 plug board.
plug8.ptl
The Plug8 parts list (bill of materials).
Please note, for PIC serial plugs, the 2×17 male header goes on the back, and the soldering occurs on the front; this is opposite of what usually occurs.

Issues

Any fabrication issues will be listed here.


Copyright (c) 2002 by Wayne C. Gramlich. All rights reserved.
