EMDP1 PIC Serial Adaptor Plug28 Plug (Rev. A)
There is a
PDF version of this file.
The PIC Serial Plug 28 is used to program 28-pin and
40-pin PIC's. This includes the PIC16F62x, PIC16F64x,
PIC16F66x, PIC16C6x, PIC16C7x, PIC16C9x, PIC16F7x,
and PIC16F87x. It is likely that MicroChip will
add additional processors that adhere to this pin-out
as they continue to expand their PIC product line.
The plug id for this plug is 0001 (=1).
| Proc. |
Class |
Pkg. |
Clk. |
Data |
Vpp |
Vdd (+5V) |
Vss (Gnd) |
LVP |
| Class A |
A |
28/40 |
39 |
40 |
1 |
11, 32 |
8, 12, 31 |
36 |
| 16F62x |
A |
28 |
27 (39) |
28 (40) |
1 |
20 (32) |
8,19(31) |
24 (36) |
| 16F64x/66x, 16C6x/7x/9x, 16F7x |
A |
28/(40) |
27 (39) |
28 (38), 26 (40) |
1 |
20 (32) |
8,19 (31) |
- |
| 16C6x/7x/9x, 16F64x/66x |
A |
40 |
39 |
40 |
1 |
11,32 |
12,31 |
- |
| 16F87x |
A |
40 |
39 |
40 |
1 |
11,32 |
12,31 |
36 |
| 16F7x |
A |
40 |
39 |
40 |
1 |
11,32 |
12,31 |
- |

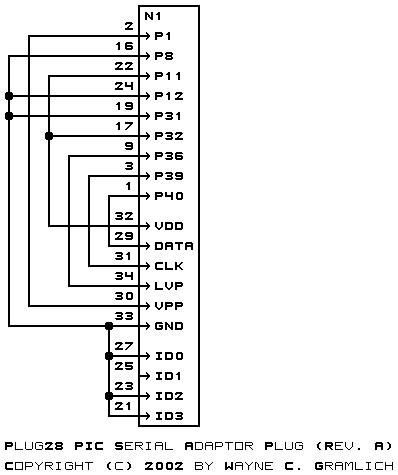

The schematic for the PIC Serial Adaptor is
shown below:
The
parts list is in a separate file.
The following files are available for the printed
circuit board:
-
-

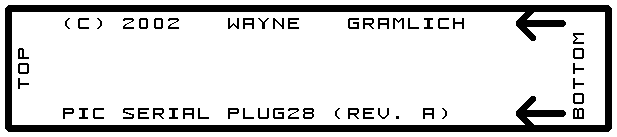

The Plug28 artwork (silk screen) layer.

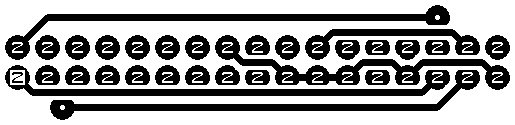

The Plug28 back (component) layer.

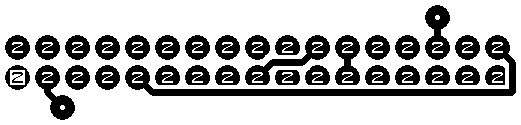

The Plug28 front (solder) layer.
plug28.gal
The Plug28 RS274X `Gerber' file for the
plug28 plug artwork (silk screen) layer.
plug28.gbl
The Plug28 RS274X `Gerber' file for the
plug28 plug back (component) layer.
plug28.gtl
The Plug28 RS274X `Gerber' file for the
plug28 plug front (solder) layer.
plug28.gml
The Plug28 RS274X `Gerber' file for the
plug28 plug solder mask layer.
plug28.drl
The Plug28 `Excellon' drill file
for the plug28 plug board.
plug28.tol
The Plug28 drill file rack for the
plug28 plug board.
plug28.ptl
The Plug28 parts list (bill of materials).
Please note, for PIC serial plugs, the 2×17
male header goes on the back, and the soldering
occurs on the front; this is opposite of what
usually occurs.
Any fabrication issues will be listed here.
