This is revision A of the GAL Adaptor Board and it is currently a work in progress.

EMDP1 GAL Adaptor Board (Rev. A)

Table of Contents

Introduction

The GAL adaptor is used to program namely the 16V8, 18V10, 20V8, 22V10, 20XV10, 20RA10, 6001, 6002, and 26CV12 GAL's.

Schematic

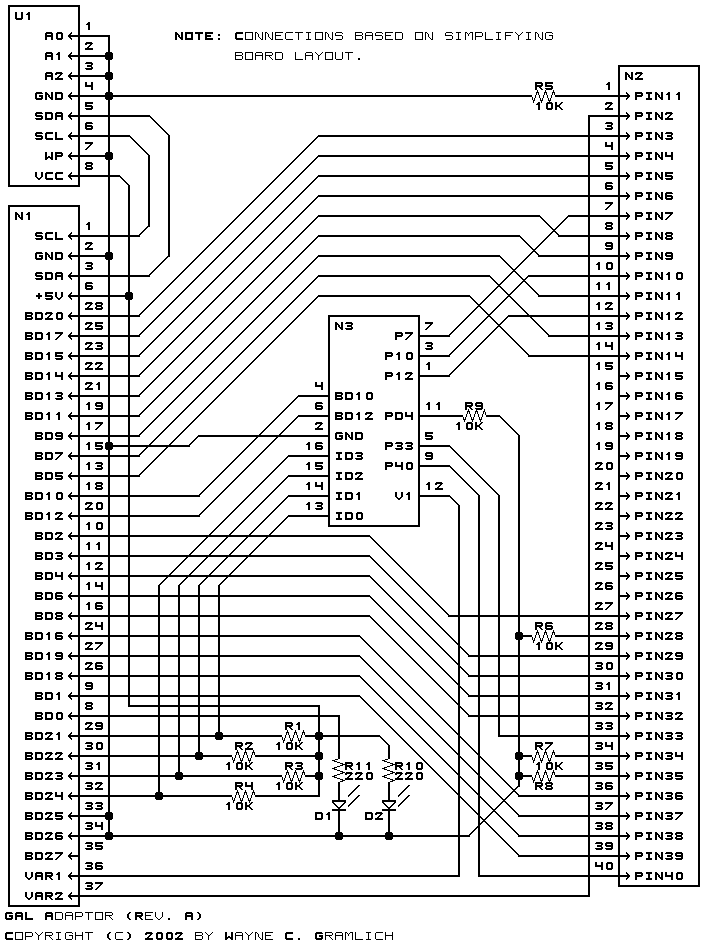

The schematic for this revision is shown below:

Revision A Schematic
Note, the pin assignments were all picked to make the board layout easy. Thus, the seemingly random order of some of the pin assignments.

The N1 connector is assigned as follows:

Pin Name Connected To
1 SCL U1-SCL
2 GND Ground
3 SDA U1-SDA
4
5
6 +5V Vcc
7
8 BD0 PROG_LED
9 BD1 ZIF40 Pin 39
10 BD2 ZIF40 Pin 27
11 BD3 ZIF40 Pin 29
12 BD4 ZIF40 Pin 30
13 BD5 ZIF40 Pin 14
14 BD6 ZIF40 Pin 31
15 BD7 ZIF40 Pin 13
16 BD8 ZIF40 Pin 32
17 BD9 ZIF40 Pin 11
18 BD10 Plug Pin 4
19 BD11 ZIF40 Pin 9
20 BD12 Plug Pin 6
21 BD13 ZIF40 Pin 8
22 BD14 ZIF40 Pin 6
23 BD15 ZIF40 Pin 5
24 BD16 ZIF40 Pin 36
25 BD17 ZIF40 Pin 4
26 BD18 ZIF40 Pin 38
27 BD19 ZIF40 Pin 37
28 BD20 ZIF40 Pin 3
29 BD21 Plug Pin 13 (ID0)
30 BD22 Plug Pin 14 (ID1)
31 BD23 Plug Pin 15 (ID2)
32 BD24 Plug Pin 16 (ID3)
33 BD25 Ground (ROMID0)
34 BD26 Ground (ROMID1)
35 (BD27) No Connection
36 VAR1 Plug Pin 12 (V1)
37 VAR2 ZIF40 Pin 2
38
39
40

The plug, N3, has its pin assignments as shown below:

Pin Name Connected To
1 P12 ZIF40 Pin 12
2 GND Ground
3 P10 ZIF40 Pin 10
4 BD10 N1 Pin 18
5 P33 ZIF40 Pin 33
6 BD12 N1 Pin 20
7 P7 ZIF40 Pin 7
8 NC1 No Connection
9 P40 ZIF40 Pin 40
10 NC2 No Connection
11 PD4 Pull Down 4
12 V1 N1 Pin 36 (VAR1)
13 ID0 N1 Pin 29 (BD21)
14 ID1 N1 Pin 30 (BD22)
15 ID2 N1 Pin 30 (BD23)
16 ID3 N1 Pin 30 (BD24)

Printed Circuit Board

The following printed circuit board files exist:

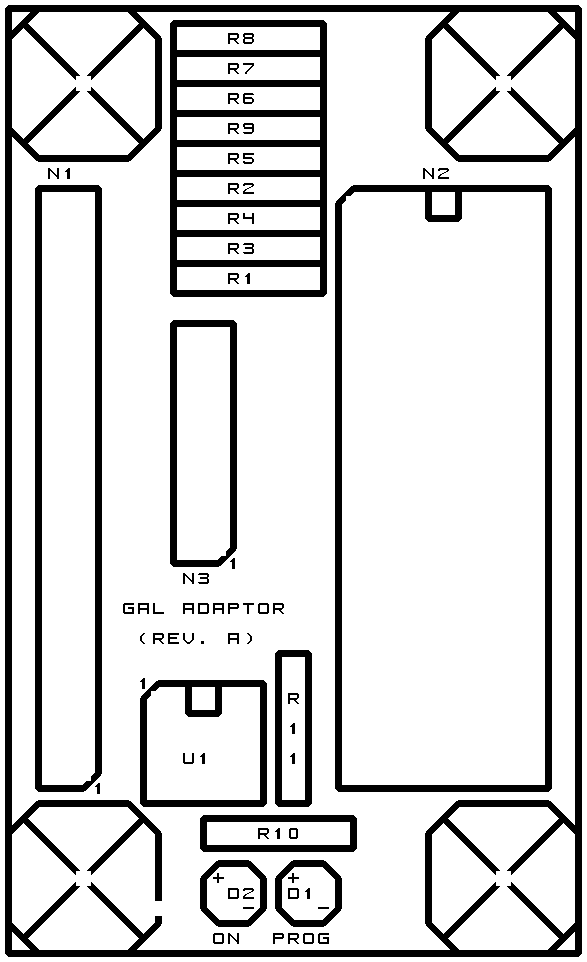

The artwork layer picture (PNG).

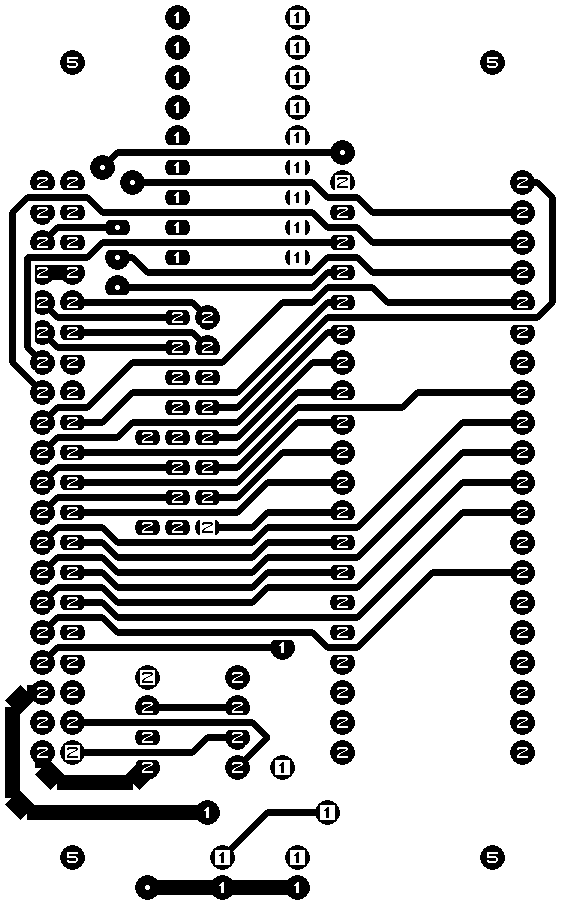

The back layer picture (PNG).

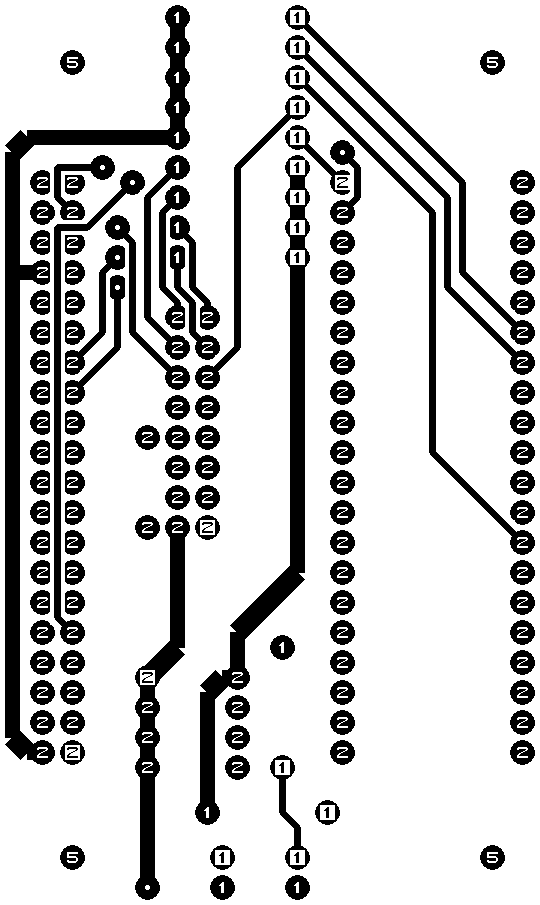

The front layer picture (PNG).
gal.gal
The artwork Gerber (RS274X) file.
gal.gbl
The back (solder side) Gerber (RS274X) file
gal.gtl
The front (component side) Gerber (RS274X) file.
gal.gml
The mask (both sides) Gerber RS274X) file.
gal.drl
The drill (Excellon) file.
gal.tol
The tool file that lists hole counts.

Issues

Any fabrication issues will be listed here.


Copyright (c) 2001-2002 by Wayne C. Gramlich. All rights reserved.
