This is revision A of the EPROM GAL Plug24 and it is currently a work in progress.
The EMDP1 GAL Plug24 plug is used to program the 20V8, 22V10, 20XV10, 20RA10, 6001, and 6002 GAL's.

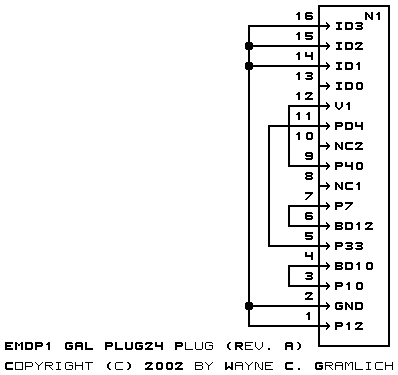

The schematic for this revision is shown below:
The following printed circuit board files exist:
The table below shows were each of the BD signals winds up:
Pin EMDP1 Name Connected To 20V8 22V10
20XV10
20RA106001
6002Chip Pin 1 SCL U1-SCL 2 GND Ground GND GND GND 12 3 SDA U1-SDA 4 5 6 +5V Vcc 7 8 BD0 PROG_LED 9 BD1 ZIF40 Pin 39 VIL VIL P/V- 23 10 BD2 ZIF40 Pin 27 11 BD3 ZIF40 Pin 29 STB- STB- STB- 13 12 BD4 ZIF40 Pin 30 VIL SDOUT SDOUT 14 13 BD5 ZIF40 Pin 14 14 BD6 ZIF40 Pin 31 SDOUT VIL VIL 15 15 BD7 ZIF40 Pin 13 16 BD8 ZIF40 Pin 32 VIL VIL VIL 16 17 BD9 ZIF40 Pin 11 SDIN SDIN SDIN 11 18 BD10 Plug Pin 4 SCLK SCLK SCLK 10 19 BD11 ZIF40 Pin 9 RA5 RA5 RA5 9 20 BD12 Plug Pin 6 VIL RA3 RA3 7 21 BD13 ZIF40 Pin 8 RA4 RA4 RA4 8 22 BD14 ZIF40 Pin 6 VIL RA2 RA2 6 23 BD15 ZIF40 Pin 5 RA3 RA1 RA1 5 24 BD16 ZIF40 Pin 36 VIL VIL VIL 20 25 BD17 ZIF40 Pin 4 RA2 RA0 RA0 4 26 BD18 ZIF40 Pin 38 P/V- VIL VIL 22 27 BD19 ZIF40 Pin 37 RA0 VIL VIL 21 28 BD20 ZIF40 Pin 3 RA1 P/V- VIL 3 29 BD21 Plug Pin 13 (ID0) Float 30 BD22 Plug Pin 14 (ID1) Ground 31 BD23 Plug Pin 15 (ID2) Ground 32 BD24 Plug Pin 16 (ID3) Ground 33 BD25 Ground 34 BD26 Ground 35 BD27 36 VAR1 Plug Pin 12 (V1) VCC VCC VCC 24 37 VAR2 ZIF40 Pin 2 EDIT EDIT EDIT 2 38 39 40
The table below shows were each of the pins goes:
Pin 20V8 22V10
20XV10
20RA106001
6002BDx 1 VIL VIL VIL PD0 2 EDIT EDIT EDIT VAR2 3 RA1 P/V- VIL BD20 4 RA2 RA0 RA0 BD17 5 RA3 RA1 RA1 BD15 6 VIL RA2 RA2 BD14 7 VIL RA3 RA3 BD12 8 RA4 RA4 RA4 BD13 9 RA5 RA5 RA5 BD11 10 SCLK SCLK SCLK BD10 11 SDIN SDIN SDIN BD9 12 GND GND GND GND 13 STB- STB- STB- BD3 14 VIL SDOUT SDOUT BD4 15 SDOUT VIL VIL BD6 16 VIL VIL VIL BD8 17 VIL VIL VIL PD4 18 VIL VIL VIL PD2 19 VIL VIL VIL PD3 20 VIL VIL VIL BD16 21 RA0 VIL VIL BD19 22 P/V- VIL VIL BD18 23 VIL VIL P/V- BD1 24 VCC VCC VCC VAR1
Any fabrication issues will be listed here.
