This is revision A of the EPROM 64K Plug and it is currently a work in progress.

EMDP1 EPROM 64K Plug (Rev. A)

Table of Contents

Introduction

The EMDP1 EPROM 64K plug is used to program the 27C512 (64K×8) EPROM.

Schematic

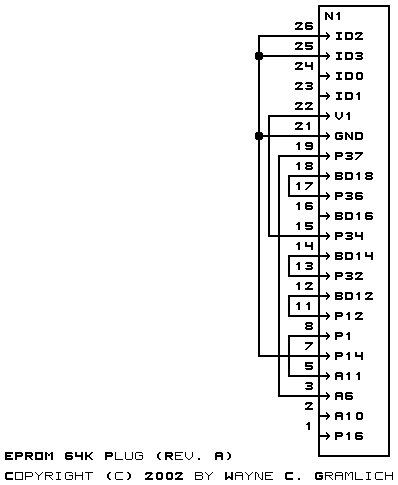

The schematic for this revision is shown below:

Revision A Schematic

Printed Circuit Board

The following printed circuit board files exist:

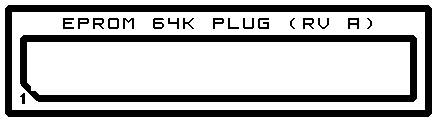

The artwork layer picture (PNG).
The back layer picture (PNG).

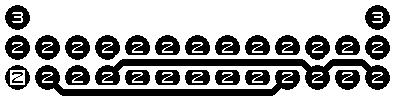

The front layer picture (PNG).
plug64k.gal
The artwork Gerber (RS274X) file.
plug64k.gbl
The back (solder side) Gerber (RS274X) file
plug64k.gtl
The front (component side) Gerber (RS274X) file.
plug64k.gml
The mask (both sides) Gerber RS274X) file.
plug64k.drl
The drill (Excellon) file.
plug64k.tol
The tool file that lists hole counts.

Tables

The table below shows were each of the BD signals winds up:

Pin EMDP1 Name Connected To Chip Name Chip Pin
1 SCL U1-SCL
2 GND Ground GND 14
3 SDA U1-SDA
4
5
6 +5V Vcc
7
8 BD0 ZIF40 Pin 25
9 BD1 ZIF40 Pin 27 O3 15
10 BD2 ZIF40 Pin 26
11 BD3 ZIF40 Pin 28 O4 16
12 BD4 Strobe A6-A11
13 BD5 ZIF40 Pin 15; U2-A4; U3-A10 A4 (via U2-A4) 6
14 BD6 ZIF40 Pin 30 O6 18
15 BD7 ZIF40 Pin 13; U2-A3; U3-A9 O2, A5 (via U2-A3), A2 (via U3-A9) 13, 5, 8
16 BD8 ZIF40 Pin 31 O7 19
17 BD9 ZIF40 Pin 29; U2-A5; U3-A11 O5, A3 (via U2-A5), A15 (via U3-A11) 17, 7, 1
18 BD10 Strobe U2-(A0-A5)
19 BD11 ZIF40 Pin 11; U2-A2; U3-A8 O0, A6 (via U2-A2), A11 (via U3-A8) 11, 4, 23
20 BD12 Plug BD12 O1 12
21 BD13 ZIF40 Pin 10; U2-A1; U3-A7 A0, A7 (via U2-A1), A13 (via U3-A7) 10, 3, 26
22 BD14 Plug BD14 CE 20
23 BD15 ZIF40 Pin 9; U2-A0; U3-A6 A1, A12 (via U2-A0), A8 (via U3-A6) 9, 2, 25
24 BD16 Plug BD16
25 BD17 Program LED
26 BD18 Plug BD18 A9 24
27 BD19 ZIF40 Pin 39 A14/PGM 27
28 BD20 ZIF40 Pin 33 A10 21
29 BD21 Plug ID0
30 BD22 Plug ID1
31 BD23 Plug ID2
32 BD24 Plug ID3
33 BD25 Ground
34 BD26 Ground
35 BD27
36 VAR1 Plug V1 OE/V 22
37 VAR2 ZIF40 Pin 40 VCC 28
38
39
40

The table below shows were each of the pins goes:

Pin Name BDx
1 A15 (via U3-A11) BD9
2 A12 (via U2-A0) BD15
3 A7 (via U2-A1) BD13
4 A6 (via U2-A2) BD11
5 A5 (via U2-A3) BD7
6 A4 (via U2-A4) BD5
7 A3 (via U2-A5) BD9
8 A2 (via U3-A9) BD7
9 A1 BD15
10 A0 BD13
11 O0 BD11
12 O1 BD12
13 O2 BD7
14 GND GND
15 O3 BD1
16 O4 BD3
17 O5 BD9
18 O6 BD6
19 O7 BD8
20 CE BD14
21 A10 BD20
22 OE/V VAR1
23 A11 (via U3-A8) BD11
24 A9 BD18
25 A8 (via U3-A6) BD15
26 A13 (via U3-A7) BD13
27 A14/PGM BD19
28 VCC VAR2

Issues

Any fabrication issues will be listed here.
